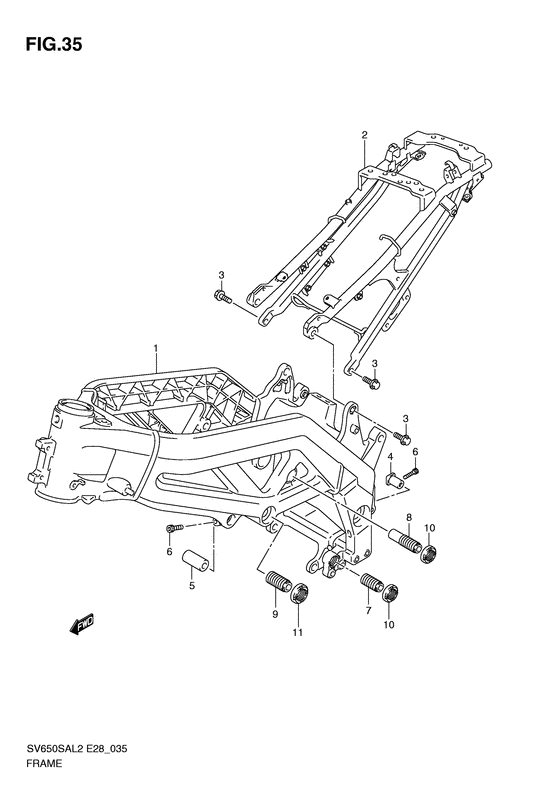

Frame Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-17G20-YAP FRAME(BLACK)Frame (black); |
41100-17G20-YAP |
US $3,787.44 |
||
|
2
|
2
41200-16G40-YAP RAIL,SEAT(BLACK)Rail, seat (black); |
41200-16G40-YAP |
from US $887.04 |
||
|
3
|
3
41233-18G00-000
Bolt, seat rail
|
41233-18G00-000 |
— | ||
| replacement | |||||
|
3
|
3
41233-18G20-000 BOLT,SEAT RAIL |
41233-18G20-000 |
from US $3.50 |
||
|
4
|
4
41941-19F01-000 SPACER,MOUNTING RR UPR,RSpacer, adjuster upper Spacer, crankcase adjust upper; |
41941-19F01-000 |
from US $18.95 |
||
|
5
|
5
41942-02F00-000 SPACER,ENG HEAD MTG RR,LSpacer, head front |
41942-02F00-000 |
from US $13.51 |
||
|
6
|
6
09106-08170-000 BOLT(8X32)Bolt (8x32); |
09106-08170-000 |
from US $3.24 |
||
|
7
|
7
41921-16G00-000 BOLT,CASE LWR & RR HEAD ADJBolt, adjuster lower Bolt, cran case adjust lwr; |
41921-16G00-000 |
US $18.69 |
||
| replacement | |||||
|
7
|
7
41921-16G01-000 Bolt,crank Case Adjust LwrBolt, cran case adjust lwr; |
41921-16G01-000 |
US $11.52 |
||
|
8
|
8
41921-17G00-000 BOLT,ENGINE MOUNTING RR,L |
41921-17G00-000 |
from US $21.90 |
||
|
9
|
9
41923-16G00-000 BOLT,CRANK CASE ADJUST CTRBolt, adjuster center Bolt, crank case adjust ctr; |
41923-16G00-000 |
from US $14.68 |
||
|
10
|
10
41922-33E00-000 NUT,CRANK CASE ADJUST BOLTNut, adjuster lower Nut, case lwr & rr head adj; |
41922-33E00-000 |
from US $11.68 |
||
|
11
|
11
41922-19F00-000
Nut, crankcase adjust
Nut, crankcase adjust ctr; |
41922-19F00-000 |
— | ||
| replacement | |||||
|
11
|
11
41922-19F20-000 NUT,CRANK CASE ADJUST CTRNut, crankcase adjust ctr; |
41922-19F20-000 |
from US $8.87 |
||
