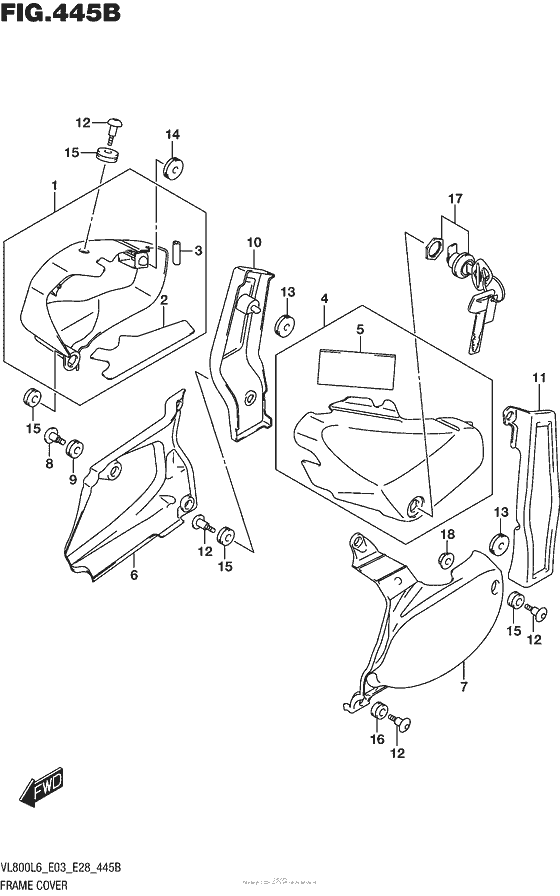

Frame Cover (Vl800L6 E28) Diagram Suzuki VL800 Boulevard C50
- Year
- 2016
- Model code
- VL800L6
- Sales region
- USA/ Canada
- Engine Capacity
- 800
- Model
- VL800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1-1
|
1-1
47110-43H10-YVB COVER COMP,SIDE,R |
47110-43H10-YVB |
from US $168.18 |
||
|
1-2
|
1-2
47110-43H10-YWW COVER COMP,SIDE,R |
47110-43H10-YWW |
from US $168.18 |
||
|
2
|
2
47166-41F00-000 SHIELD,FRAME COVER |
47166-41F00-000 |
from US $8.39 |
||
|
3
|
3
94631-35F00-000 MOLDING |
94631-35F00-000 |
from US $3.53 |
||
|
4-1
|
4-1
47210-43H10-YVB COVER COMP,SIDE,L |
47210-43H10-YVB |
from US $168.18 |
||
|
4-2
|
4-2
47210-43H10-YWW COVER COMP,SIDE,L |
47210-43H10-YWW |
from US $168.18 |
||
|
5
|
5
47217-41F00-000 CUSHION,LUGGAGE BOX |
47217-41F00-000 |
from US $4.64 |
||
|
6
|
6
47130-41F00-000 COVER,SIDE LWR,R |
47130-41F00-000 |
from US $137.63 |
||
|
7
|
7
47231-41F00-000 COVER,SIDE LWR,L |
47231-41F00-000 |
from US $218.96 |
||
|
8
|
8
47133-43H00-000 SCREW,SIDE COVER LWR,R |
47133-43H00-000 |
from US $3.46 |
||
|
9
|
9
09320-08021-000
CUSHION
|
09320-08021-000 |
— | ||
| replacement | |||||
|
9
|
9
09320-08510-000 Cushion(8.5X20X8) |
09320-08510-000 |
from US $1.82 |
||
|
10
|
10
47141-41F01-019 COVER,SIDE RR,R |
47141-41F01-019 |
from US $65.87 |
||
|
11
|
11
47241-41F00-019 COVER,SIDE RR,L |
47241-41F00-019 |
from US $51.04 |
||
|
12
|
12
09139-06126-000 SCREW(6X20)Screw, brace |
09139-06126-000 |
from US $1.82 |
||
|
13
|
13
09320-08018-000 CUSHIONCushion, lh |
09320-08018-000 |
from US $2.08 |
||
|
14
|
14
09320-08028-000 CUSHIONGrommet |
09320-08028-000 |
from US $2.13 |
||
|
15
|
15
09320-09501-000 CUSHION |
09320-09501-000 |
from US $1.93 |
||
|
16
|
16
09320-09045-000
CUSHION
|
09320-09045-000 |
— | ||
| replacement | |||||
|
16
|
16
09320-09062-000
New Genuine Part
|
09320-09062-000 |
— | ||
|
17
|
17
95700-07860-000
LOCK SET,COVER
|
95700-07860-000 |
— | ||
| replacement | |||||
|
17
|
17
95700-07861-000 Lock Set,cover |
95700-07861-000 |
US $94.71 |
||
|
18
|
18
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
