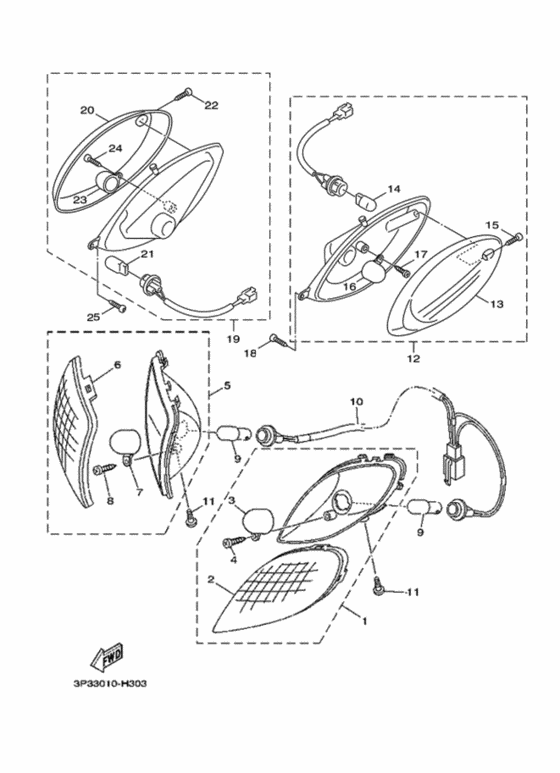

Flasher light Diagram Yamaha CE50 Jog ZR
- Year
- 2011
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 3P38
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CE50ZR
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
5SW-H3310-00-00 Front Flasher Light Assy 1 |
5SW-H3310-00-00 |
US $33.96 |
||
2
|
2
5SW-H3312-00-00 Lens, Flasher.レンズ,フラツシヤ; |
5SW-H3312-00-00 |
US $9.13 |
||
3
|
3
5SW-H4385-00-00 Cap,1.キヤツプ 1; |
5SW-H4385-00-00 |
US $4.79 |
||
4
|
4
5SW-H4726-01-00 Screw.スクリユ; |
5SW-H4726-01-00 |
US $1.50 |
||
5
|
5
5SW-H3320-00-00 Front Flasher Light Assy 2 |
5SW-H3320-00-00 |
US $33.96 |
||
6
|
6
5SW-H3322-00-00 Lens, Flasher 2.レンズ,フラツシヤ 2; |
5SW-H3322-00-00 |
US $9.13 |
||
7
|
7
5SW-H4386-00-00 Cap,2.キヤツプ 2; |
5SW-H4386-00-00 |
US $4.79 |
||
8
|
8
5SW-H4726-01-00 Screw.スクリユ; |
5SW-H4726-01-00 |
US $1.50 |
||
9
|
9
3XG-H3311-00-00 Bulb (12V-10W)バルブ,フラツシヤ ; 12V−10W |
3XG-H3311-00-00 |
US $3.44 |
||
replacement | |||||
9
|
9
4AC-H3311-00-00 Bulb, Flasherバルブ,フラツシヤ ; 12V−10W |
4AC-H3311-00-00 |
US $3.09 |
||
10
|
10
5SU-H331E-01-00 Cord Assyコードアセンブリ; |
5SU-H331E-01-00 |
US $10.62 |
||
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ,トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
replacement | |||||
11
|
11
90167-05077-00 Screw, Tapping(4Tv)スクリユ,トラスヘツドタツピング; |
90167-05077-00 |
from US $1.65 |
||
12
|
12
3P3-H3330-10-00 Rear Flasher Light Assy 1 |
3P3-H3330-10-00 |
US $45.43 |
||
13
|
13
1P4-H3332-00-00 Lens, Flasher.レンズ,フラツシヤ; |
1P4-H3332-00-00 |
US $10.02 |
||
14
|
14
3XG-H3331-00-00 Bulb, Flasher (12V-10W).バルブ,フラツシヤ ; 12V−10W |
3XG-H3331-00-00 |
US $4.34 |
||
15
|
15
1P4-H3333-00-00 Screw, Lens Fitting.スクリユ,レンズフイツテイング; |
1P4-H3333-00-00 |
US $1.50 |
||
16
|
16
3P3-H3365-00-00 Cap.キヤツプ; 参照 |
3P3-H3365-00-00 |
US $4.04 |
||
17
|
17
3P3-H4726-00-00 Screw.スクリユ; 参照 |
3P3-H4726-00-00 |
US $1.28 |
||
18
|
18
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ,トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
replacement | |||||
18
|
18
90167-05077-00 Screw, Tapping(4Tv)スクリユ,トラスヘツドタツピング; |
90167-05077-00 |
from US $1.65 |
||
19
|
19
3P3-H3340-10-00 Rear Flasher Light Assy 2 |
3P3-H3340-10-00 |
US $45.43 |
||
20
|
20
1P4-H3342-00-00 Lens, Flasher 2.レンズ,フラツシヤ 2; |
1P4-H3342-00-00 |
US $10.02 |
||
21
|
21
3XG-H3331-00-00 Bulb, Flasher (12V-10W).バルブ,フラツシヤ ; 12V−10W |
3XG-H3331-00-00 |
US $4.34 |
||
22
|
22
1P4-H3333-00-00 Screw, Lens Fitting.スクリユ,レンズフイツテイング; |
1P4-H3333-00-00 |
US $1.50 |
||
23
|
23
3P3-H3365-00-00 Cap.キヤツプ; 参照 |
3P3-H3365-00-00 |
US $4.04 |
||
24
|
24
3P3-H4726-00-00 Screw.スクリユ; 参照 |
3P3-H4726-00-00 |
US $1.28 |
||
25
|
25
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ,トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
replacement | |||||
25
|
25
90167-05077-00 Screw, Tapping(4Tv)スクリユ,トラスヘツドタツピング; |
90167-05077-00 |
from US $1.65 |
