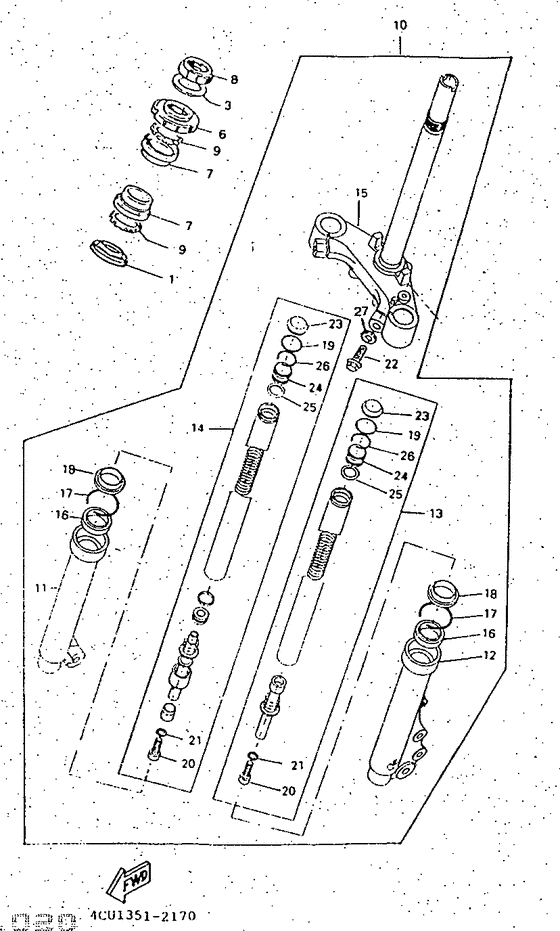

Front fork Diagram Yamaha CW50 BW'S
- Year
- 1997
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4VVB
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F3414-00-00
Race, Ball 4
|
4SB-F3414-00-00 |
— | ||
|
03
|
03
4SB-F3427-00-00
Washer
|
4SB-F3427-00-00 |
— | ||
|
05
|
05
4VV-F3394-00-00
Bolt, Special
|
4VV-F3394-00-00 |
— | ||
|
06
|
06
4SB-F3411-00-00
Race, Ball 1
|
4SB-F3411-00-00 |
— | ||
|
07
|
07
4SB-F3412-00-00
Race, Ball 2
|
4SB-F3412-00-00 |
— | ||
|
08
|
08
4SB-F3453-00-00
Nut, Fitting 1
|
4SB-F3453-00-00 |
— | ||
|
09
|
09
4SB-F3812-00-00
Plane Bearing, Steering
|
4SB-F3812-00-00 |
— | ||
|
10
|
10
4VV-F3100-01-00
Front Fork Assy
|
4VV-F3100-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
4CU-F3136-20-00
Tube, Outer (Right)
|
4CU-F3136-20-00 |
— | ||
|
12
|
12
4CU-F3126-20-00
Tube, Outer (Left)
|
4CU-F3126-20-00 |
— | ||
|
13
|
13
4CU-F3110-00-00
Inner Tube Comp.1
|
4CU-F3110-00-00 |
— | ||
|
14
|
14
4CU-F3120-00-00
Inner Tube Comp.2
|
4CU-F3120-00-00 |
— | ||
|
15
|
15
4VV-F3340-00-00
Under Bracket Comp
|
4VV-F3340-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4VV-F3340-01-00
Under Bracket Comp
|
4VV-F3340-01-00 |
— | ||
|
16
|
16
4CU-F3145-00-00
Oil Seal
|
4CU-F3145-00-00 |
— | ||
|
17
|
17
4CU-F3156-00-00
Ring, Snap
|
4CU-F3156-00-00 |
— | ||
|
18
|
18
4CU-F3144-00-00
Seal, Dust
|
4CU-F3144-00-00 |
— | ||
|
19
|
19
4CU-F3153-00-00
Ring, Snap
|
4CU-F3153-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4PC-F3153-00-00
Clip
|
4PC-F3153-00-00 |
— | ||
|
20
|
20
4CU-F3181-00-00
Bolt (M8X25)
|
4CU-F3181-00-00 |
— | ||
|
21
|
21
4CU-F3165-00-00
Washer, Felt
|
4CU-F3165-00-00 |
— | ||
|
23
|
23
4CU-F3154-00-00
Cap
|
4CU-F3154-00-00 |
— | ||
|
24
|
24
4CU-F3111-00-00
Bolt, Cap
|
4CU-F3111-00-00 |
— | ||
|
25
|
25
4CU-F3147-00-00
O-Ring
|
4CU-F3147-00-00 |
— | ||
|
26
|
26
4CU-F3183-00-00
Circlip
|
4CU-F3183-00-00 |
— | ||
|
27
|
27
4VV-F3392-00-00
Washer, Special
|
4VV-F3392-00-00 |
— | ||
|
28
|
28
3VL-H5111-00-00
Reflector, Front 1
No illustred |
3VL-H5111-00-00 |
— | ||
