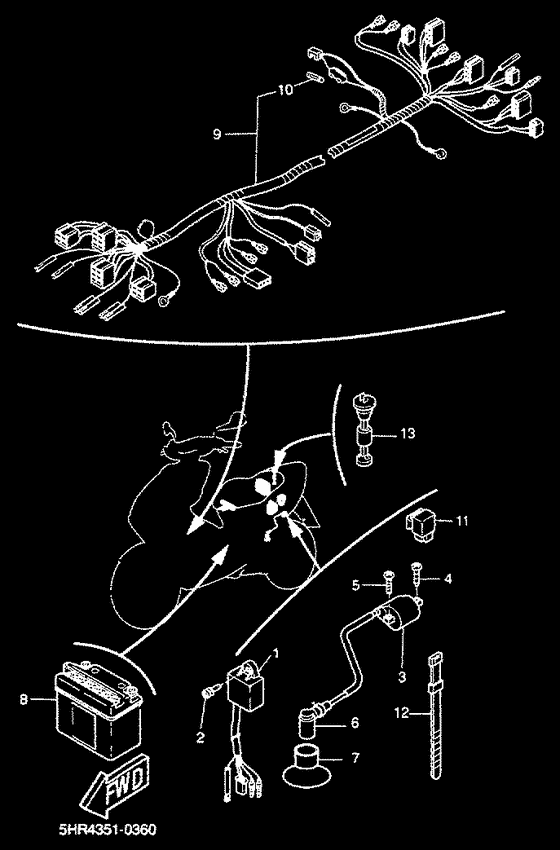

Electrical2 Diagram Yamaha CW50 BW'S Next Generation
- Year
- 2001
- Model code
- 5FXM
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-85540-10-00
C.d.i. Unit Assy
|
3KJ-85540-10-00 |
— | ||
| replacement | |||||
|
01
|
01
3KJ-H5540-00-00
Cdi Unit Assy
|
3KJ-H5540-00-00 |
— | ||
|
02
|
02
90154-06X02-00 Screw, Binding |
90154-06X02-00 |
US $8.38 |
||
|
03
|
03
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
| replacements | |||||
|
03
|
03
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
03
|
03
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
04
|
04
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.65 |
||
|
05
|
05
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.05 |
||
|
06
|
06
3WG-H2370-10-00 Plug Cap Assy |
3WG-H2370-10-00 |
from US $23.20 |
||
| replacement | |||||
|
06
|
06
SPC-LB05F-00-00 Spark Plugcap - Ngk Lb05F |
SPC-LB05F-00-00 |
US $22.34 |
||
|
07
|
07
3WG-H2372-00-00 Seal, Plug Cap |
3WG-H2372-00-00 |
from US $3.67 |
||
|
08
|
08
9079R-24278-00
Battery (Yb4L-B)
(ap) |
9079R-24278-00 |
— | ||
|
09
|
09
5FX-H2590-20-00
Wire Harness Assy
|
5FX-H2590-20-00 |
— | ||
| replacement | |||||
|
09
|
09
5FX-H2590-29-00
Wire Harness Assy
|
5FX-H2590-29-00 |
— | ||
|
10
|
10
27V-82151-00-00 Fuse |
27V-82151-00-00 |
from US $1.06 |
||
|
11
|
11
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $35.98 |
||
|
12
|
12
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.09 |
||
|
13
|
13
4SB-H5720-00-00
Oil Level Gauge Assy
|
4SB-H5720-00-00 |
— | ||
