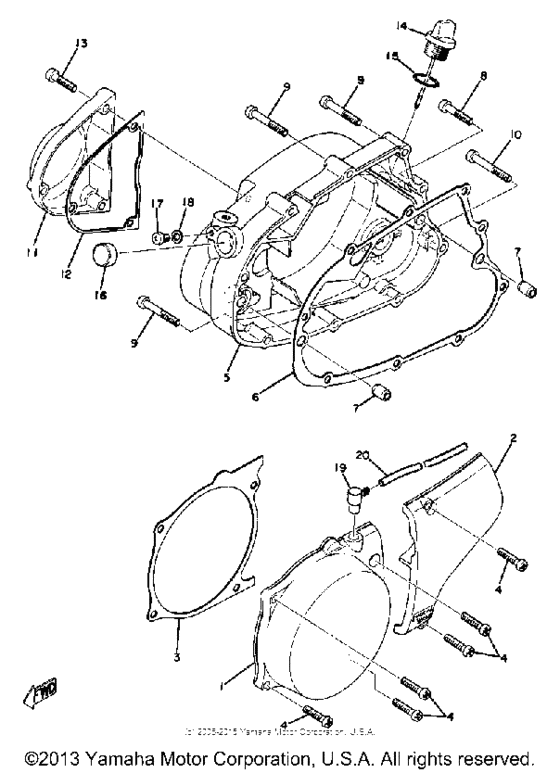

Crankcase cover Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
437-15411-01-00
Cover, Crankcase L
|
437-15411-01-00 |
— | ||
|
2
|
2
437-15421-00-00
Cover, Crankcase R
|
437-15421-00-00 |
— | ||
|
3
|
3
401-15455-00-00
Gasket 1
|
401-15455-00-00 |
— | ||
| replacement | |||||
|
3
|
3
401-15455-01-00
SPACER
|
401-15455-01-00 |
— | ||
|
4
|
4
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.20 |
||
|
5
|
5
437-15431-00-00
Cover, Crankcase 3
|
437-15431-00-00 |
— | ||
|
6
|
6
401-15451-00-00 Gasket, Crankcase Cover 1 |
401-15451-00-00 |
from US $13.45 |
||
| replacement | |||||
|
6
|
6
3UL-15451-00-00 Gasket, Crankcase Cover 1 |
3UL-15451-00-00 |
from US $12.96 |
||
|
7
|
7
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
7
|
7
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.94 |
||
|
7
|
7
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
8
|
8
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.20 |
||
|
9
|
9
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.05 |
||
|
10
|
10
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $3.59 |
||
|
11
|
11
437-15416-01-00
Cover, Oil Pump
|
437-15416-01-00 |
— | ||
|
12
|
12
3UL-15456-00-00 Gasket, Oil Pump Cover 1 |
3UL-15456-00-00 |
from US $5.62 |
||
| replacement | |||||
|
12
|
12
3UL-15456-01-00 Gasket, Oil Pump Cover 1 |
3UL-15456-01-00 |
from US $4.82 |
||
|
13
|
13
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.20 |
||
|
14
|
14
401-15362-00-00 Plug, Oil Level |
401-15362-00-00 |
from US $8.24 |
||
|
15
|
15
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.65 |
||
|
16
|
16
90338-20023-00 Plug |
90338-20023-00 |
from US $3.89 |
||
|
17
|
17
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.43 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
19
|
19
583-15371-00-00 Breather |
583-15371-00-00 |
from US $2.81 |
||
|
20
|
20
90446-07009-00 Hose |
90446-07009-00 |
US $3.74 |
||
| replacement | |||||
|
20
|
20
90446-07349-00 Hose(3Xp) |
90446-07349-00 |
from US $2.76 |
||
