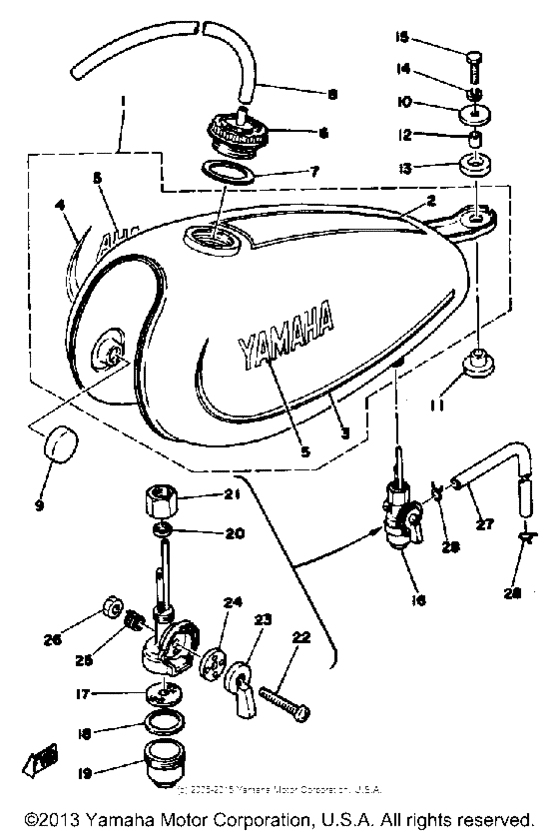

Fuel tank Diagram Yamaha DT100
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
538-24110-00-X8
Fuel Tank
|
538-24110-00-X8 |
— | ||
|
1
|
1
538-24110-00-X9
Fuel Tank
|
538-24110-00-X9 |
— | ||
|
2
|
2
2F5-24244-02-00
Graphic, Fuel Tnk 1
FOR CLN WHITE |
2F5-24244-02-00 |
— | ||
|
2
|
2
2F5-24244-10-00
Graphic, Fuel Tnk 1
FOR LEAVES GRN |
2F5-24244-10-00 |
— | ||
|
3
|
3
2F5-24245-02-00
Graphic, Fuel Tnk 2
FOR CLN WHITE |
2F5-24245-02-00 |
— | ||
|
3
|
3
2F5-24245-10-00
Graphic, Fuel Tnk 2
|
2F5-24245-10-00 |
— | ||
|
4
|
4
2F5-24246-02-00
Graphic, Fuel Tnk 3
FOR CLN WHITE |
2F5-24246-02-00 |
— | ||
|
4
|
4
2F5-24246-10-00
Graphic, Fuel Tnk 3
FOR LEAVES GRN |
2F5-24246-10-00 |
— | ||
|
5
|
5
388-24161-00-00
Emblem, Yamaha
|
388-24161-00-00 |
— | ||
| replacement | |||||
|
5
|
5
99244-00120-00 Emblem, Yamaha |
99244-00120-00 |
from US $9.55 |
||
|
6
|
6
322-24611-02-00 Body, Cap |
322-24611-02-00 |
from US $40.90 |
||
|
7
|
7
90430-35122-00 Gasket |
90430-35122-00 |
from US $4.19 |
||
|
8
|
8
90445-09282-00 Hose (L460) |
90445-09282-00 |
from US $3.74 |
||
| replacement | |||||
|
8
|
8
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.44 |
||
|
9
|
9
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $2.91 |
||
|
10
|
10
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.50 |
||
|
11
|
11
90480-14088-00 Grommet |
90480-14088-00 |
from US $1.80 |
||
|
12
|
12
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
12
|
12
90387-07020-00 Collar |
90387-07020-00 |
from US $1.80 |
||
|
13
|
13
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $1.80 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
15
|
15
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
16
|
16
367-24500-04-00 Fuel Cock Assembly 1 |
367-24500-04-00 |
from US $108.10 |
||
|
17
|
17
355-24515-00-00
Net, Filter 2
|
355-24515-00-00 |
— | ||
|
18
|
18
102-24522-01-00 Gasket |
102-24522-01-00 |
from US $4.94 |
||
|
19
|
19
122-24521-00-00
Cup, Filter
|
122-24521-00-00 |
— | ||
|
20
|
20
122-24532-00-00 Gasket |
122-24532-00-00 |
from US $4.79 |
||
|
21
|
21
603-24531-01-00
Nut
|
603-24531-01-00 |
— | ||
|
22
|
22
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
22
|
22
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.05 |
||
|
22
|
22
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.09 |
||
|
23
|
23
355-24524-01-00
Lever, Cock
|
355-24524-01-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
355-24523-00-00 Valve |
355-24523-00-00 |
from US $10.47 |
||
|
25
|
25
355-24518-00-00
Washer, Wave
|
355-24518-00-00 |
— | ||
|
26
|
26
95380-05600-00 Nut |
95380-05600-00 |
from US $1.43 |
||
|
27
|
27
90445-09066-00 Hose (L420) |
90445-09066-00 |
from US $5.98 |
||
| replacement | |||||
|
27
|
27
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.14 |
||
|
28
|
28
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.65 |
||
