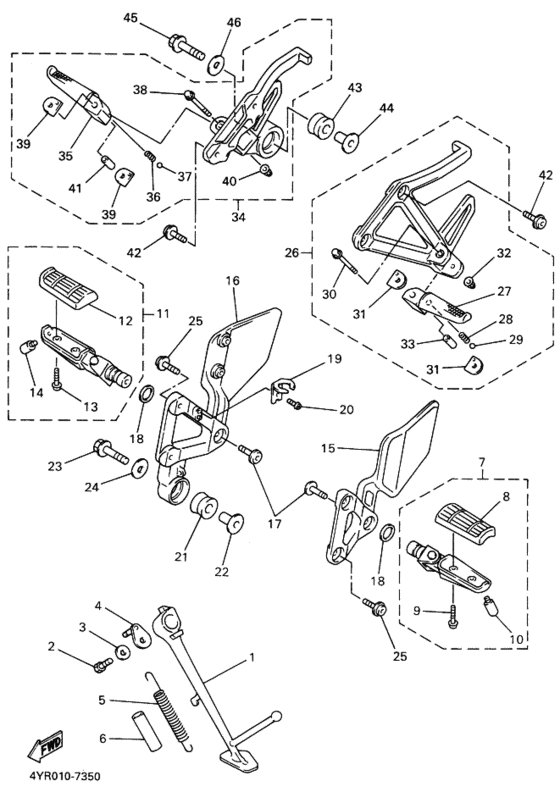

Stand & Footrest Diagram Yamaha FZ400
- Year
- 1997
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4YR1
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- FZ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4YR-27311-00-00
Stand, Side
|
4YR-27311-00-00 |
— | ||
|
2
|
2
90101-08662-00 Bolt |
90101-08662-00 |
from US $1.80 |
||
| replacement | |||||
|
2
|
2
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.80 |
||
|
3
|
3
90201-081R9-00 Washer, Plateワツシヤ，プレート; |
90201-081R9-00 |
from US $1.94 |
||
|
4
|
4
36Y-27352-00-00 Hook, Side Stand |
36Y-27352-00-00 |
from US $9.42 |
||
|
5
|
5
90506-29358-00 Spring, Tension |
90506-29358-00 |
from US $7.03 |
||
|
6
|
6
1TX-27351-00-00 Guide, Side Stand |
1TX-27351-00-00 |
from US $4.64 |
||
|
7
|
7
4YR-27410-00-00
Front Footrest Assy (Left)
フロントフートレストアセンブリ; レフト |
4YR-27410-00-00 |
— | ||
|
8
|
8
3YX-27413-00-00 Cover, Footrest．カバー，フートレスト; |
3YX-27413-00-00 |
from US $13.91 |
||
|
9
|
9
901-57050-79-00
Screw, Pan Head
．スクリユ，パンヘツド; |
901-57050-79-00 |
— | ||
| replacement | |||||
|
9
|
9
985-07050-14-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-07050-14-00 |
from US $1.43 |
||
|
10
|
10
4SV-27435-00-00 Bolt．ボルト; |
4SV-27435-00-00 |
US $4.79 |
||
| replacement | |||||
|
10
|
10
4SV-27435-10-00 Bolt．ボルト; |
4SV-27435-10-00 |
US $4.11 |
||
|
11
|
11
4YR-27420-00-00
Front Footrest Assy (Right)
フロントフートレストアセンブリ; ライト |
4YR-27420-00-00 |
— | ||
|
12
|
12
3YX-27413-00-00 Cover, Footrest．カバー，フートレスト; |
3YX-27413-00-00 |
from US $13.91 |
||
|
13
|
13
901-57050-79-00
Screw, Pan Head
．スクリユ，パンヘツド; |
901-57050-79-00 |
— | ||
| replacement | |||||
|
13
|
13
985-07050-14-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-07050-14-00 |
from US $1.43 |
||
|
14
|
14
4SV-27435-00-00 Bolt．ボルト; |
4SV-27435-00-00 |
US $4.79 |
||
| replacement | |||||
|
14
|
14
4SV-27435-10-00 Bolt．ボルト; |
4SV-27435-10-00 |
US $4.11 |
||
|
15
|
15
4YR-27442-00-00 Bracket 2 |
4YR-27442-00-00 |
US $109.41 |
||
|
16
|
16
4YR-27443-00-00 Bracket 3 |
4YR-27443-00-00 |
US $109.41 |
||
|
17
|
17
90109-103A9-00 Bolt,hex. Socket But |
90109-103A9-00 |
from US $7.03 |
||
| replacement | |||||
|
17
|
17
901-11100-17-00 Bolt,hex. Socket Button |
901-11100-17-00 |
from US $5.14 |
||
|
18
|
18
90206-17084-00 Washer, Waveワツシヤ，ウエイブ; |
90206-17084-00 |
from US $1.65 |
||
|
19
|
19
4DN-2144G-00-00 Stay, Stop Switchステー，ストツプスイツチ; |
4DN-2144G-00-00 |
from US $8.44 |
||
|
20
|
20
98507-06010-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06010-00 |
from US $0.90 |
||
|
21
|
21
4SV-27414-00-00
Damper, Footrest
ダンパ，フートレスト; |
4SV-27414-00-00 |
— | ||
|
22
|
22
90387-1012G-00
Collar
カラー; |
90387-1012G-00 |
— | ||
|
23
|
23
95814-08045-00 Bolt, Flange |
95814-08045-00 |
from US $2.54 |
||
|
24
|
24
90201-087G2-00 Washer, Plateワツシヤ，プレート; |
90201-087G2-00 |
from US $1.94 |
||
|
25
|
25
90109-087F1-00 Bolt |
90109-087F1-00 |
from US $2.24 |
||
|
26
|
26
4YR-27430-00-00
Rear Footrest Assy 1
リヤフートレストアセンブリ; |
4YR-27430-00-00 |
— | ||
|
27
|
27
3XV-27431-01-00 Footrest, Rear 1．フートレスト，リヤ １; |
3XV-27431-01-00 |
from US $33.06 |
||
|
28
|
28
90501-12743-00 Spring, Compression．スプリング，コンプレツシヨン; |
90501-12743-00 |
from US $1.80 |
||
|
29
|
29
93501-04011-00 Ball．ボール; |
93501-04011-00 |
from US $1.38 |
||
| replacement | |||||
|
29
|
29
97D95-06016-00 Bolt, Hexagon Deep Recess．ボール; |
97D95-06016-00 |
from US $1.28 |
||
|
30
|
30
95024-06045-00 Bolt, Flange (Small Head)．ボルト，フランジ; |
95024-06045-00 |
from US $1.50 |
||
|
31
|
31
1HX-27437-00-00 Washer, Special．ワツシヤ，スペシヤル; |
1HX-27437-00-00 |
from US $3.69 |
||
|
32
|
32
95604-06200-00 Nut, U Flange．ナツト，Ｕ フランジ; |
95604-06200-00 |
from US $1.50 |
||
|
33
|
33
90387-064H8-00 Collar．カラー; |
90387-064H8-00 |
from US $1.20 |
||
|
34
|
34
4YR-27440-00-00
Rear Footrest Assy 2
リヤフートレストアセンブリ ２; |
4YR-27440-00-00 |
— | ||
|
35
|
35
3XV-27441-01-00 Footrest, Rear 2．フートレスト，リヤ ２; |
3XV-27441-01-00 |
from US $32.20 |
||
|
36
|
36
90501-12743-00 Spring, Compression．スプリング，コンプレツシヨン; |
90501-12743-00 |
from US $1.80 |
||
|
37
|
37
93501-04011-00 Ball．ボール; |
93501-04011-00 |
from US $1.38 |
||
| replacement | |||||
|
37
|
37
97D95-06016-00 Bolt, Hexagon Deep Recess．ボール; |
97D95-06016-00 |
from US $1.28 |
||
|
38
|
38
95024-06045-00 Bolt, Flange (Small Head)．ボルト，フランジ; |
95024-06045-00 |
from US $1.50 |
||
|
39
|
39
1HX-27437-00-00 Washer, Special．ワツシヤ，スペシヤル; |
1HX-27437-00-00 |
from US $3.69 |
||
|
40
|
40
95604-06200-00 Nut, U Flange．ナツト，Ｕ フランジ; |
95604-06200-00 |
from US $1.50 |
||
|
41
|
41
90387-064H8-00 Collar．カラー; |
90387-064H8-00 |
from US $1.20 |
||
|
42
|
42
90109-087F1-00 Bolt |
90109-087F1-00 |
from US $2.24 |
||
|
43
|
43
2H7-27414-00-00 Damper, Footrestダンパ，フートレスト; |
2H7-27414-00-00 |
from US $2.12 |
||
|
44
|
44
90387-10636-00 Collarカラー; |
90387-10636-00 |
from US $7.48 |
||
|
45
|
45
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.39 |
||
|
46
|
46
90201-100A1-00 Washer, Plate (3J6)ワツシヤ，プレート; |
90201-100A1-00 |
from US $2.41 |
||
