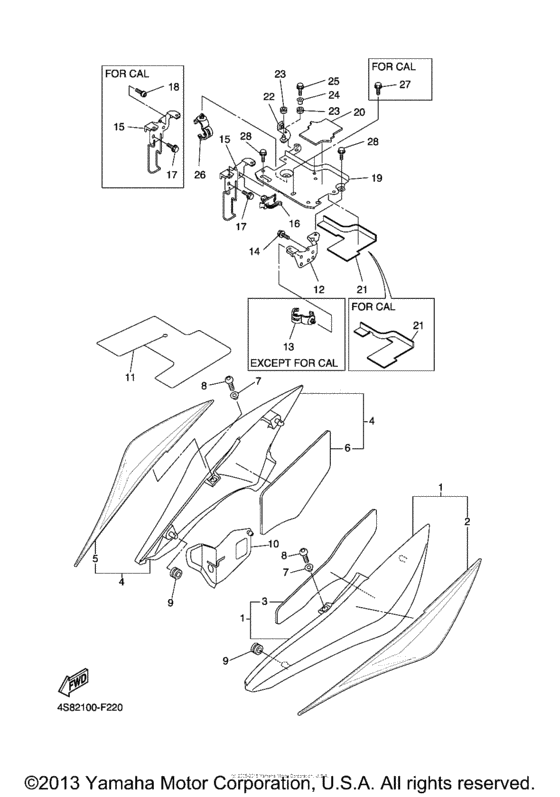

Side cover Diagram Yamaha FZ6 FZ6 FAZER S2
- Year
- 2007
- Model code
- 4S82
- Sales region
- USA
- Engine Capacity
- 600
- Model
- FZ6-SHG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VX-Y2171-L0-00 Cover, Side 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5VX-Y2171-L0-00 |
from US $76.01 |
||
|
1
|
1
5VX-Y2171-K0-00 Cover, Side 1Use for Color Deep Red Metallic K DRMK / 0918 |
5VX-Y2171-K0-00 |
from US $101.09 |
||
|
2
|
2
4S8-2173E-20-00 Graphic 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
4S8-2173E-20-00 |
from US $42.46 |
||
|
2
|
2
4S8-2173E-10-00 Graphic 1Use for Color Deep Red Metallic K DRMK / 0918 |
4S8-2173E-10-00 |
from US $42.46 |
||
|
3
|
3
5VX-2174X-00-00 Damper |
5VX-2174X-00-00 |
from US $2.35 |
||
|
4
|
4
5VX-Y2172-L0-00 Cover, Side 2Use for Color Deep Red Metallic K DRMK / 0918 |
5VX-Y2172-L0-00 |
from US $76.01 |
||
|
4
|
4
5VX-Y2172-M0-00 Cover, Side 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5VX-Y2172-M0-00 |
US $145.01 |
||
|
5
|
5
4S8-2173F-20-00 Graphic 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
4S8-2173F-20-00 |
from US $42.46 |
||
|
5
|
5
4S8-2173F-10-00 Graphic 2Use for Color Deep Red Metallic K DRMK / 0918 |
4S8-2173F-10-00 |
from US $42.46 |
||
|
6
|
6
5VX-2174Y-00-00 Damper |
5VX-2174Y-00-00 |
from US $1.60 |
||
|
7
|
7
90387-064J1-00 Collar |
90387-064J1-00 |
from US $3.74 |
||
| replacement | |||||
|
7
|
7
90387-06107-00 Collar |
90387-06107-00 |
from US $3.74 |
||
|
8
|
8
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.50 |
||
|
9
|
9
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.50 |
||
|
10
|
10
5VX-2163A-00-00 Cover, Rear Fender 1 |
5VX-2163A-00-00 |
from US $6.31 |
||
|
11
|
11
5VX-2177F-00-00 Flap |
5VX-2177F-00-00 |
from US $13.95 |
||
|
12
|
12
5VX-21843-00-00 Stay, 4 |
5VX-21843-00-00 |
from US $11.60 |
||
|
13
|
13
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.65 |
||
|
14
|
14
958-27060-10-00
Bolt, Flange(Jn5)
|
958-27060-10-00 |
— | ||
| replacement | |||||
|
14
|
14
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $0.90 |
||
|
15
|
15
5VX-22836-00-00 Stay, 3 |
5VX-22836-00-00 |
from US $21.30 |
||
|
16
|
16
90464-14001-00 Clamp |
90464-14001-00 |
from US $1.65 |
||
|
17
|
17
958-27060-10-00
Bolt, Flange(Jn5)
|
958-27060-10-00 |
— | ||
| replacement | |||||
|
17
|
17
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $0.90 |
||
|
18
|
18
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.35 |
||
|
19
|
19
4S8-2175V-00-00 Bracket 3 |
4S8-2175V-00-00 |
from US $31.58 |
||
|
20
|
20
5VX-21779-00-00 Damper, Locating 2 |
5VX-21779-00-00 |
from US $2.79 |
||
|
21
|
21
5VX-2173M-00-00 Seal 3 |
5VX-2173M-00-00 |
from US $4.71 |
||
|
21
|
21
5VX-2173M-10-00 Seal 3 |
5VX-2173M-10-00 |
US $5.17 |
||
|
22
|
22
4P5-21228-00-00 Bracket, Reserve Tank |
4P5-21228-00-00 |
from US $8.81 |
||
|
23
|
23
90480-13163-00 Grommet |
90480-13163-00 |
from US $1.65 |
||
|
24
|
24
90560-06201-00 Spacer |
90560-06201-00 |
from US $3.59 |
||
|
25
|
25
95807-06016-00 Bolt, Flange |
95807-06016-00 |
from US $0.90 |
||
| replacement | |||||
|
25
|
25
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $0.90 |
||
|
26
|
26
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.65 |
||
|
27
|
27
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
28
|
28
958-27060-10-00
Bolt, Flange(Jn5)
|
958-27060-10-00 |
— | ||
| replacement | |||||
|
28
|
28
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $0.90 |
||
