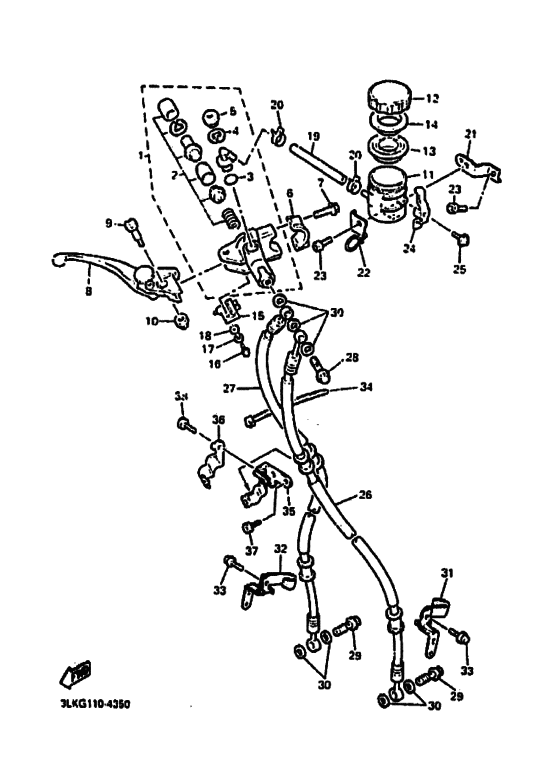

Front master cylinder 1 Diagram Yamaha FZR1000
- Year
- 1995
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3LKM
- Sales region
- Europe (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-W2587-50-00
Master Cylinder Sub Assembly
|
3GM-W2587-50-00 |
— | ||
|
2
|
2
3GM-W0041-50-00 Cylinder Kit, Master |
3GM-W0041-50-00 |
from US $74.29 |
||
|
3
|
3
93210-15620-00 O-Ring |
93210-15620-00 |
from US $1.20 |
||
| replacement | |||||
|
3
|
3
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.20 |
||
|
4
|
4
2VN-25866-00-00 Circlip |
2VN-25866-00-00 |
from US $2.99 |
||
|
5
|
5
3FV-2589A-00-00 Cover, Dust |
3FV-2589A-00-00 |
from US $7.33 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.16 |
||
|
7
|
7
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.80 |
||
|
8
|
8
3GM-83922-51-00 Lever 2 |
3GM-83922-51-00 |
from US $26.74 |
||
|
9
|
9
3FV-2589F-00-00 Bolt, Lever |
3FV-2589F-00-00 |
from US $6.13 |
||
|
10
|
10
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.05 |
||
|
11
|
11
3FV-25894-00-00 Tank, Reservoir |
3FV-25894-00-00 |
from US $26.05 |
||
|
12
|
12
3GM-25852-50-00 Cap, Reservoir |
3GM-25852-50-00 |
from US $10.28 |
||
|
13
|
13
3FV-25854-00-00 Gasket, Diaphragm |
3FV-25854-00-00 |
from US $7.90 |
||
|
14
|
14
2J2-25855-50-00 Bush,diaphragm |
2J2-25855-50-00 |
from US $6.88 |
||
|
15
|
15
3FV-83980-00-00 Front Stop Switch Assy |
3FV-83980-00-00 |
from US $20.94 |
||
| replacement | |||||
|
15
|
15
4HM-83980-00-00 Front Stop Switch Assy |
4HM-83980-00-00 |
from US $20.94 |
||
|
16
|
16
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $0.90 |
||
|
17
|
17
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $0.97 |
||
|
18
|
18
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $0.90 |
||
|
19
|
19
3GM-2585F-00-00 O-Ring |
3GM-2585F-00-00 |
from US $5.44 |
||
|
20
|
20
3PA-24356-00-00 Clip, Pipe 1 |
3PA-24356-00-00 |
from US $2.99 |
||
|
21
|
21
3GM-26292-50-00
Stay
|
3GM-26292-50-00 |
— | ||
|
22
|
22
3GM-26131-00-00
Guide, Cable 1
|
3GM-26131-00-00 |
— | ||
|
23
|
23
91317-06012-00 Bolt |
91317-06012-00 |
from US $0.90 |
||
|
24
|
24
3FV-2589G-00-00 Holder |
3FV-2589G-00-00 |
from US $12.71 |
||
|
25
|
25
3GM-2589H-00-00 Screw |
3GM-2589H-00-00 |
from US $0.34 |
||
|
26
|
26
3GM-25872-A0-00
Hose, Brake 1
|
3GM-25872-A0-00 |
— | ||
|
27
|
27
3GM-25873-A0-00
Hose, Brake 2
|
3GM-25873-A0-00 |
— | ||
|
28
|
28
90401-10160-00 Bolt, Union(3Gm) |
90401-10160-00 |
from US $9.28 |
||
| replacement | |||||
|
28
|
28
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.28 |
||
|
29
|
29
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $2.99 |
||
|
30
|
30
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.13 |
||
| replacement | |||||
|
30
|
30
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $0.80 |
||
|
31
|
31
3LK-25875-51-00 Holder, Brake Hose 1 |
3LK-25875-51-00 |
from US $22.77 |
||
| replacement | |||||
|
31
|
31
3LK-25875-52-00 Holder, Brake Hose 1 |
3LK-25875-52-00 |
from US $20.99 |
||
|
32
|
32
3LK-25876-51-00
Holder, Brake Hose 2
|
3LK-25876-51-00 |
— | ||
| replacement | |||||
|
32
|
32
3LK-25876-52-00
Holder, Brake Hose 2
|
3LK-25876-52-00 |
— | ||
|
33
|
33
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
33
|
33
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $0.90 |
||
|
34
|
34
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.03 |
||
|
35
|
35
3GM-23377-00-00
Bracket, Horn
|
3GM-23377-00-00 |
— | ||
|
36
|
36
3GM-23378-00-00
Bracket, Horn
|
3GM-23378-00-00 |
— | ||
|
37
|
37
91317-06012-00 Bolt |
91317-06012-00 |
from US $0.90 |
||
|
38
|
38
91317-06010-00 Bolt |
91317-06010-00 |
from US $0.90 |
||
