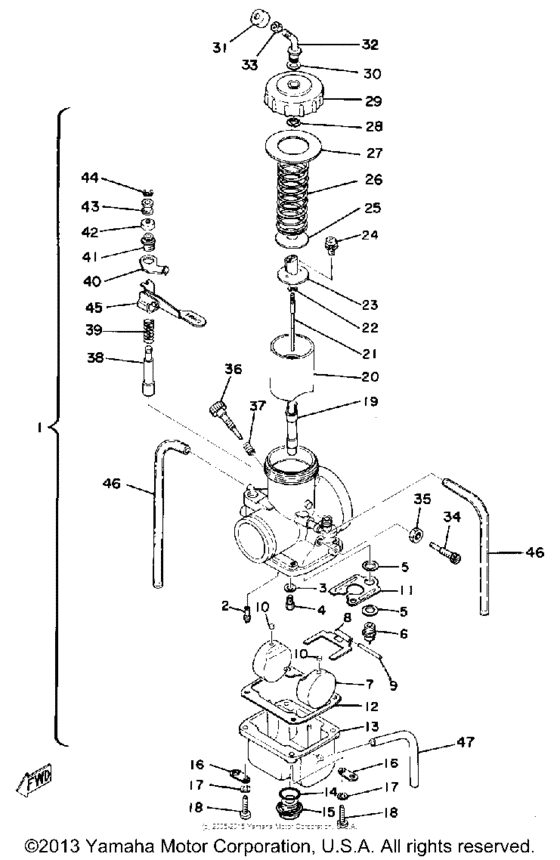

Carburetor Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X7-14101-00-00
Carburetor Assembly 1
|
2X7-14101-00-00 |
— | ||
|
2
|
2
193-14142-70-00 Jet, Pilot (# 70)70 |
193-14142-70-00 |
from US $6.79 |
||
|
3
|
3
310-14194-00-00
Ring
|
310-14194-00-00 |
— | ||
|
4
|
4
137-14143-64-00 Jet, Main (#320) |
137-14143-64-00 |
from US $8.08 |
||
|
4
|
4
137-14143-66-A1 Jet, Main (#330) |
137-14143-66-A1 |
from US $9.31 |
||
|
4
|
4
137-14143-68-00 Jet, Main (#340) |
137-14143-68-00 |
from US $7.54 |
||
|
5
|
5
239-14195-00-00 Washer, Needle Valve |
239-14195-00-00 |
from US $2.92 |
||
|
6
|
6
24X-14107-30-00 Needle Valve Set (239-14190-3239-14190-3 |
24X-14107-30-00 |
from US $41.04 |
||
|
7
|
7
214-14185-00-00
Float
|
214-14185-00-00 |
— | ||
|
8
|
8
363-14187-00-00
Arm, Float
|
363-14187-00-00 |
— | ||
|
9
|
9
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.12 |
||
|
10
|
10
214-14118-00-00 Cap |
214-14118-00-00 |
from US $10.37 |
||
|
11
|
11
510-14146-00-00
Plate
|
510-14146-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
363-14184-00-00 Gasket, Float Chamber |
363-14184-00-00 |
from US $16.76 |
||
|
13
|
13
510-14181-16-00
Body, Float Chmbr 1
|
510-14181-16-00 |
— | ||
|
14
|
14
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $8.98 |
||
|
15
|
15
500-14115-00-00 Plug, Screw |
500-14115-00-00 |
from US $22 |
||
|
16
|
16
313-14146-00-00 Plate |
313-14146-00-00 |
US $19.58 |
||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
18
|
18
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
US $2.84 |
||
|
19
|
19
239-14141-44-00
Nozzle, Main P-4
|
239-14141-44-00 |
— | ||
|
20
|
20
239-14116-15-00
Needle (6F15-3)
6F15-3 |
239-14116-15-00 |
— | ||
|
21
|
21
239-14116-15-00
Needle (6F15-3)
6F15-3 |
239-14116-15-00 |
— | ||
|
22
|
22
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
22
|
22
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $1.96 |
||
|
23
|
23
509-14274-00-00
Connector
|
509-14274-00-00 |
— | ||
|
24
|
24
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.05 |
||
|
25
|
25
509-14136-00-00
Seat, Spring
|
509-14136-00-00 |
— | ||
|
26
|
26
363-14131-00-00
Spring, Throttle Valve
|
363-14131-00-00 |
— | ||
|
27
|
27
363-14126-00-00
Gasket
|
363-14126-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
363-14137-00-00 Clip |
363-14137-00-00 |
from US $3.38 |
||
|
29
|
29
1W3-14158-00-00
Top, Mixing Chamber
|
1W3-14158-00-00 |
— | ||
|
30
|
30
509-14198-00-00 Gasket |
509-14198-00-00 |
from US $11.67 |
||
|
31
|
31
1M1-14169-00-00 Cap |
1M1-14169-00-00 |
from US $7.97 |
||
| replacement | |||||
|
31
|
31
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $4.61 |
||
|
32
|
32
23X-14106-00-00 Cable Adjust Screw Set |
23X-14106-00-00 |
from US $37.60 |
||
|
33
|
33
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.64 |
||
|
34
|
34
23X-14103-00-00 Throttle Screw Set |
23X-14103-00-00 |
from US $26.63 |
||
|
35
|
35
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2.99 |
||
|
36
|
36
26A-14104-00-00
Air Screw Set (1W3-14123-00)
1W3-14123-00 |
26A-14104-00-00 |
— | ||
|
37
|
37
137-14133-00-00 Spring, Throttle Stop |
137-14133-00-00 |
from US $4.49 |
||
|
38
|
38
1W1-14171-00-00
Plunger, Starter
|
1W1-14171-00-00 |
— | ||
|
39
|
39
256-14135-00-00
Coil, Spring
|
256-14135-00-00 |
— | ||
|
40
|
40
1W3-14178-00-00
Plate, Starter Lvr
|
1W3-14178-00-00 |
— | ||
|
41
|
41
802-14174-00-00
Cap, Plunger
|
802-14174-00-00 |
— | ||
|
42
|
42
802-14173-00-00
Cover, Plunger Cap
|
802-14173-00-00 |
— | ||
|
43
|
43
737-14241-00-00
Bush
|
737-14241-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
44
|
44
737-14137-00-00 Clip |
737-14137-00-00 |
from US $2.05 |
||
|
45
|
45
1W3-14175-00-00
Cover, Plunger Cap (1W3-14173
1W3-14173 |
1W3-14175-00-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
1W3-14173 |
999-99999-99-00 |
— | ||
|
46
|
46
310-14197-00-00 Hose |
310-14197-00-00 |
from US $4.19 |
||
| replacement | |||||
|
46
|
46
89A-14987-00-00 Hose |
89A-14987-00-00 |
from US $4.19 |
||
|
47
|
47
510-14197-00-00
Pipe (43214-19700-00)
43214-19700-00 |
510-14197-00-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
43214-19700-00 |
999-99999-99-00 |
— | ||
