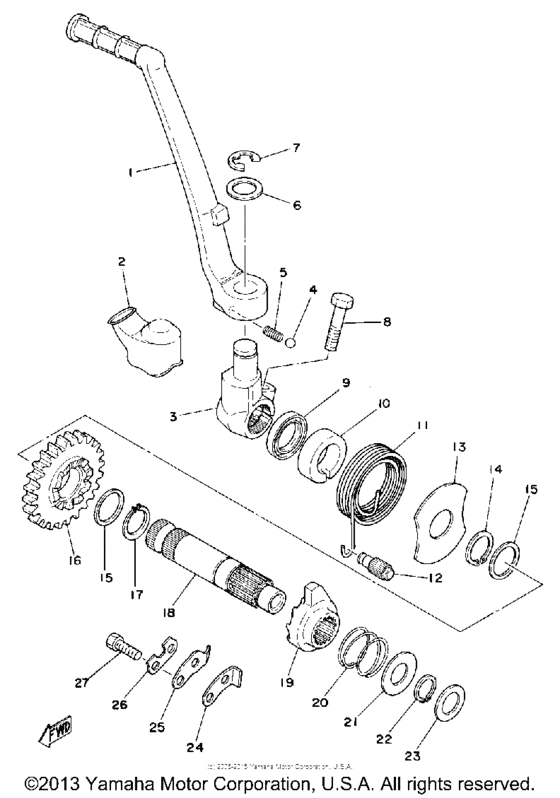

Kick starter Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2K7-15611-00-00
Crank, Kick (2K7-15611-00-33)
2K7-15611-00-33 YAMAHA BLACK |
2K7-15611-00-00 |
— | ||
|
2
|
2
2K7-15618-00-00
Cover, Kick Lever
|
2K7-15618-00-00 |
— | ||
|
3
|
3
2K7-15621-00-00 Boss, Kick Crank |
2K7-15621-00-00 |
from US $51.06 |
||
| replacement | |||||
|
3
|
3
583-15621-00-00 Boss, Kick Crank |
583-15621-00-00 |
from US $32.22 |
||
|
4
|
4
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.38 |
||
|
5
|
5
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.50 |
||
|
6
|
6
90201-15234-00 Washer, Plate (1.5T)1.5T |
90201-15234-00 |
from US $1.65 |
||
|
7
|
7
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.20 |
||
|
8
|
8
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
8
|
8
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $0.97 |
||
|
8
|
8
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.50 |
||
|
8
|
8
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.78 |
||
|
9
|
9
93102-20309-00 Oil Seal (25Y) |
93102-20309-00 |
from US $7.72 |
||
|
10
|
10
3Y6-15664-00-00 Guide, Spring |
3Y6-15664-00-00 |
from US $4.64 |
||
|
11
|
11
90508-32061-00 Spring, Torsion (291-15665-00)291-15665-00 |
90508-32061-00 |
from US $5.65 |
||
|
12
|
12
248-15668-00-00 Stopper |
248-15668-00-00 |
from US $3.39 |
||
|
13
|
13
2K7-15676-00-00 Cover, Spring |
2K7-15676-00-00 |
from US $2.69 |
||
| replacement | |||||
|
13
|
13
278-15676-00-00 Cover, Spring |
278-15676-00-00 |
from US $2.69 |
||
|
14
|
14
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.50 |
||
|
15
|
15
90201-20685-00 Washer, Plate |
90201-20685-00 |
from US $1.65 |
||
|
16
|
16
93608-30152-00 Pin, Dowel |
93608-30152-00 |
from US $2.34 |
||
|
17
|
17
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.80 |
||
|
18
|
18
2K7-15661-01-00
Axle, Kick
|
2K7-15661-01-00 |
— | ||
|
19
|
19
2K7-15671-01-00
Wheel, Ratchet
|
2K7-15671-01-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90501-16107-00 Spring, Compression |
90501-16107-00 |
from US $2.54 |
||
|
21
|
21
90201-155K6-00 Washer, Plain (1Jl) |
90201-155K6-00 |
from US $1.40 |
||
|
22
|
22
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $0.90 |
||
|
23
|
23
132-15644-00-00
Shim
|
132-15644-00-00 |
— | ||
|
24
|
24
2NX-15668-00-00 Stopper |
2NX-15668-00-00 |
from US $8.38 |
||
|
25
|
25
2NX-15674-00-00 Guide, Ratchet Wheel |
2NX-15674-00-00 |
from US $8.68 |
||
|
26
|
26
214-15686-00-00 Washer, Lock |
214-15686-00-00 |
from US $2.84 |
||
|
27
|
27
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
27
|
27
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.13 |
||
|
27
|
27
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
