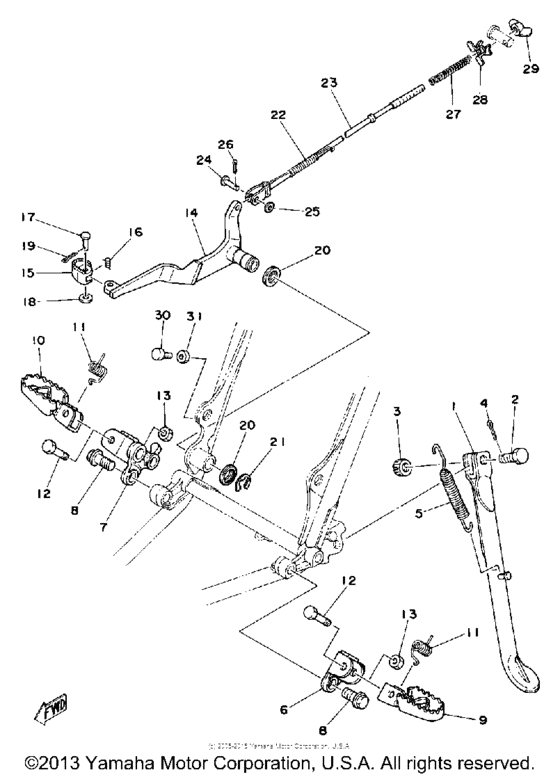

Stand - footrest - brake pedal Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 250
- Model
- IT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W4-27311-00-00
Stand, Side
|
1W4-27311-00-00 |
— | ||
|
2
|
2
90102-10006-00 Bolt, With Hole (278-27317-00)278-27317-00 |
90102-10006-00 |
from US $7.33 |
||
|
3
|
3
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $4.26 |
||
| replacement | |||||
|
3
|
3
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
4
|
4
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.50 |
||
|
5
|
5
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $15.56 |
||
|
6
|
6
2X4-27412-00-00
Bracket, Footrest 1
|
2X4-27412-00-00 |
— | ||
|
7
|
7
2X7-27422-00-00
Bracket, Footrest 2
|
2X7-27422-00-00 |
— | ||
|
8
|
8
901-05120-96-00
Bolt, Washer Based
|
901-05120-96-00 |
— | ||
|
9
|
9
3R4-27411-00-00 Footrest 1 |
3R4-27411-00-00 |
US $31.28 |
||
| replacement | |||||
|
9
|
9
22W-27411-01-90 Footrest 1 |
22W-27411-01-90 |
from US $17.14 |
||
|
10
|
10
3R4-27421-00-00 Footrest 2 (3R1-27421-00)3R1-27421-00 |
3R4-27421-00-00 |
from US $31.28 |
||
| replacement | |||||
|
10
|
10
22W-27421-01-90 Footrest 2 (3R1-27421-00)3R1-27421-00 |
22W-27421-01-90 |
from US $22.57 |
||
|
11
|
11
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.65 |
||
|
12
|
12
90101-08428-00 Bolt |
90101-08428-00 |
from US $4.94 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.14 |
||
| replacement | |||||
|
13
|
13
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.14 |
||
|
14
|
14
2X7-27211-00-00
Pedal, Brake
|
2X7-27211-00-00 |
— | ||
|
15
|
15
55V-27242-00-00 Pedal, Brake |
55V-27242-00-00 |
from US $16.01 |
||
|
16
|
16
90508-14352-00 Spring, Torsion |
90508-14352-00 |
from US $1.65 |
||
|
17
|
17
91701-06022-00 Pin |
91701-06022-00 |
from US $1.42 |
||
|
18
|
18
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
|
18
|
18
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.80 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
|
19
|
19
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.50 |
||
| replacement | |||||
|
19
|
19
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.50 |
||
|
20
|
20
498-27235-00-00 Cover, Dust |
498-27235-00-00 |
from US $4.27 |
||
|
21
|
21
990-01156-00-00
Circlip, E-Type
|
990-01156-00-00 |
— | ||
|
22
|
22
905-06201-28-00
Spring, Tension
|
905-06201-28-00 |
— | ||
|
23
|
23
2K5-27231-00-00
Rod, Brake
|
2K5-27231-00-00 |
— | ||
|
24
|
24
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $3.59 |
||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $0.90 |
||
|
26
|
26
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.50 |
||
| replacement | |||||
|
26
|
26
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.50 |
||
|
27
|
27
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.65 |
||
|
28
|
28
1W2-27239-00-00 Seat, Spring |
1W2-27239-00-00 |
US $28.57 |
||
|
29
|
29
90179-06411-00 Nut |
90179-06411-00 |
from US $1.43 |
||
|
30
|
30
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
30
|
30
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.05 |
||
|
31
|
31
953-80067-00-00
Nut
|
953-80067-00-00 |
— | ||
| replacement | |||||
|
31
|
31
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.43 |
||
|
31
|
31
2X7-27000-00-00
Main Stand Kit
|
2X7-27000-00-00 |
— | ||
