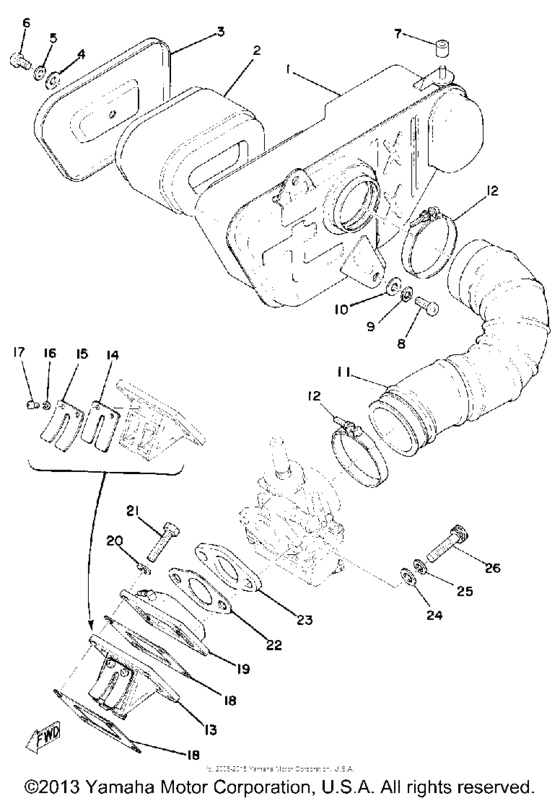

Intake Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
463-14411-01-00
Case, Air Cleaner 1
|
463-14411-01-00 |
— | ||
|
2
|
2
463-14451-09-00
Element, Air Clnr
|
463-14451-09-00 |
— | ||
|
3
|
3
463-14412-00-00
Cap, Cleaner Case 1
|
463-14412-00-00 |
— | ||
|
4
|
4
90202-05057-00 Washer, Plate |
90202-05057-00 |
from US $1.65 |
||
|
5
|
5
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
|
5
|
5
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.80 |
||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
|
6
|
6
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.50 |
||
|
7
|
7
353-21778-00-00
Damper, Locating 1
|
353-21778-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
8
|
8
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $0.90 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.80 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
|
11
|
11
463-14453-01-00
Joint, Air Clnr 1
|
463-14453-01-00 |
— | ||
|
12
|
12
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.63 |
||
|
13
|
13
314-13610-01-00 Reed Valve Assembly |
314-13610-01-00 |
from US $134.50 |
||
| replacement | |||||
|
13
|
13
53V-13610-00-00 Reed Valve Assembly |
53V-13610-00-00 |
from US $74.92 |
||
|
14
|
14
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.19 |
||
|
15
|
15
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
15
|
15
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
16
|
16
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.05 |
||
|
17
|
17
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.05 |
||
|
18
|
18
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $2.50 |
||
|
19
|
19
463-13565-00-00
Joint, Carburetor
|
463-13565-00-00 |
— | ||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
21
|
21
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
21
|
21
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
22
|
22
248-13556-70-00 Gasket,manifold |
248-13556-70-00 |
from US $4.56 |
||
| replacement | |||||
|
22
|
22
248-13556-71-00 Gasket, Manifold |
248-13556-71-00 |
from US $4.56 |
||
|
23
|
23
304-13555-00-00 Manifold, Intake |
304-13555-00-00 |
US $29.11 |
||
|
24
|
24
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.38 |
||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
26
|
26
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
26
|
26
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $0.90 |
||
