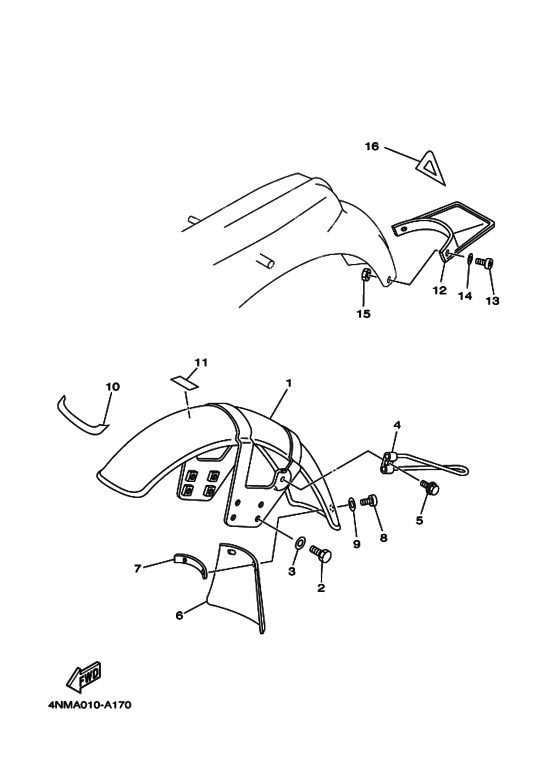

Fender Diagram Yamaha T90 News Mate
- Year
- 2002
- Colour
- Pastel Mineral Blue (PMIB; 00T7)
- Model code
- 4NMB
- Sales region
- Japan (010)
- Engine Capacity
- 90
- Color Variant
- A
- Model
- T90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GL-21510-00-T7 Front Fender Compフロントフエンダコンプリート; パステルミネラルブルー |
4GL-21510-00-T7 |
US $183.58 |
||
|
2
|
2
97007-08020-00 Boltボルト; |
97007-08020-00 |
from US $1.80 |
||
| replacement | |||||
|
2
|
2
97017-08020-00 Boltボルト; |
97017-08020-00 |
from US $1.80 |
||
|
3
|
3
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.05 |
||
|
4
|
4
4GL-23317-01-00 Holder, Cableホルダ，ケーブル; |
4GL-23317-01-00 |
US $10.87 |
||
|
5
|
5
950-27060-12-00 Bolt, Flangeボルト，フランジ; |
950-27060-12-00 |
from US $1.28 |
||
|
6
|
6
4GL-21521-00-00 Flap, Front Fender |
4GL-21521-00-00 |
US $17.20 |
||
|
7
|
7
4GL-21522-00-00 Band, Flap |
4GL-21522-00-00 |
US $6.46 |
||
|
8
|
8
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
8
|
8
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.05 |
||
|
9
|
9
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $0.90 |
||
|
10
|
10
4GL-21519-00-00 Mole, Fenderモール，フエンダ; |
4GL-21519-00-00 |
US $7.33 |
||
|
12
|
12
116-21621-00-00 Flap, Rear |
116-21621-00-00 |
US $10.02 |
||
|
13
|
13
98507-06014-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06014-00 |
from US $0.90 |
||
|
14
|
14
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $0.90 |
||
|
15
|
15
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.05 |
||
|
16
|
16
4GL-21619-A0-00 Stripe, Rear Fender |
4GL-21619-A0-00 |
US $4.41 |
||
