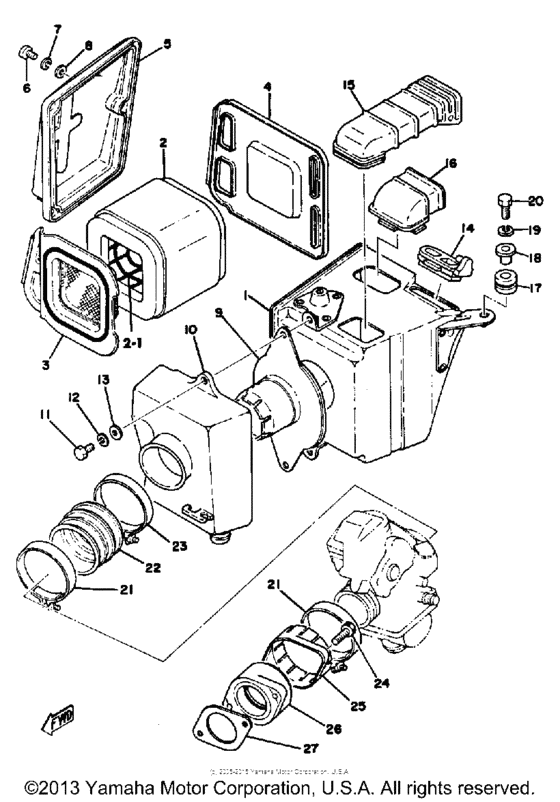

Air filter Diagram Yamaha TT500
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-14411-01-00
Case, Air Cleaner 1
|
583-14411-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
583-14458-00-00
Guide, Element
|
583-14458-00-00 |
— | ||
|
2
|
2
583-14451-09-00 Element, Air Clnr |
583-14451-09-00 |
from US $21.49 |
||
| replacement | |||||
|
2
|
2
583-14451-08-00 ELEMENT, AIR CLEANER |
583-14451-08-00 |
US $21.49 |
||
|
3
|
3
583-14468-01-00
Plate, Element Ftng
|
583-14468-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
583-14472-00-00
Plate, Element
|
583-14472-00-00 |
— | ||
|
5
|
5
583-14422-00-00
Cap, Cleaner Case 2
|
583-14422-00-00 |
— | ||
|
6
|
6
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.09 |
||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
8
|
8
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
8
|
8
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $0.90 |
||
|
8
|
8
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $0.90 |
||
|
9
|
9
583-14485-00-00
Pipe, Joint
|
583-14485-00-00 |
— | ||
|
10
|
10
583-14421-00-00 Case, Air Cleaner 2 |
583-14421-00-00 |
from US $104.30 |
||
|
11
|
11
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.05 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
13
|
13
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
|
13
|
13
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.80 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
|
14
|
14
1T1-14437-00-00
Duct
|
1T1-14437-00-00 |
— | ||
|
15
|
15
583-14431-00-00
Silencer, Intake 1
|
583-14431-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
1T1-14441-00-00
Silencer, Intake 2
|
1T1-14441-00-00 |
— | ||
|
17
|
17
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.50 |
||
|
18
|
18
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.80 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
20
|
20
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
20
|
20
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
21
|
21
90460-58015-00 Hose Clamp Assy |
90460-58015-00 |
from US $4.19 |
||
| replacement | |||||
|
21
|
21
90450-58002-00 Hose Clamp Assy |
90450-58002-00 |
from US $3.67 |
||
|
22
|
22
583-14453-00-00 Joint, Air Clnr 1 |
583-14453-00-00 |
from US $27.98 |
||
| replacement | |||||
|
22
|
22
583-14453-01-00 |
583-14453-01-00 |
US $6.75 |
||
|
23
|
23
90460-61063-00 Hose Clamp Assy |
90460-61063-00 |
from US $8.23 |
||
| replacement | |||||
|
23
|
23
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $6.76 |
||
|
24
|
24
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
24
|
24
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $0.90 |
||
|
25
|
25
256-13564-00-00 Cover, Carb.joint |
256-13564-00-00 |
from US $11.11 |
||
|
26
|
26
583-13565-01-00 Joint, Carburetor |
583-13565-01-00 |
from US $110.87 |
||
|
27
|
27
583-13556-01-00 Gasket, Manifold |
583-13556-01-00 |
from US $5.58 |
||
| replacement | |||||
|
27
|
27
3HT-13556-00-00 Gasket, Manifold |
3HT-13556-00-00 |
from US $3.35 |
||
