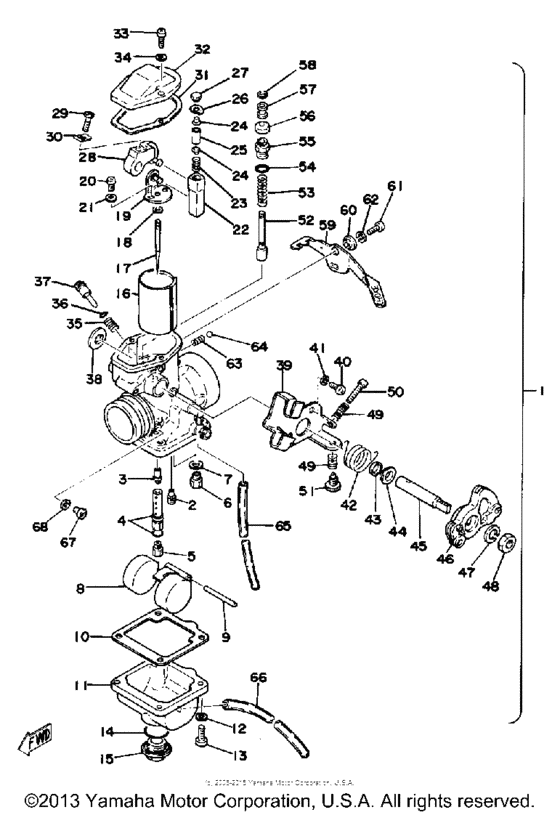

Carburetor Diagram Yamaha TT500
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-14561-00-00 O-Ring |
583-14561-00-00 |
from US $3.10 |
||
|
1
|
1
1T1-14101-60-00
Carburetor Assembly 1
|
1T1-14101-60-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
193-14142-30-A0 Jet, Pilot #30 (#30)#30 #30 |
193-14142-30-A0 |
from US $9.36 |
||
|
3
|
3
583-14141-52-00
Nozzle, Main (Q-2)
|
583-14141-52-00 |
— | ||
|
4
|
4
583-14148-00-00 Pipe |
583-14148-00-00 |
from US $29.47 |
||
|
5
|
5
137-14143-46-A1 Jet, Main (#230) |
137-14143-46-A1 |
from US $11.83 |
||
|
5
|
5
137-14143-50-A1 Jet, Main (#250) |
137-14143-50-A1 |
from US $11.27 |
||
|
5
|
5
137-14143-48-A1 Jet, Main (#240) |
137-14143-48-A1 |
from US $11.32 |
||
|
6
|
6
23L-14107-25-00 Needle Valve Set |
23L-14107-25-00 |
from US $39.28 |
||
|
7
|
7
214-14195-00-00 Washer, Valve Seat |
214-14195-00-00 |
from US $3.29 |
||
|
8
|
8
583-14185-00-00
Float
|
583-14185-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.12 |
||
|
10
|
10
583-14184-00-00 Gasket, Float Chmbr |
583-14184-00-00 |
from US $27.38 |
||
|
11
|
11
1E6-14181-12-00
Body, Float Chmbr 1
|
1E6-14181-12-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
13
|
13
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
13
|
13
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $0.90 |
||
|
14
|
14
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $8.98 |
||
|
15
|
15
500-14115-00-00 Plug, Screw |
500-14115-00-00 |
from US $22 |
||
|
16
|
16
583-14112-40-00
Valve, Throttle 1
|
583-14112-40-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
1T1-14116-02-00
Needle
|
1T1-14116-02-00 |
— | ||
|
18
|
18
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
18
|
18
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $1.96 |
||
|
19
|
19
583-14291-00-00
Bracket 1
|
583-14291-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $0.90 |
||
|
21
|
21
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $0.97 |
||
|
22
|
22
583-14274-00-00
Connector
|
583-14274-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
583-14933-00-00
Spring, Diaphragm
|
583-14933-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
583-14558-00-00
Washer
|
583-14558-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
583-14386-00-00
Pin, Float
|
583-14386-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
583-14951-00-00
Washer
|
583-14951-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
583-14216-00-00
Screw
|
583-14216-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
583-14292-00-00
Lever, Throttl.valv
|
583-14292-00-00 |
— | ||
|
29
|
29
583-14592-00-00
Screw
|
583-14592-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
583-14597-00-00
Washer
|
583-14597-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
583-14536-00-00 Gasket |
583-14536-00-00 |
from US $31.12 |
||
|
32
|
32
583-14158-00-00
Top, Mixing Chamber
|
583-14158-00-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
33
|
33
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.13 |
||
|
34
|
34
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
34
|
34
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $0.97 |
||
|
35
|
35
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $3.51 |
||
|
36
|
36
354-14147-00-00 O-Ring |
354-14147-00-00 |
from US $8.68 |
||
|
37
|
37
10W-14104-00-00 Air Screw Set |
10W-14104-00-00 |
from US $14.65 |
||
|
38
|
38
583-14264-00-00 Spacer |
583-14264-00-00 |
US $14.20 |
||
|
39
|
39
583-14571-00-00
Bracket, Throttle
|
583-14571-00-00 |
— | ||
|
40
|
40
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.09 |
||
|
41
|
41
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
42
|
42
583-14131-01-00
Spring, Thrtl Valve
|
583-14131-01-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
583-14239-01-00
Seal
|
583-14239-01-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
44
|
44
583-14265-00-00
Collar
|
583-14265-00-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
583-14215-00-00
Shaft, Thrtl Lever
|
583-14215-00-00 |
— | ||
|
46
|
46
583-14573-00-00
Lever
|
583-14573-00-00 |
— | ||
| replacement | |||||
|
46
|
46
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
47
|
47
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
48
|
48
812-14594-00-00 Nut |
812-14594-00-00 |
from US $1.94 |
||
|
49
|
49
583-14133-00-00
Spring, Thrtl Stop
|
583-14133-00-00 |
— | ||
| replacement | |||||
|
49
|
49
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
50
|
50
583-14245-00-00
Screw, Guide
|
583-14245-00-00 |
— | ||
| replacement | |||||
|
50
|
50
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
51
|
51
583-14121-00-00
Screw, Thrtl Stop
|
583-14121-00-00 |
— | ||
|
52
|
52
583-14171-01-00
Plunger, Starter
|
583-14171-01-00 |
— | ||
| replacement | |||||
|
52
|
52
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
53
|
53
500-14135-00-00
Spring, Plunger
|
500-14135-00-00 |
— | ||
|
54
|
54
583-14562-00-00
O-Ring
|
583-14562-00-00 |
— | ||
|
55
|
55
583-14174-00-00
Cap, Plunger
|
583-14174-00-00 |
— | ||
| replacement | |||||
|
55
|
55
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
56
|
56
802-14173-00-00
Cover, Plunger Cap
|
802-14173-00-00 |
— | ||
|
57
|
57
583-14918-00-00
Ring
|
583-14918-00-00 |
— | ||
|
58
|
58
737-14137-00-00 Clip |
737-14137-00-00 |
from US $2.05 |
||
|
59
|
59
583-14175-01-00
Lever, Starter 1
|
583-14175-01-00 |
— | ||
| replacement | |||||
|
59
|
59
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
60
|
60
583-14594-00-00
Collar
|
583-14594-00-00 |
— | ||
|
61
|
61
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
61
|
61
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.50 |
||
|
62
|
62
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
63
|
63
583-14589-00-00 Spring |
583-14589-00-00 |
from US $3.24 |
||
|
64
|
64
93501-08001-00 Ball |
93501-08001-00 |
from US $0.40 |
||
|
65
|
65
904-45081-F2-00
Hose
|
904-45081-F2-00 |
— | ||
| replacement | |||||
|
65
|
65
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $4.34 |
||
|
66
|
66
510-14197-00-00
Pipe (43214-19700-00)
43214-19700-00 |
510-14197-00-00 |
— | ||
| replacement | |||||
|
66
|
66
999-99999-99-00
Not Available
43214-19700-00 |
999-99999-99-00 |
— | ||
|
67
|
67
341-14991-00-00 Plug, Screw |
341-14991-00-00 |
from US $6.58 |
||
|
68
|
68
584-14956-00-00 Washer, Plug Screw |
584-14956-00-00 |
from US $5.36 |
||
