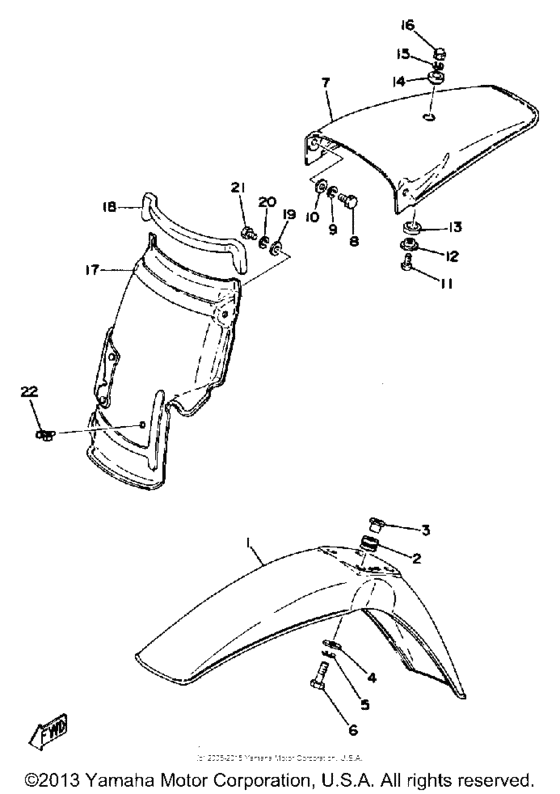

Fender Diagram Yamaha TT500
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T1-21511-00-00
Fender, Front
EL TORO ORANGE |
1T1-21511-00-00 |
— | ||
|
2
|
2
90480-14198-00 Grommet |
90480-14198-00 |
from US $4.04 |
||
|
3
|
3
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
3
|
3
90387-06158-00 Collar |
90387-06158-00 |
from US $1.50 |
||
|
4
|
4
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.13 |
||
| replacement | |||||
|
4
|
4
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $1.13 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
6
|
6
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
6
|
6
97017-06030-00 Bolt |
97017-06030-00 |
from US $0.90 |
||
|
6
|
6
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
7
|
7
1T1-21611-00-00
Fender, Rear
EL TORO ORANGE |
1T1-21611-00-00 |
— | ||
|
8
|
8
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.13 |
||
|
8
|
8
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.13 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
10
|
10
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.65 |
||
|
11
|
11
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $2.99 |
||
| replacement | |||||
|
11
|
11
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
US $2.99 |
||
|
12
|
12
902-09060-87-00
Washer, Special Shape
|
902-09060-87-00 |
— | ||
|
13
|
13
322-21639-00-00
Damper 2
|
322-21639-00-00 |
— | ||
|
14
|
14
322-21541-00-00 Damper 1 |
322-21541-00-00 |
from US $4.64 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
16
|
16
95303-06800-00 Nut |
95303-06800-00 |
from US $0.90 |
||
| replacement | |||||
|
16
|
16
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $0.90 |
||
|
17
|
17
1T1-21620-00-00 Guard, Mud |
1T1-21620-00-00 |
from US $55.40 |
||
|
18
|
18
583-21746-00-00
Damper
|
583-21746-00-00 |
— | ||
|
19
|
19
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.65 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
21
|
21
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.13 |
||
|
21
|
21
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.13 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
22
|
22
90464-08020-00 Clamp |
90464-08020-00 |
from US $1.94 |
||
