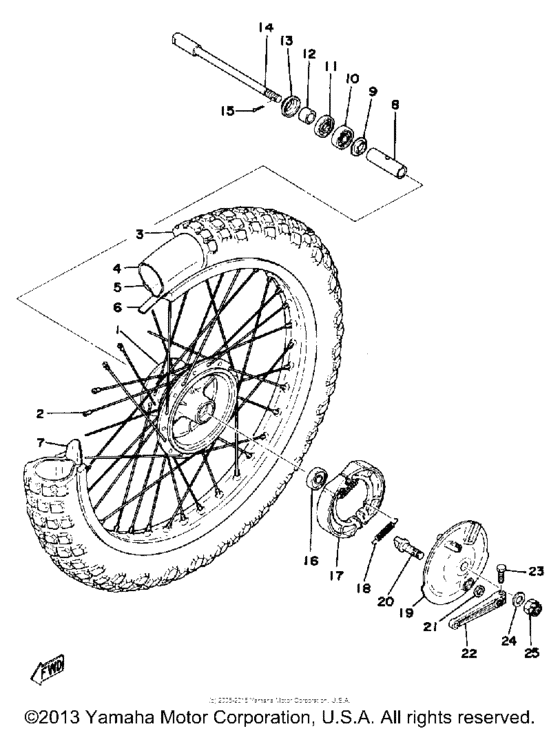

Front wheel Diagram Yamaha TT500
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1K7-25111-10-98
Hub, Front
|
1K7-25111-10-98 |
— | ||
|
2
|
2
2W6-25104-02-00 Spoke Set, Front |
2W6-25104-02-00 |
from US $64.96 |
||
|
3
|
3
941-30212-48-00
300X21 Dun Sr Sprt
SR SPRT |
941-30212-48-00 |
— | ||
|
4
|
4
94227-21101-00 Tube (Mcs 2.75/3.00-21 Tr6)2.75/3.00-21 TR6 |
94227-21101-00 |
US $41.62 |
||
| replacement | |||||
|
4
|
4
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)2.75/3.00-21 TR6 |
942-27211-23-00 |
US $41.62 |
||
|
5
|
5
944-16213-26-00 Rim 1.60X211.60X21 |
944-16213-26-00 |
US $623.56 |
||
|
6
|
6
943-27210-24-00 Band, Rim |
943-27210-24-00 |
US $4.04 |
||
|
7
|
7
1T1-25194-00-00 Spacer, Bead |
1T1-25194-00-00 |
from US $55.80 |
||
|
8
|
8
90560-15116-00 Spacer 322251170000 |
90560-15116-00 |
US $15.34 |
||
|
9
|
9
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.19 |
||
|
10
|
10
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
10
|
10
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.23 |
||
|
11
|
11
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.13 |
||
|
12
|
12
903-87154-18-00
Collar (322-25183-00)
322-25183-00 |
903-87154-18-00 |
— | ||
|
13
|
13
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $3.62 |
||
|
14
|
14
583-25181-00-00
Axle, Wheel
|
583-25181-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
15
|
15
91490-30030-00 Pin. Cotter |
91490-30030-00 |
from US $0.98 |
||
|
16
|
16
93306-20226-00 Bearing |
93306-20226-00 |
from US $14.21 |
||
|
17
|
17
322-W2535-00-00 Brake Shoe Kit |
322-W2535-00-00 |
from US $36.23 |
||
| replacement | |||||
|
17
|
17
322-W253A-10-00 PISTON 1 O/S 0.25 |
322-W253A-10-00 |
from US $36.23 |
||
|
18
|
18
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $7.48 |
||
|
19
|
19
483-25121-00-98
Plate, Brake Shoe
|
483-25121-00-98 |
— | ||
|
20
|
20
23X-25151-00-00
Camshaft
|
23X-25151-00-00 |
— | ||
|
21
|
21
137-25159-00-00
Seal, Camshaft
|
137-25159-00-00 |
— | ||
|
22
|
22
322-25155-00-00
Lever, Camshaft 1
|
322-25155-00-00 |
— | ||
|
23
|
23
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.65 |
||
| replacement | |||||
|
23
|
23
90101-06M27-00 Bolt |
90101-06M27-00 |
US $0.88 |
||
|
24
|
24
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.43 |
||
|
25
|
25
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $8.83 |
||
| replacement | |||||
|
25
|
25
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $8.83 |
||
