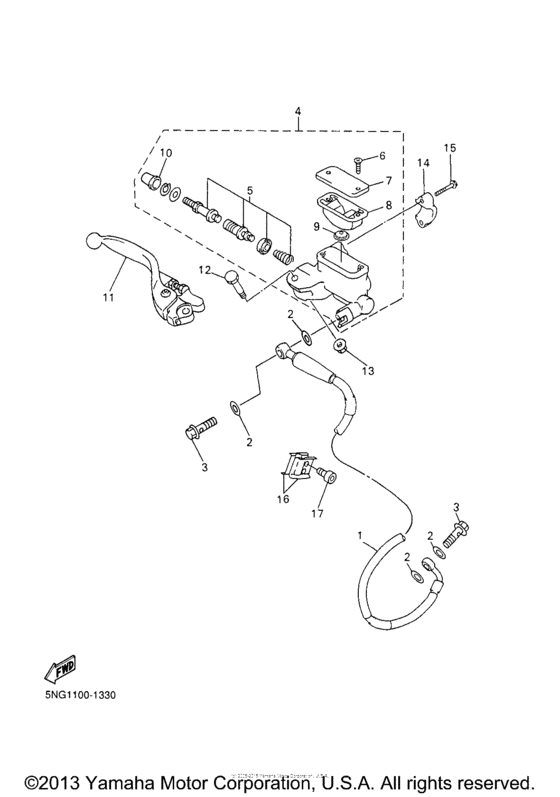

Front master cylinder Diagram Yamaha WR426F
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 426
- Model
- WR426F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PH-25872-00-00 Hose, Brake 1 |
5PH-25872-00-00 |
from US $156.33 |
||
| replacement | |||||
|
1
|
1
5TJ-25872-00-00 Hose, Brake 1 |
5TJ-25872-00-00 |
from US $156.33 |
||
|
2
|
2
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.13 |
||
| replacement | |||||
|
2
|
2
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $0.80 |
||
|
3
|
3
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.24 |
||
|
4
|
4
5NY-W2587-01-00 Master Cylinder Sub Assy |
5NY-W2587-01-00 |
from US $140.98 |
||
|
5
|
5
5NY-W0041-00-00 Cylinder Kit, Master |
5NY-W0041-00-00 |
from US $43.02 |
||
| replacement | |||||
|
5
|
5
5NY-W0041-01-00 Cylinder Kit, Master |
5NY-W0041-01-00 |
from US $43.02 |
||
|
6
|
6
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
6
|
6
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.43 |
||
|
7
|
7
5MV-25852-01-00 Cap, Reservoir |
5MV-25852-01-00 |
from US $6.80 |
||
|
8
|
8
56A-25854-00-00 Gasket, Diaphragm |
56A-25854-00-00 |
from US $15.34 |
||
|
9
|
9
8CR-25715-00-00 Separator Assy |
8CR-25715-00-00 |
US $5.58 |
||
|
10
|
10
5NY-25868-00-00 Boot, Master Cylinder |
5NY-25868-00-00 |
from US $4.27 |
||
|
11
|
11
5MV-83922-00-00 Lever 2 |
5MV-83922-00-00 |
from US $27.83 |
||
|
12
|
12
5MV-2589F-00-00 Bolt, Lever |
5MV-2589F-00-00 |
from US $3.60 |
||
|
13
|
13
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $0.90 |
||
|
14
|
14
5MV-25867-00-00 Bracket, Master Cylinder |
5MV-25867-00-00 |
from US $8.26 |
||
|
15
|
15
5MV-25833-00-00 Bolt, Fitting |
5MV-25833-00-00 |
from US $0.56 |
||
|
16
|
16
90465-16258-00 Clamp |
90465-16258-00 |
from US $7.48 |
||
|
17
|
17
91317-06014-00 Bolt |
91317-06014-00 |
from US $1.13 |
||
| replacement | |||||
|
17
|
17
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
