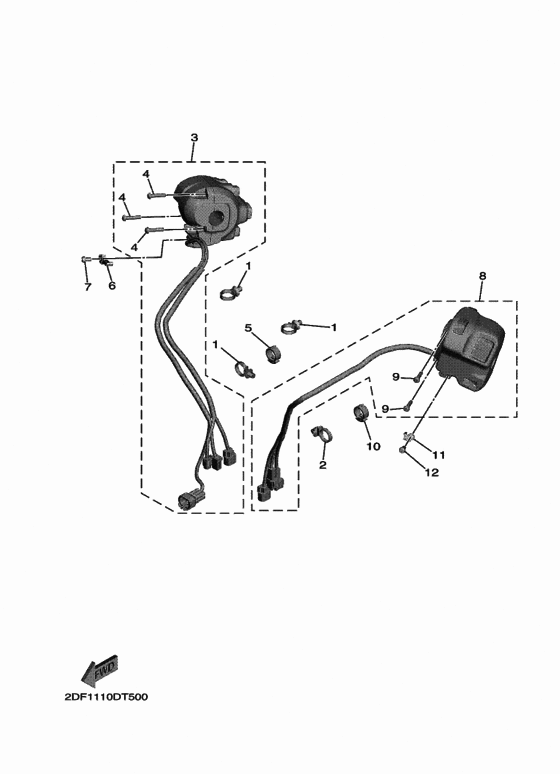

Handle switch & lever Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dark Gray Metallic G
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90464-30010-00 CLAMP |
90464-30010-00 |
from US $1.13 |
||
|
2
|
2
90464-25009-00 CLAMP |
90464-25009-00 |
from US $1.13 |
||
|
3
|
3
2DF-8291R-00-00 SW., HANDLE RH |
2DF-8291R-00-00 |
US $775.87 |
||
| replacement | |||||
|
3
|
3
2DF-8291R-10-00 |
2DF-8291R-10-00 |
US $775.87 |
||
|
4
|
4
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.28 |
||
|
5
|
5
90464-26001-00 Clamp |
90464-26001-00 |
from US $1.40 |
||
|
6
|
6
2DF-82361-00-00 CLAMP, CORD |
2DF-82361-00-00 |
US $11.74 |
||
|
7
|
7
92017-05010-00 Bolt, Button Head |
92017-05010-00 |
from US $1.28 |
||
|
8
|
8
2DF-8291L-00-00 SW., HANDLE LH |
2DF-8291L-00-00 |
US $724.12 |
||
|
9
|
9
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.28 |
||
|
10
|
10
90464-26001-00 Clamp |
90464-26001-00 |
from US $1.40 |
||
|
11
|
11
2DF-82362-00-00 CLAMP, CORD 2 |
2DF-82362-00-00 |
US $13.09 |
||
|
12
|
12
92017-05010-00 Bolt, Button Head |
92017-05010-00 |
from US $1.28 |
||
