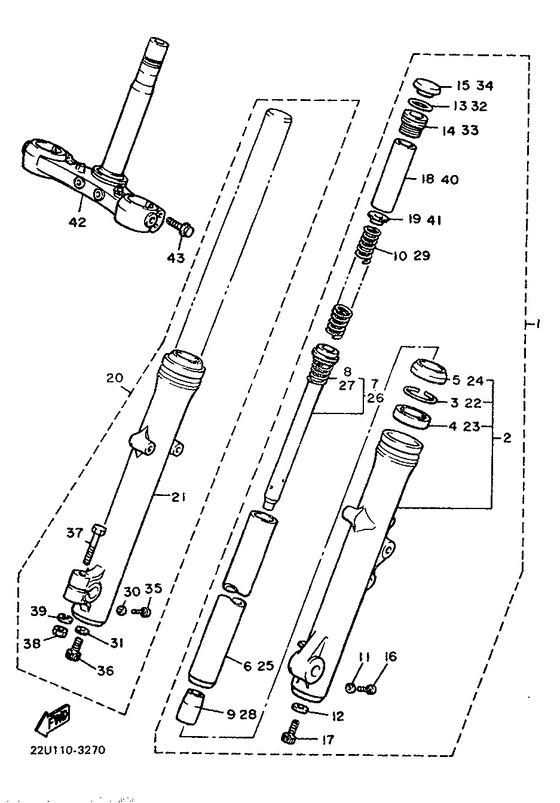

Front fork Diagram Yamaha XV500 Virago
- Year
- 1987
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 26R
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- XV500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
22U-23102-01-00
Front Fork Assembly L
|
22U-23102-01-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
22U-23126-01-38
Tube, Outer 1
Clear buffing |
22U-23126-01-38 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Clear buffing |
999-99999-99-00 |
— | ||
|
03
|
03
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $3.97 |
||
|
04
|
04
15R-23145-00-00 Oil Seal |
15R-23145-00-00 |
from US $15.42 |
||
| replacement | |||||
|
04
|
04
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.56 |
||
|
05
|
05
15R-23144-00-00 Seal, Dust |
15R-23144-00-00 |
from US $21.88 |
||
| replacement | |||||
|
05
|
05
33M-23144-00-00 Seal, Dust (15R-23144-00) |
33M-23144-00-00 |
from US $24.53 |
||
|
06
|
06
22U-23110-01-00
Inner Tube 1
|
22U-23110-01-00 |
— | ||
|
07
|
07
22U-23170-00-00
Cylinder, Frtfrk
|
22U-23170-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
509-23151-L0-00
Spring, Rebound
|
509-23151-L0-00 |
— | ||
|
09
|
09
3R8-23173-L0-00 Spindle, Taper |
3R8-23173-L0-00 |
US $21.71 |
||
| replacements | |||||
|
09
|
09
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
09
|
09
3R6-23173-L0-00 Spindle, Taper |
3R6-23173-L0-00 |
from US $12.27 |
||
|
10
|
10
22U-23141-00-00
Spring, Front Fork
|
22U-23141-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $2.84 |
||
|
12
|
12
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.44 |
||
|
13
|
13
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $2.63 |
||
|
14
|
14
11H-23111-00-00
Bolt, Cap
|
11H-23111-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
16G-23168-00-00 Cap, Front Fork |
16G-23168-00-00 |
from US $10.02 |
||
| replacement | |||||
|
15
|
15
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $3.94 |
||
|
16
|
16
16G-23119-01-00
Plug, Drain
|
16G-23119-01-00 |
— | ||
|
17
|
17
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
17
|
17
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.49 |
||
|
18
|
18
22U-23118-01-00 Spacer |
22U-23118-01-00 |
from US $5.51 |
||
|
19
|
19
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
20
|
20
22U-23103-01-00
Front Fork Assembly R
|
22U-23103-01-00 |
— | ||
|
21
|
21
22U-23136-01-38
Tube, Outer 2
Clear buffing |
22U-23136-01-38 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
Clear buffing |
999-99999-99-00 |
— | ||
|
22
|
22
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $3.97 |
||
|
23
|
23
15R-23145-00-00 Oil Seal |
15R-23145-00-00 |
from US $15.42 |
||
| replacement | |||||
|
23
|
23
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.56 |
||
|
24
|
24
15R-23144-00-00 Seal, Dust |
15R-23144-00-00 |
from US $21.88 |
||
| replacement | |||||
|
24
|
24
33M-23144-00-00 Seal, Dust (15R-23144-00) |
33M-23144-00-00 |
from US $24.53 |
||
|
25
|
25
22U-23110-01-00
Inner Tube 1
|
22U-23110-01-00 |
— | ||
|
26
|
26
22U-23170-00-00
Cylinder, Frtfrk
|
22U-23170-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
509-23151-L0-00
Spring, Rebound
|
509-23151-L0-00 |
— | ||
|
28
|
28
3R8-23173-L0-00 Spindle, Taper |
3R8-23173-L0-00 |
US $21.71 |
||
| replacements | |||||
|
28
|
28
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
28
|
28
3R6-23173-L0-00 Spindle, Taper |
3R6-23173-L0-00 |
from US $12.27 |
||
|
29
|
29
22U-23141-00-00
Spring, Front Fork
|
22U-23141-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $2.84 |
||
|
31
|
31
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.44 |
||
|
32
|
32
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $2.63 |
||
|
33
|
33
11H-23111-00-00
Bolt, Cap
|
11H-23111-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
16G-23168-00-00 Cap, Front Fork |
16G-23168-00-00 |
from US $10.02 |
||
| replacement | |||||
|
34
|
34
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $3.94 |
||
|
35
|
35
122-23119-01-00 Plug, Drain |
122-23119-01-00 |
US $1.28 |
||
| replacement | |||||
|
35
|
35
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
US $1.28 |
||
|
36
|
36
278-23181-00-00
New Genuine Part
|
278-23181-00-00 |
— | ||
|
37
|
37
97321-08045-00 Bolt |
97321-08045-00 |
from US $3.74 |
||
| replacement | |||||
|
37
|
37
97013-08045-00 Bolt |
97013-08045-00 |
from US $3.74 |
||
|
38
|
38
95311-08600-00 Nut |
95311-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
38
|
38
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.40 |
||
|
38
|
38
953-33086-00-00
Nut
|
953-33086-00-00 |
— | ||
|
39
|
39
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
40
|
40
22U-23118-01-00 Spacer |
22U-23118-01-00 |
from US $5.51 |
||
|
41
|
41
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
42
|
42
26R-23340-30-33
Under Bracket
Yamaha black |
26R-23340-30-33 |
— | ||
|
43
|
43
90119-08012-00 Bolt, With Washer |
90119-08012-00 |
from US $6.43 |
||
| replacement | |||||
|
43
|
43
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $5.17 |
||
