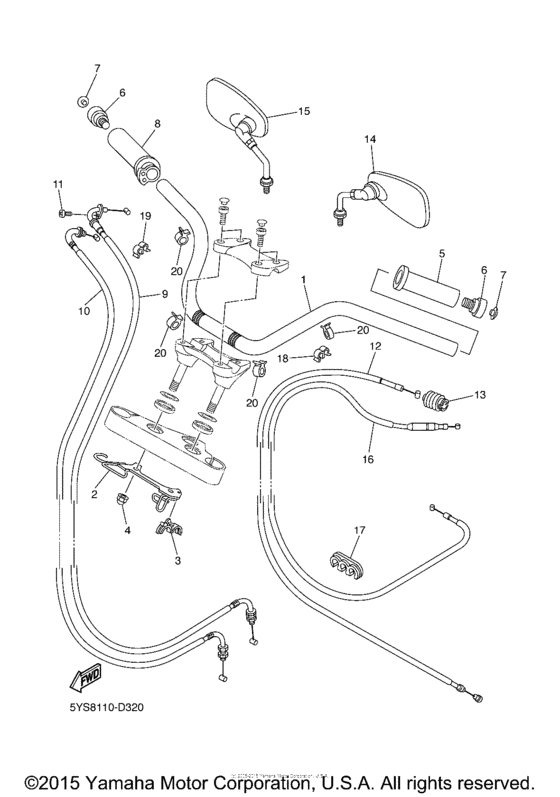

Steering handle & cable Diagram Yamaha XVS1100 V-Star Classic
- Year
- 2008
- Model code
- 23S2
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
5KS-26111-11-00 Handlebar |
5KS-26111-11-00 |
from US $204.55 |
||
2
|
2
5KS-23389-00-00 Guide, Cable |
5KS-23389-00-00 |
from US $45.03 |
||
3
|
3
90464-18246-00 Clamp(4Tr) |
90464-18246-00 |
from US $1.13 |
||
4
|
4
90176-12052-00 Nut, Crown |
90176-12052-00 |
from US $6.71 |
||
5
|
5
4NK-26241-00-00 Grip(Left) |
4NK-26241-00-00 |
from US $33.81 |
||
replacement | |||||
5
|
5
4NK-26241-01-00 |
4NK-26241-01-00 |
US $37.98 |
||
6
|
6
5EL-26246-00-00 End, Grip |
5EL-26246-00-00 |
from US $34.69 |
||
7
|
7
5EL-23469-00-00 Cap, Bolt |
5EL-23469-00-00 |
from US $1.80 |
||
8
|
8
4XY-26240-00-00 Grip Assy |
4XY-26240-00-00 |
from US $42.86 |
||
9
|
9
5KS-26311-10-00 Cable, Throttle 1 |
5KS-26311-10-00 |
from US $42.69 |
||
10
|
10
5KS-26312-10-00 Cable, Throttle 2 |
5KS-26312-10-00 |
from US $42.24 |
||
11
|
11
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $0.90 |
||
12
|
12
5KS-26335-00-00 Cable, clutch |
5KS-26335-00-00 |
from US $33.81 |
||
13
|
13
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $13.91 |
||
14
|
14
4NK-26280-10-00 Rear View Mirror Assy (Left) |
4NK-26280-10-00 |
from US $60.04 |
||
15
|
15
4NK-26290-10-00 Rear View Mirror Assy (Right) |
4NK-26290-10-00 |
from US $60.04 |
||
16
|
16
5EL-26331-00-00 Cable, Starter 1 |
5EL-26331-00-00 |
from US $27.72 |
||
17
|
17
90464-07003-00 Clamp |
90464-07003-00 |
from US $1.80 |
||
18
|
18
90468-15139-00 Clip |
90468-15139-00 |
from US $1.65 |
||
19
|
19
90464-06214-00 Clamp |
90464-06214-00 |
from US $1.65 |
||
20
|
20
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.65 |
