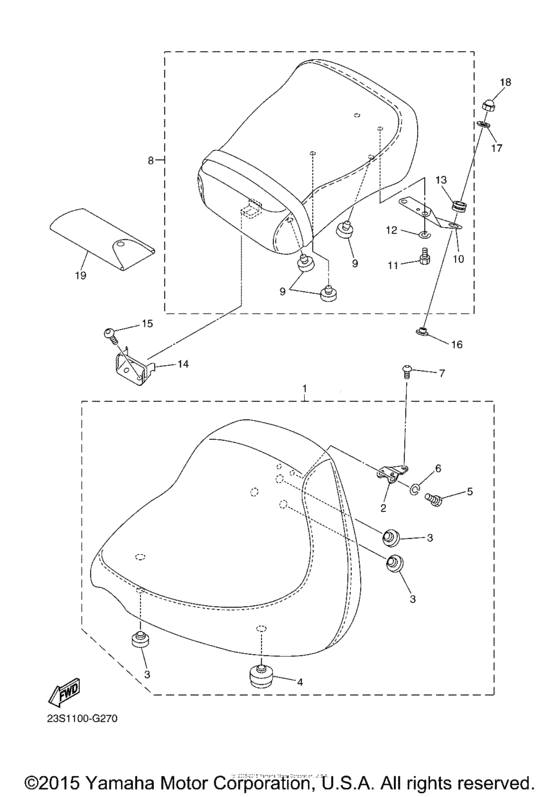

Seat Diagram Yamaha XVS1100 V-Star Classic
- Year
- 2009
- Model code
- 23S6
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
5KS-24710-00-00 Single Seat Assy |
5KS-24710-00-00 |
from US $359.25 |
||
2
|
2
5KS-2475H-00-00 Bracket, Seat Lever 1 |
5KS-2475H-00-00 |
from US $14.96 |
||
3
|
3
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.54 |
||
4
|
4
1T4-24741-00-00 Pad, Seat |
1T4-24741-00-00 |
from US $8.23 |
||
5
|
5
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
replacement | |||||
5
|
5
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.05 |
||
6
|
6
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $1.28 |
||
7
|
7
92014-08012-00 Bolt, Button Head |
92014-08012-00 |
from US $1.80 |
||
8
|
8
5KS-24750-31-00 Tandem Seat Assy |
5KS-24750-31-00 |
from US $205.97 |
||
9
|
9
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.54 |
||
10
|
10
5YS-2475J-00-00 Bracket, Seat Lever 2 |
5YS-2475J-00-00 |
from US $14.51 |
||
11
|
11
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
replacement | |||||
11
|
11
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.05 |
||
12
|
12
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $1.28 |
||
13
|
13
5YS-24742-00-00 Grommet |
5YS-24742-00-00 |
from US $1.65 |
||
14
|
14
5KS-2475N-00-00 Bracket |
5KS-2475N-00-00 |
from US $17.50 |
||
15
|
15
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.50 |
||
16
|
16
5YS-2471N-00-00 Collar, 1 |
5YS-2471N-00-00 |
from US $6.39 |
||
17
|
17
90201-08042-00 Washer, Plain |
90201-08042-00 |
from US $2.24 |
||
18
|
18
90176-08002-00 Nut, Crown |
90176-08002-00 |
from US $4.36 |
||
19
|
19
5EL-28100-10-00 Tool Kit |
5EL-28100-10-00 |
from US $60.77 |
