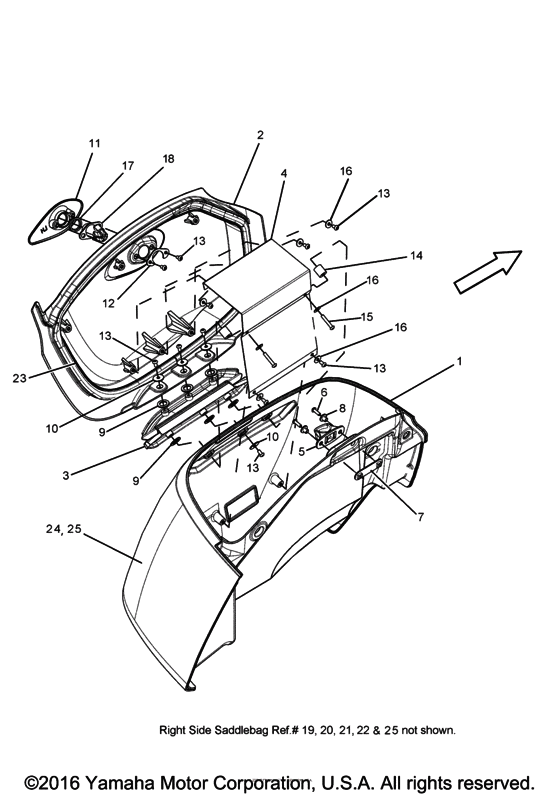

Saddlebags Diagram Yamaha XVS1300 V-Star Deluxe
- Year
- 2016
- Colour
- Dark Bluish Gray Metallic 8
- Model code
- 2CAG
- Sales region
- USA
- Базовая модель
- XVS13BGG
- Engine Capacity
- 1300
- Color Variant
- A
- Model
- XVS1300CTF (V-Star Deluxe)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CA-F841L-R1-00 BodyLEFT |
2CA-F841L-R1-00 |
US $814.45 |
||
|
2
|
2
2CA-F844B-R1-00 Lid, 1LEFT, INCL. SEAL, 1 |
2CA-F844B-R1-00 |
US $577.82 |
||
|
3
|
3
5S6-F8444-T0-00 **HINGE 1 - BLACK -LEFT |
5S6-F8444-T0-00 |
US $69.86 |
||
|
4
|
4
2CA-F845L-V0-00 Open, Stopper 1 |
2CA-F845L-V0-00 |
US $19.39 |
||
|
5
|
5
2CA-F849G-V0-00
Stopper, Saddlebag
|
2CA-F849G-V0-00 |
— | ||
|
6
|
6
901-11058-12-00 Bolt, Button Head |
901-11058-12-00 |
US $2.83 |
||
|
7
|
7
2C5-F841F-00-00 Plate |
2C5-F841F-00-00 |
US $2.65 |
||
|
8
|
8
2C5-F848U-00-00 Collar 1 |
2C5-F848U-00-00 |
US $0.59 |
||
|
9
|
9
5S6-F8487-00-00 Plate, 2 |
5S6-F8487-00-00 |
US $0.27 |
||
|
10
|
10
2C5-F8497-00-00
Plate, 2
|
2C5-F8497-00-00 |
— | ||
|
11
|
11
2C5-F849K-V0-00 Cover, Lock Assy 2LEFT |
2C5-F849K-V0-00 |
US $10.42 |
||
|
12
|
12
2C5-F848T-00-00 Plate, Lock 1 |
2C5-F848T-00-00 |
from US $6.62 |
||
|
13
|
13
90111-05X05-00 Bolt, Button Head |
90111-05X05-00 |
US $6.46 |
||
|
14
|
14
2CA-F8467-V0-00 Spacer |
2CA-F8467-V0-00 |
US $6.80 |
||
|
15
|
15
901-11058-13-00 Bolt, Button Head |
901-11058-13-00 |
US $3.83 |
||
|
16
|
16
90201-05802-00 Washer, Plain |
90201-05802-00 |
from US $1.32 |
||
| replacement | |||||
|
16
|
16
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.65 |
||
|
17
|
17
5S6-28428-00-00 Seal 1 |
5S6-28428-00-00 |
from US $3.24 |
||
|
18
|
18
5S6-28408-00-00 Lock Assy 1 |
5S6-28408-00-00 |
from US $73.57 |
||
|
19
|
19
2CA-F841M-R1-00 Body, 2RIGHT, NOT SHOWN |
2CA-F841M-R1-00 |
US $908.98 |
||
|
20
|
20
2CA-F844C-R1-00 Lid, 2RIGHT, NOT SHOWN, INCL. SEAL, 1 |
2CA-F844C-R1-00 |
US $595.37 |
||
|
21
|
21
5S6-F845E-T0-00
Hinge 1, Right
RIGHT, NOT SHOWN |
5S6-F845E-T0-00 |
— | ||
|
22
|
22
2C5-F8493-V0-00 Cover Lock Assy 1, RightRIGHT, NOT SHOWN |
2C5-F8493-V0-00 |
US $10.42 |
||
|
23
|
23
2CA-F8428-V0-00 Seal, 1RIGHT AND LEFT |
2CA-F8428-V0-00 |
US $36.49 |
||
|
24
|
24
2CA-F841G-T0-00 GRAPHIC 1 - SADDLEBA |
2CA-F841G-T0-00 |
US $13.54 |
||
|
25
|
25
2CA-F842G-T0-00 GRAPHIC 2 - SADDLEBA |
2CA-F842G-T0-00 |
US $13.54 |
||
