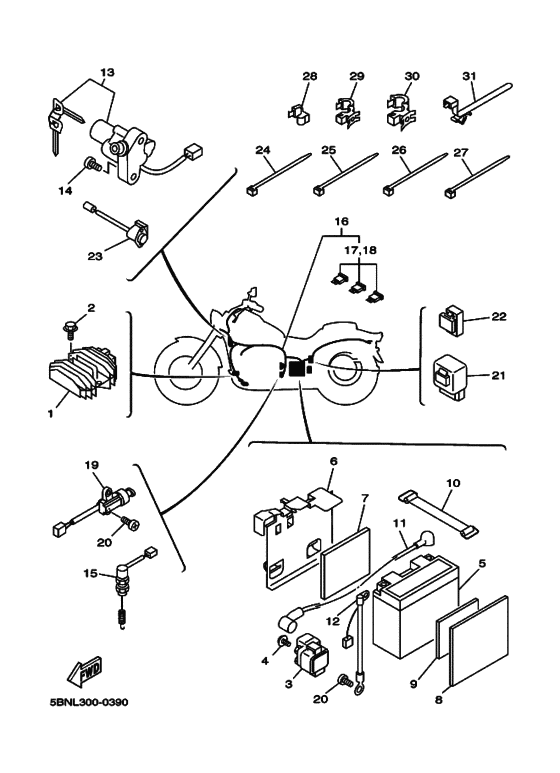

Electrical 1 Diagram Yamaha XVS650 Drag Star Classic
- Year
- 2000
- Colour
- Deep Reddish Yellow Cocktail 1 (DRYC1; 0625)
- Model code
- 5BNP
- Sales region
- Europe (060)
- Базовая модель
- XVS650A
- Engine Capacity
- 650
- Color Variant
- B
- Model
- XVS650A (Drag Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BN-81960-00-00 Rectifier & Regulator Assy |
5BN-81960-00-00 |
from US $130.45 |
||
|
2
|
2
95804-06020-00 Bolt, Flange |
95804-06020-00 |
from US $1.43 |
||
| replacement | |||||
|
2
|
2
95814-06020-00 Bolt, Flange |
95814-06020-00 |
from US $1.43 |
||
|
3
|
3
4BH-81940-00-00 Starter Relay Assy (Rc19-005) |
4BH-81940-00-00 |
from US $90.86 |
||
| replacement | |||||
|
3
|
3
4BH-81940-02-00 Starter Relay Assy (Rc19-005) |
4BH-81940-02-00 |
from US $90.86 |
||
|
4
|
4
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
5
|
5
4TX-82100-01-00
Gt12B4 Gs Battery -
|
4TX-82100-01-00 |
— | ||
| replacements | |||||
|
5
|
5
GT1-2B400-00-00
element
|
GT1-2B400-00-00 |
— | ||
|
5
|
5
YT1-2BBS0-00-00
Bat Yt12B-Bs (Pt12B-4) Yu
|
YT1-2BBS0-00-00 |
— | ||
|
6
|
6
5BN-82129-00-00 Cover, Battery |
5BN-82129-00-00 |
from US $32.91 |
||
|
7
|
7
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $4.04 |
||
|
8
|
8
4VR-2176E-00-00 Plate |
4VR-2176E-00-00 |
from US $14.21 |
||
|
9
|
9
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $4.04 |
||
|
10
|
10
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.57 |
||
|
11
|
11
5BN-82115-00-00 Wire, Plus Lead |
5BN-82115-00-00 |
from US $29.02 |
||
|
12
|
12
5BN-82116-00-00 Wire, Minus Lead |
5BN-82116-00-00 |
from US $19.01 |
||
|
13
|
13
4VR-82501-00-00 Main Switch Steeri |
4VR-82501-00-00 |
from US $159.20 |
||
| replacement | |||||
|
13
|
13
4VR-82501-01-00 Main Switch Steering Lock |
4VR-82501-01-00 |
from US $159.20 |
||
|
14
|
14
92017-08020-00 Bolt, Button |
92017-08020-00 |
from US $0.90 |
||
|
15
|
15
3HN-82530-11-00
Stop Switch Assy
|
3HN-82530-11-00 |
— | ||
| replacement | |||||
|
15
|
15
3HN-82530-13-00 STOP SWITCH ASSY |
3HN-82530-13-00 |
from US $29.77 |
||
|
16
|
16
5BN-82590-00-00 Wire Harness Assy |
5BN-82590-00-00 |
US $362.18 |
||
| replacement | |||||
|
16
|
16
5BN-82590-01-00 Wire Harness Assy |
5BN-82590-01-00 |
US $362.18 |
||
|
17
|
17
36Y-82151-00-00 Fuse (15A-Blue) |
36Y-82151-00-00 |
from US $2.84 |
||
|
18
|
18
42X-82151-00-00 Fuse (10A-Bl) |
42X-82151-00-00 |
from US $1.22 |
||
|
19
|
19
3LD-82566-80-00 Switch, Side Stand |
3LD-82566-80-00 |
from US $64.87 |
||
| replacement | |||||
|
19
|
19
3LD-82566-B0-00 Switch, Side Stand |
3LD-82566-B0-00 |
from US $51.19 |
||
|
20
|
20
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
20
|
20
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.43 |
||
|
21
|
21
3EN-81950-00-00 Relay Assy (3En-00) |
3EN-81950-00-00 |
from US $108.10 |
||
| replacement | |||||
|
21
|
21
3EN-81950-01-00 Relay Assy |
3EN-81950-01-00 |
from US $83.03 |
||
|
22
|
22
1UY-81950-92-00 Relay Assy (1Uy-92) |
1UY-81950-92-00 |
from US $24.03 |
||
|
23
|
23
4TR-82560-00-00 Thermo Switch Assy |
4TR-82560-00-00 |
US $68.53 |
||
|
24
|
24
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.13 |
||
|
25
|
25
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.13 |
||
|
26
|
26
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.13 |
||
|
27
|
27
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.13 |
||
|
28
|
28
90464-05188-00 Clamp |
90464-05188-00 |
from US $1.65 |
||
|
29
|
29
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.65 |
||
|
30
|
30
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.65 |
||
|
31
|
31
90464-20213-00 Clamp |
90464-20213-00 |
from US $1.65 |
||
