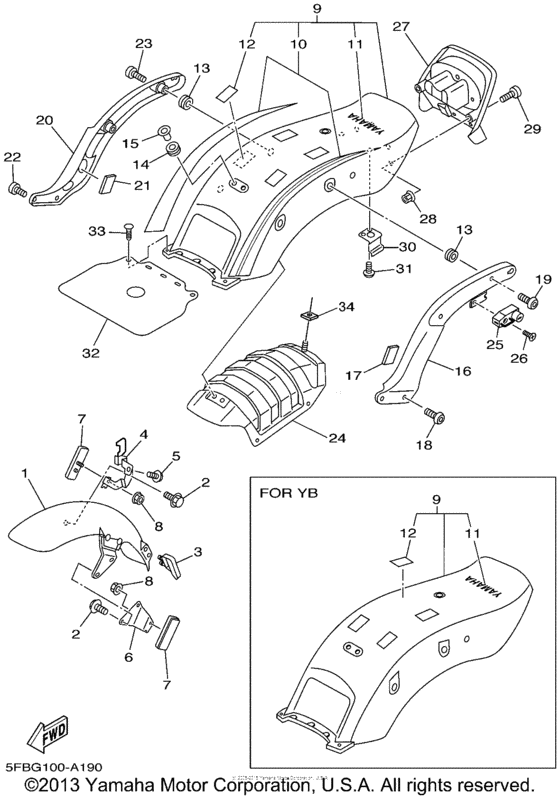

Fender Diagram Yamaha XVS650 V-Star Custom

Year
2002
Model code
5FBG
Sales region
USA
Базовая модель
XVS650P
Engine Capacity
650
Model
XVS650 (V-Star Custom)

Difficulties in parts search?

Parts list
Fender

Difficulties in parts search?

Fender
Description OEM Part # Price
1
1

4TR-21510-02-33

Front Fender Comp

for Color YAMAHA BLACK YB / 0033

4TR-21510-02-33

from US $108.86

1
1
4TR-21510-02-PA
Front Fender Comp.

for Color DARK GRAYISH PURPLE METALLIC 1 DNPM1 / 0740

4TR-21510-02-PA

2
2

95027-08012-00

Bolt, Flange

95027-08012-00

from US $1.50

3
3

4VR-21518-00-00

Holder, Cable

4VR-21518-00-00

from US $3.56

4
4

5FB-21598-01-00

Holder, Wire 2

5FB-21598-01-00

US $36.77

5
5
958-07060-12-00
Bolt, Flange

958-07060-12-00

replacement
5
5

958-17060-12-00

Bolt, Flange

958-17060-12-00

from US $0.90

6
6

5FB-85112-00-00

Bracket, Reflector 1

5FB-85112-00-00

US $13.59

7
7

11H-85110-01-00

Reflector Assy

11H-85110-01-00

from US $15.56

8
8

95707-05500-00

Nut, Flange

95707-05500-00

from US $0.90

9
9

4TR-Y2161-V1-PB

Rear Fender Comp.

for Color DARK GRAYISH PURPLE METALLIC 1 DNPM1 / 0740

4TR-Y2161-V1-PB

US $349.13

replacement
9
9

4TR-W2161-V1-PB

FUEL TANK COMP.

for Color DARK GRAYISH PURPLE METALLIC 1 DNPM1 / 0740

4TR-W2161-V1-PB

US $349.13

9
9

4TR-W2161-J1-33

Rear Fender Comp

for Color YAMAHA BLACK YB / 0033

4TR-W2161-J1-33

from US $402.23

10
10
5FB-2165A-10-00
Graphic Set, Rear Fender

for Color DARK GRAYISH PURPLE METALLIC 1 DNPM1 / 0740

5FB-2165A-10-00

11
11

99247-00080-00

Emblem, Yamaha

99247-00080-00

from US $7.48

12
12

3SP-21732-00-00

Seal 1

3SP-21732-00-00

from US $8.38

13
13

90480-18418-00

Grommet

90480-18418-00

from US $2.54

replacement
13
13

90480-18495-00

Grommet(3Ak)

90480-18495-00

from US $2.54

14
14
904-80133-98-00
Grommet

904-80133-98-00

replacement
14
14

90480-13014-00

Grommet

90480-13014-00

from US $2.09

15
15

90387-067N5-00

Collar

90387-067N5-00

from US $4.34

16
16

4TR-21613-01-00

Stay, Fender 1

4TR-21613-01-00

from US $293.67

17
17

3SX-2139X-00-00

Damper

3SX-2139X-00-00

from US $1.13

18
18

92014-10025-00

Bolt, Button Head

92014-10025-00

from US $3.59

19
19

92014-08040-00

Bolt, Button Head

92014-08040-00

from US $2.39

20
20

4TR-21614-01-00

Stay, Fender 2

4TR-21614-01-00

from US $293.67

21
21

3SX-2139X-00-00

Damper

3SX-2139X-00-00

from US $1.13

22
22

92014-10025-00

Bolt, Button Head

92014-10025-00

from US $3.59

23
23

92014-08040-00

Bolt, Button Head

92014-08040-00

from US $2.39

24
24

4TR-21643-00-00

Stay, Rear

4TR-21643-00-00

from US $99.27

replacement
24
24

4TR-21643-01-00

Stay, Rear

4TR-21643-01-00

from US $99.27

25
25
4R8-21308-00-00
Helmet Hanger Assy

4R8-21308-00-00

replacement
25
25

26H-21308-01-00

Helmet Hanger Assy

26H-21308-01-00

from US $44.85

26
26

90149-06154-00

Screw

90149-06154-00

from US $1.50

27
27

5FB-2162R-00-00

Fender 2

5FB-2162R-00-00

from US $16.74

28
28

901-79055-23-00

Nut

901-79055-23-00

from US $2.99

29
29

90154-05011-00

Screw, Binding

90154-05011-00

from US $1.65

30
30

4TR-21679-00-00

Holder, Harness

4TR-21679-00-00

from US $3.82

31
31

90167-05025-00

Screw, Truss Head Tapping

90167-05025-00

from US $1.13

replacement
31
31

97707-50012-00

Screw, Truss Head Tapping

97707-50012-00

from US $1.13

32
32

4TR-21629-00-00

Guard, Mud

4TR-21629-00-00

from US $18.91

33
33

90269-05039-00

Rivet

90269-05039-00

from US $1.65

replacement
33
33

90269-05055-00

Rivet

90269-05055-00

from US $1.65

34
34

5FB-24737-00-00

Damper

5FB-24737-00-00

from US $1.80

Fender Diagram Yamaha XVS650 V-Star Custom USA 14527412-809769
