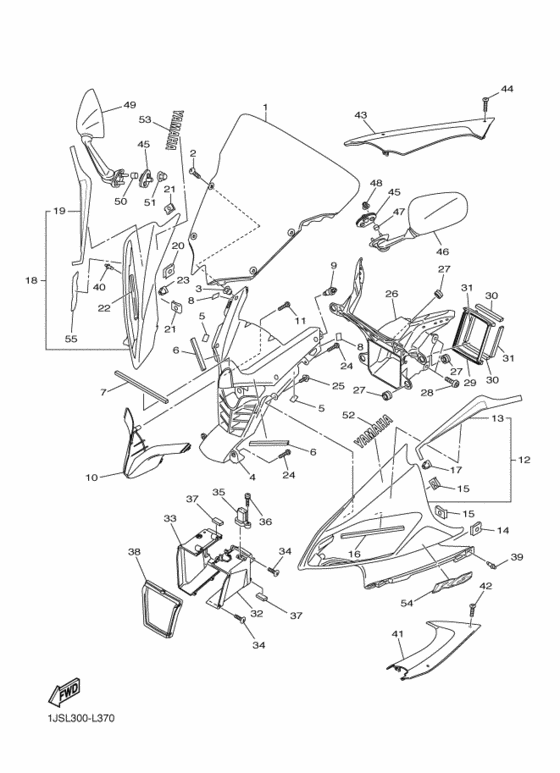

Cowling 1 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2012
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 1JSL
- Sales region
- Europe (070)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
13S-28381-00-00 Windshield |
13S-28381-00-00 |
US $79.47 |
||
2
|
2
90150-05023-00 Screw, Round Head |
90150-05023-00 |
from US $1.94 |
||
3
|
3
901-79055-23-00 Nut |
901-79055-23-00 |
from US $2.99 |
||
4
|
4
13S-2836K-00-00 Panel, Inner 1 |
13S-2836K-00-00 |
from US $24.38 |
||
5
|
5
3P6-28217-00-00 Damper 1 |
3P6-28217-00-00 |
from US $0.47 |
||
6
|
6
13S-28227-00-00 Damper 2 |
13S-28227-00-00 |
from US $1.03 |
||
7
|
7
13S-28237-00-00 Damper 3 |
13S-28237-00-00 |
from US $0.56 |
||
8
|
8
13S-28371-00-00 Damper |
13S-28371-00-00 |
from US $0.65 |
||
9
|
9
90269-06046-00 Rivet |
90269-06046-00 |
from US $1.65 |
||
replacement | |||||
9
|
9
90269-06001-00 Rivet |
90269-06001-00 |
from US $1.50 |
||
10
|
10
13S-28365-10-00 Cover |
13S-28365-10-00 |
from US $11.67 |
||
11
|
11
97702-40016-00 Screw, Tapping |
97702-40016-00 |
from US $1.43 |
||
replacement | |||||
11
|
11
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.43 |
||
12
|
12
13S-Y280G-00-0X Body, Front Upper 1BWC1/VRC1 |
13S-Y280G-00-0X |
from US $176.41 |
||
13
|
13
13S-2832B-F0-00 Graphic, 1515 |
13S-2832B-F0-00 |
from US $13.80 |
||
14
|
14
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
replacement | |||||
14
|
14
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.80 |
||
15
|
15
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.28 |
||
16
|
16
2C0-28455-00-00 Damper, 4 |
2C0-28455-00-00 |
from US $1.26 |
||
17
|
17
90480-01605-00 Grommet |
90480-01605-00 |
from US $1.22 |
||
18
|
18
13S-Y280H-00-0X Body, Front Upper 2BWC1/VRC1 |
13S-Y280H-00-0X |
from US $176.41 |
||
19
|
19
13S-2832C-F0-00 Graphic, 1616 |
13S-2832C-F0-00 |
US $19.67 |
||
20
|
20
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
replacement | |||||
20
|
20
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.80 |
||
21
|
21
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.28 |
||
22
|
22
2C0-28455-00-00 Damper, 4 |
2C0-28455-00-00 |
from US $1.26 |
||
23
|
23
90480-01605-00 Grommet |
90480-01605-00 |
from US $1.22 |
||
24
|
24
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
replacement | |||||
24
|
24
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.65 |
||
25
|
25
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.43 |
||
26
|
26
13S-28356-00-00 Stay 1 |
13S-28356-00-00 |
from US $224.96 |
||
27
|
27
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.80 |
||
28
|
28
90111-06116-00 Bolt, Hex. Socket Button |
90111-06116-00 |
from US $1.43 |
||
29
|
29
2C0-28342-01-00 Joint |
2C0-28342-01-00 |
from US $3.74 |
||
replacement | |||||
29
|
29
2C0-28342-02-00 JOINT |
2C0-28342-02-00 |
US $5.26 |
||
30
|
30
2C0-28217-00-00 Damper 1 |
2C0-28217-00-00 |
from US $1.65 |
||
31
|
31
2C0-28227-00-00 Damper 2 |
2C0-28227-00-00 |
from US $1.22 |
||
32
|
32
13S-2838R-00-00 Duct 2 |
13S-2838R-00-00 |
from US $6.88 |
||
33
|
33
13S-2838T-00-00 Duct 3 |
13S-2838T-00-00 |
from US $6.88 |
||
34
|
34
97702-40016-00 Screw, Tapping |
97702-40016-00 |
from US $1.43 |
||
replacement | |||||
34
|
34
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.43 |
||
35
|
35
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.44 |
||
36
|
36
97702-50116-00 Screw, Tapping |
97702-50116-00 |
from US $1.35 |
||
replacement | |||||
36
|
36
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.35 |
||
37
|
37
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.80 |
||
38
|
38
2C0-28371-00-00 Damper |
2C0-28371-00-00 |
from US $12.42 |
||
39
|
39
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.50 |
||
40
|
40
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.50 |
||
41
|
41
13S-2837L-00-00 Panel, Console 1 |
13S-2837L-00-00 |
from US $12.42 |
||
42
|
42
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.65 |
||
43
|
43
13S-2837M-00-00 Panel, Console 2 |
13S-2837M-00-00 |
from US $12.42 |
||
44
|
44
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.65 |
||
45
|
45
13S-26298-00-00 Plate, Mirror Fitting 1 |
13S-26298-00-00 |
from US $3.74 |
||
46
|
46
13S-26280-10-00 Rear View Mirror Assy (Left) |
13S-26280-10-00 |
from US $102.11 |
||
47
|
47
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.06 |
||
48
|
48
90176-06008-00 Nut, Crown |
90176-06008-00 |
from US $1.65 |
||
49
|
49
13S-26290-10-00 Rear View Mirror Assy (Right) |
13S-26290-10-00 |
from US $102.11 |
||
50
|
50
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.06 |
||
51
|
51
90176-06008-00 Nut, Crown |
90176-06008-00 |
from US $1.65 |
||
52
|
52
1JS-2153B-10-00 Emblem, Yamaha |
1JS-2153B-10-00 |
from US $3.82 |
||
53
|
53
1JS-2153B-10-00 Emblem, Yamaha |
1JS-2153B-10-00 |
from US $3.82 |
||
54
|
54
1JS-28328-30-00 Emblem |
1JS-28328-30-00 |
from US $8.17 |
||
55
|
55
1JS-28328-30-00 Emblem |
1JS-28328-30-00 |
from US $8.17 |
