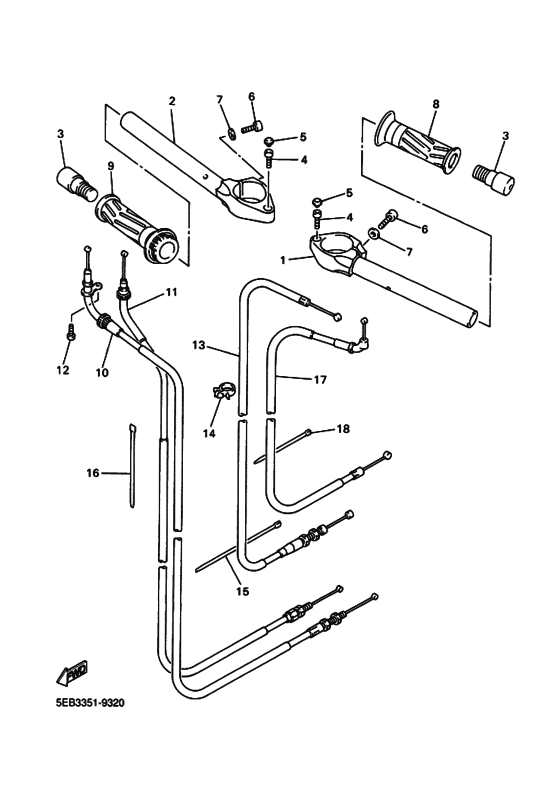

Steering handle & cable Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 5EB1
- Sales region
- Europe (050)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-26121-00-00 Handlebar (Left) |
5EB-26121-00-00 |
from US $218 |
||
|
2
|
2
5EB-26122-00-00 Handlebar (Right) |
5EB-26122-00-00 |
from US $218 |
||
|
3
|
3
5EB-26246-00-00 End, Grip |
5EB-26246-00-00 |
from US $18.52 |
||
|
4
|
4
91317-06020-00 Bolt |
91317-06020-00 |
from US $0.90 |
||
|
5
|
5
2H9-23469-00-00 Plug |
2H9-23469-00-00 |
from US $1.13 |
||
| replacement | |||||
|
5
|
5
903-38050-10-00 Plug |
903-38050-10-00 |
from US $1.13 |
||
|
6
|
6
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $0.90 |
||
|
7
|
7
90201-086J0-00 Washer, Plate |
90201-086J0-00 |
from US $1.20 |
||
|
8
|
8
4YR-26241-01-00 Grip (Left) |
4YR-26241-01-00 |
from US $15.34 |
||
| replacements | |||||
|
8
|
8
4YR-26241-02-00
Grip (Left)
|
4YR-26241-02-00 |
— | ||
|
8
|
8
4YR-26241-03-00 Grip |
4YR-26241-03-00 |
from US $10.74 |
||
|
9
|
9
5EB-26240-00-00 Grip Assy |
5EB-26240-00-00 |
from US $24.24 |
||
| replacements | |||||
|
9
|
9
5EB-26240-01-00 Grip Assy |
5EB-26240-01-00 |
from US $22.45 |
||
|
9
|
9
5EB-26240-02-00 |
5EB-26240-02-00 |
US $20.56 |
||
|
10
|
10
5EB-26311-00-00 Cable, Throttle 1 |
5EB-26311-00-00 |
from US $41.74 |
||
|
11
|
11
5EB-26312-00-00 Cable, Throttle 2 |
5EB-26312-00-00 |
from US $41.74 |
||
|
12
|
12
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
12
|
12
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.05 |
||
|
13
|
13
5EB-26335-00-00 Cable, clutch |
5EB-26335-00-00 |
from US $33.48 |
||
|
14
|
14
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.65 |
||
|
15
|
15
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.20 |
||
|
16
|
16
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.13 |
||
|
17
|
17
5EB-26331-00-00 Cable, Starter 1 |
5EB-26331-00-00 |
from US $23.35 |
||
|
18
|
18
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.65 |
||
| replacement | |||||
|
18
|
18
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.20 |
||
