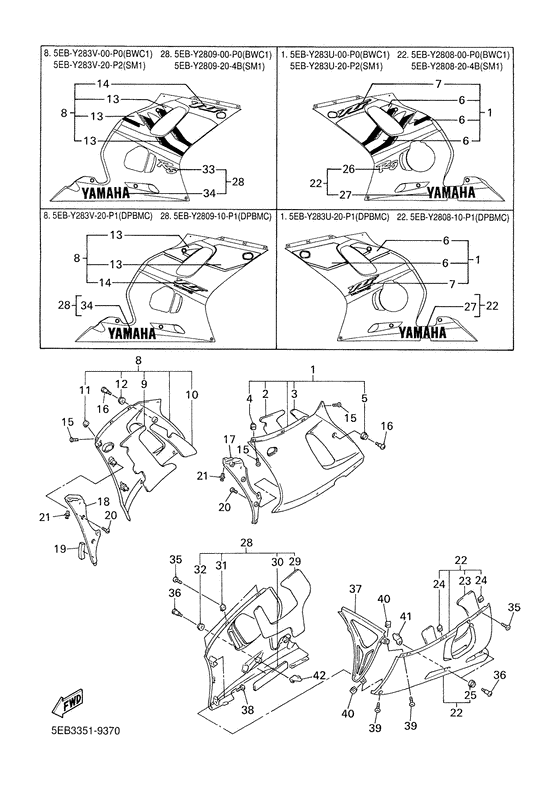

Cowling 2 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EB3
- Sales region
- France (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EB-Y283U-00-P0 Panel Assembly 1Ur bwc1 |
5EB-Y283U-00-P0 |
US $628.09 |
||
|
01
|
01
5EB-Y283U-20-P1 Panel Assembly 1Ur dpbmc |
5EB-Y283U-20-P1 |
US $628.09 |
||
|
01
|
01
5EB-Y283U-20-P2
Panel Assembly 1
Ur sm1 |
5EB-Y283U-20-P2 |
— | ||
|
02
|
02
5EB-28415-00-00 Damper 1 |
5EB-28415-00-00 |
from US $14.25 |
||
|
03
|
03
5EB-28416-00-00 Damper 2 |
5EB-28416-00-00 |
from US $5.87 |
||
|
04
|
04
90183-05024-00 Nut, Spring |
90183-05024-00 |
from US $1.50 |
||
| replacement | |||||
|
04
|
04
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.50 |
||
|
05
|
05
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
05
|
05
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.09 |
||
|
06
|
06
5EB-28301-00-00 Graphic Set, Lower Cover 1Ur pour bwc1 |
5EB-28301-00-00 |
from US $135.31 |
||
|
06
|
06
5EB-28301-10-00 Graphic Set, Lower Cover 1Ur pour sm1 |
5EB-28301-10-00 |
US $150.60 |
||
|
06
|
06
5EB-28304-00-00 Graphicset, Lower Cover 3Ur pour dpbmc |
5EB-28304-00-00 |
from US $109.30 |
||
|
07
|
07
5EB-28338-00-00
Emblem
Ur pour dpbmc |
5EB-28338-00-00 |
— | ||
|
07
|
07
5EB-2839H-00-00 Emblem 1Ur pour bwc1 |
5EB-2839H-00-00 |
US $23.54 |
||
|
07
|
07
5EB-2839H-10-00
Emblem 1
Ur pour sm1 |
5EB-2839H-10-00 |
— | ||
|
08
|
08
5EB-Y283V-20-P1 Panel Assembly 2Ur dpbmc |
5EB-Y283V-20-P1 |
US $610.49 |
||
|
08
|
08
5EB-Y283V-20-P2
Panel Assembly 2
Ur sm1 |
5EB-Y283V-20-P2 |
— | ||
|
08
|
08
5EB-Y283V-00-P0 Panel Assembly 2Ur bwc1 |
5EB-Y283V-00-P0 |
US $628.09 |
||
|
09
|
09
5EB-28415-10-00 Damper 1 |
5EB-28415-10-00 |
from US $14.25 |
||
|
10
|
10
5EB-28416-10-00 Damper 2 |
5EB-28416-10-00 |
from US $5.87 |
||
|
11
|
11
90183-05024-00 Nut, Spring |
90183-05024-00 |
from US $1.50 |
||
| replacement | |||||
|
11
|
11
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.50 |
||
|
12
|
12
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
12
|
12
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.09 |
||
|
13
|
13
5EB-28303-00-00 Graphic Set, Lower Cover 2Ur pour bwc1 |
5EB-28303-00-00 |
US $120.31 |
||
|
13
|
13
5EB-28303-10-00
Graphic Set, Lower Cover 2
Ur pour sm1 |
5EB-28303-10-00 |
— | ||
|
13
|
13
5EB-28305-00-00 Under Cover Graphic Set, 4Ur pour dpbmc |
5EB-28305-00-00 |
US $91.94 |
||
|
14
|
14
5EB-2839H-10-00
Emblem 1
Ur pour sm1 |
5EB-2839H-10-00 |
— | ||
|
14
|
14
5EB-28338-00-00
Emblem
Ur pour dpbmc |
5EB-28338-00-00 |
— | ||
|
14
|
14
5EB-2839H-00-00 Emblem 1Ur pour bwc1 |
5EB-2839H-00-00 |
US $23.54 |
||
|
15
|
15
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.24 |
||
|
16
|
16
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.65 |
||
|
17
|
17
5EB-2836K-00-00 Panel, Inner 1 |
5EB-2836K-00-00 |
from US $61.47 |
||
|
18
|
18
5EB-2836L-00-00 Panel, Inner 2 |
5EB-2836L-00-00 |
from US $66.10 |
||
|
19
|
19
8U9-77268-00-00 Lining, Shroud 8 |
8U9-77268-00-00 |
from US $0.76 |
||
|
20
|
20
97704-40012-00 Screw, Tapping |
97704-40012-00 |
from US $1.26 |
||
|
21
|
21
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.65 |
||
|
22
|
22
5EB-Y2808-10-P1
Cover Assembly, Under
Ur dpbmc |
5EB-Y2808-10-P1 |
— | ||
| replacement | |||||
|
22
|
22
5EB-W2808-10-P1
Cover Assy, Under
Ur dpbmc |
5EB-W2808-10-P1 |
— | ||
|
22
|
22
5EB-Y2808-20-4B
Cover Assy, Under
Ur bl2 pour sm1 |
5EB-Y2808-20-4B |
— | ||
|
22
|
22
5EB-Y2808-00-P0 Cover Assembly, UnderUr mbl2 pour bwc1 |
5EB-Y2808-00-P0 |
US $489.44 |
||
|
23
|
23
5EB-2834E-00-00 Damper |
5EB-2834E-00-00 |
from US $12.89 |
||
|
24
|
24
90183-05024-00 Nut, Spring |
90183-05024-00 |
from US $1.50 |
||
| replacement | |||||
|
24
|
24
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.50 |
||
|
25
|
25
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
25
|
25
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.09 |
||
|
26
|
26
5EB-28328-00-00
Emblem
Ur pour bwc1 |
5EB-28328-00-00 |
— | ||
|
26
|
26
5EB-28328-10-00
Emblem
Ur pour sm1 |
5EB-28328-10-00 |
— | ||
|
27
|
27
4XV-2153E-00-00
Emblem, Yamaha
Ur pour dpbmc |
4XV-2153E-00-00 |
— | ||
|
27
|
27
4XV-2153E-20-00
Emblem, Yamaha
Ur pour bwc1,sm1 |
4XV-2153E-20-00 |
— | ||
|
28
|
28
5EB-Y2809-00-P0 Cover Assembly 2, UnderUr mbl2 pour bwc1 |
5EB-Y2809-00-P0 |
US $499.73 |
||
| replacement | |||||
|
28
|
28
5EB-W2809-00-P0 Cover Assy 2, UnderUr mbl2 pour bwc1 |
5EB-W2809-00-P0 |
US $481.41 |
||
|
28
|
28
5EB-Y2809-10-P1 Cover Assembly 2, UnderUr dpbmc |
5EB-Y2809-10-P1 |
US $464.69 |
||
| replacement | |||||
|
28
|
28
5EB-W2809-10-P1
Cover Assy 2, Under
Ur dpbmc |
5EB-W2809-10-P1 |
— | ||
|
28
|
28
5EB-Y2809-20-4B
Cover Assy 2, Under
Ur bl2 pour sm1 |
5EB-Y2809-20-4B |
— | ||
| replacements | |||||
|
28
|
28
5EB-W2809-20-P3
Cover Assy 2, Under
Ur bl2 pour sm1 |
5EB-W2809-20-P3 |
— | ||
|
28
|
28
5EB-W2809-20-4B
Cover Assy 2, Under
Ur bl2 pour sm1 |
5EB-W2809-20-4B |
— | ||
|
29
|
29
5EB-2834F-00-00 Damper |
5EB-2834F-00-00 |
from US $14.10 |
||
|
30
|
30
5EB-2838G-00-00 Seat 1 |
5EB-2838G-00-00 |
US $5.65 |
||
|
31
|
31
90183-05024-00 Nut, Spring |
90183-05024-00 |
from US $1.50 |
||
| replacement | |||||
|
31
|
31
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.50 |
||
|
32
|
32
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
32
|
32
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.09 |
||
|
33
|
33
5EB-28328-10-00
Emblem
Ur pour sm1 |
5EB-28328-10-00 |
— | ||
|
33
|
33
5EB-28328-00-00
Emblem
Ur pour bwc1 |
5EB-28328-00-00 |
— | ||
|
34
|
34
4XV-2153E-00-00
Emblem, Yamaha
Ur pour dpbmc |
4XV-2153E-00-00 |
— | ||
|
34
|
34
4XV-2153E-20-00
Emblem, Yamaha
Ur pour bwc1,sm1 |
4XV-2153E-20-00 |
— | ||
|
35
|
35
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.24 |
||
|
36
|
36
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.65 |
||
|
37
|
37
5EB-2836M-00-00 Panel, Inner 3 |
5EB-2836M-00-00 |
from US $70.94 |
||
|
38
|
38
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
38
|
38
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.65 |
||
|
39
|
39
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.24 |
||
|
40
|
40
90183-05024-00 Nut, Spring |
90183-05024-00 |
from US $1.50 |
||
| replacement | |||||
|
40
|
40
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.50 |
||
|
41
|
41
5EB-2836A-00-00 Bracket 1 |
5EB-2836A-00-00 |
from US $4.64 |
||
|
42
|
42
5EB-2836E-00-00 Bracket 2 |
5EB-2836E-00-00 |
from US $4.45 |
||
