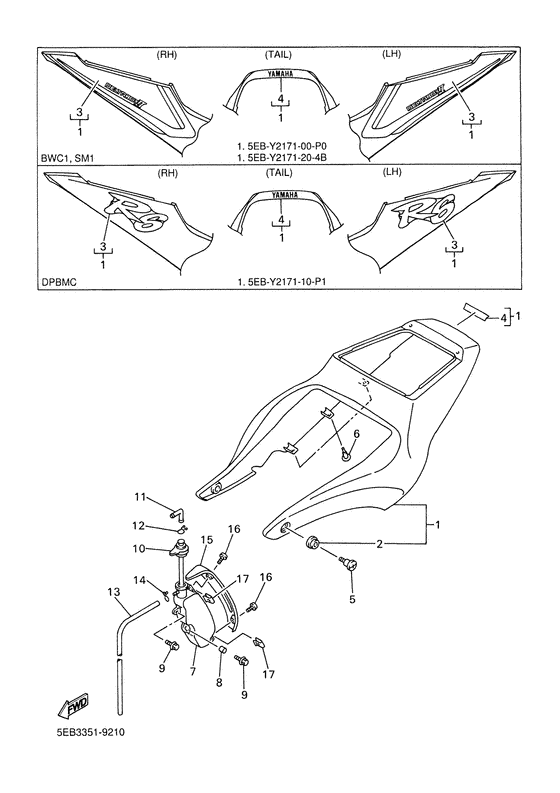

Side cover Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EB4
- Sales region
- Australia (010)
- Базовая модель
- YZF-R6L
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EB-Y2171-00-P0 Cover, Side 1Ur bwc1 |
5EB-Y2171-00-P0 |
US $571.95 |
||
| replacement | |||||
|
01
|
01
5EB-Y2171-81-P2 Cover, Side 1Ur bwc1 |
5EB-Y2171-81-P2 |
US $571.95 |
||
|
01
|
01
5EB-Y2171-10-P1 Cover, Side 1Ur dpbmc |
5EB-Y2171-10-P1 |
US $597.10 |
||
| replacement | |||||
|
01
|
01
5EB-Y2171-91-P1 Cover, Side 1Ur dpbmc |
5EB-Y2171-91-P1 |
US $597.10 |
||
|
02
|
02
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
02
|
02
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.09 |
||
|
03
|
03
5EB-2173L-00-00 Graphic Set 1Ur for bwc1 |
5EB-2173L-00-00 |
US $113.56 |
||
|
03
|
03
5EB-21781-00-00 Emblem 1Ur for dpbmc |
5EB-21781-00-00 |
from US $25.85 |
||
|
04
|
04
992-31000-80-00
Emblem, Yamaha
Ur for dpbmc |
992-31000-80-00 |
— | ||
| replacement | |||||
|
04
|
04
99241-00080-00 Emblem, YamahaUr for dpbmc |
99241-00080-00 |
from US $7.78 |
||
|
04
|
04
992-34000-80-00
Emblem, Yamaha
Ur for bwc1 |
992-34000-80-00 |
— | ||
| replacement | |||||
|
04
|
04
99244-00080-00 Emblem, YamahaUr for bwc1 |
99244-00080-00 |
from US $8.38 |
||
|
05
|
05
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.65 |
||
|
06
|
06
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.80 |
||
|
07
|
07
5EB-21871-00-00 Tank, Recovery |
5EB-21871-00-00 |
from US $44.46 |
||
| replacement | |||||
|
07
|
07
5EB-21871-01-00 Tank, Recovery |
5EB-21871-01-00 |
from US $44.46 |
||
|
08
|
08
90387-066K1-00 Collar |
90387-066K1-00 |
from US $2.24 |
||
| replacements | |||||
|
08
|
08
903-87067-04-00
Collar (796)
|
903-87067-04-00 |
— | ||
|
08
|
08
90387-068G2-00 Collar |
90387-068G2-00 |
US $1.28 |
||
|
09
|
09
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.65 |
||
| replacement | |||||
|
09
|
09
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.05 |
||
|
10
|
10
5EB-21875-00-00 Cap |
5EB-21875-00-00 |
from US $6.91 |
||
|
11
|
11
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $4.80 |
||
|
12
|
12
90467-11019-00 Clip |
90467-11019-00 |
US $1.65 |
||
| replacements | |||||
|
12
|
12
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.65 |
||
|
12
|
12
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.13 |
||
|
13
|
13
90445-08605-00 Hose (L1500) |
90445-08605-00 |
from US $9.57 |
||
| replacement | |||||
|
13
|
13
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $6.18 |
||
|
14
|
14
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.65 |
||
|
15
|
15
5EB-2172W-00-00 Cover |
5EB-2172W-00-00 |
from US $18.94 |
||
|
16
|
16
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.24 |
||
|
17
|
17
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.39 |
||
