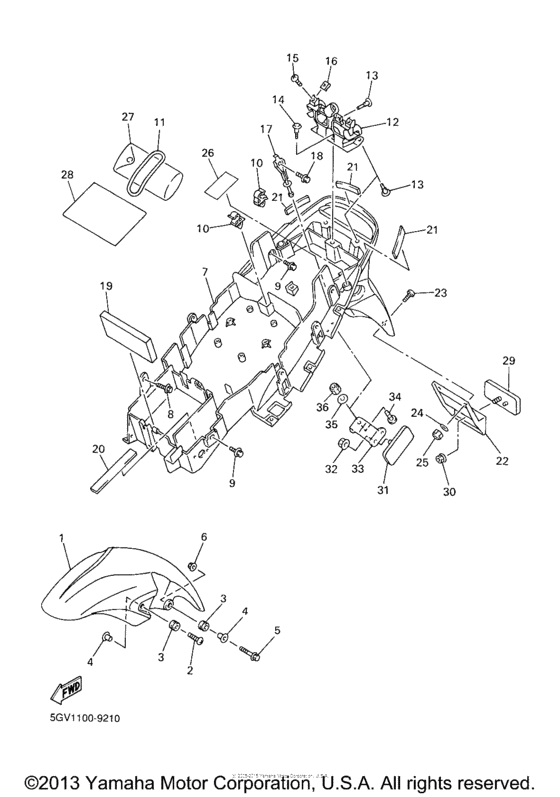

Fender Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Model code
- 5GV5
- Sales region
- United States (California)
- Базовая модель
- YZFR6MC
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-21511-00-P1 Fender, Frontfor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5EB-21511-00-P1 |
from US $135.11 |
||
|
1
|
1
5EB-21511-00-P0 Fender, Frontfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
5EB-21511-00-P0 |
from US $135.11 |
||
|
2
|
2
90154-06061-00 Screw, Binding |
90154-06061-00 |
from US $2.99 |
||
|
3
|
3
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.80 |
||
|
4
|
4
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
4
|
4
90387-06159-00 Collar |
90387-06159-00 |
from US $1.50 |
||
|
5
|
5
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.50 |
||
|
6
|
6
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $0.90 |
||
|
7
|
7
5EB-21611-00-00
Fender, Rear
|
5EB-21611-00-00 |
— | ||
|
8
|
8
90119-06227-00 Bolt, With Washer |
90119-06227-00 |
from US $1.50 |
||
| replacement | |||||
|
8
|
8
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.50 |
||
|
9
|
9
90119-06007-00 Bolt, With Washer |
90119-06007-00 |
from US $1.40 |
||
| replacements | |||||
|
9
|
9
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.05 |
||
|
9
|
9
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.65 |
||
|
10
|
10
90464-07259-00 Clamp |
90464-07259-00 |
from US $1.65 |
||
|
11
|
11
4XV-21376-00-00 Band, Tool |
4XV-21376-00-00 |
from US $4.79 |
||
|
12
|
12
5EB-2117E-00-00
Bracket, Taillight
|
5EB-2117E-00-00 |
— | ||
|
13
|
13
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.80 |
||
|
14
|
14
90338-08220-00 Plug |
90338-08220-00 |
from US $1.13 |
||
|
15
|
15
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.65 |
||
|
16
|
16
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.39 |
||
|
17
|
17
5EB-21654-00-00
Wire
|
5EB-21654-00-00 |
— | ||
|
18
|
18
90105-063A3-00 Bolt, Washer BasedBolt, flange |
90105-063A3-00 |
from US $0.95 |
||
| replacement | |||||
|
18
|
18
90105-06069-00 Bolt, Washer Based |
90105-06069-00 |
from US $1.28 |
||
|
19
|
19
4XV-21639-00-00 Damper 2 |
4XV-21639-00-00 |
US $6.80 |
||
|
20
|
20
1AE-2834E-00-00 Damper 1 |
1AE-2834E-00-00 |
from US $1.06 |
||
|
21
|
21
1LJ-2414J-00-00 Damper, Plate 2 |
1LJ-2414J-00-00 |
from US $0.72 |
||
|
22
|
22
4XV-85132-00-00
Bracket, Reflector 1
|
4XV-85132-00-00 |
— | ||
|
23
|
23
90149-04278-00 Screw |
90149-04278-00 |
from US $1.26 |
||
|
24
|
24
90201-04018-00 Washer (4Fm) |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
24
|
24
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $0.94 |
||
|
25
|
25
95607-04100-00 Nut, U |
95607-04100-00 |
from US $3.59 |
||
| replacement | |||||
|
25
|
25
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $3.24 |
||
|
26
|
26
5EB-2179V-10-00
Plate, Epa 1(Non California)
1NON CALIFORNIA U49 |
5EB-2179V-10-00 |
— | ||
|
26
|
26
5EB-2179R-10-00 Plate, Epa 2(California)2CALIFORNIA CAL |
5EB-2179R-10-00 |
US $11.93 |
||
|
27
|
27
5EB-28100-00-00 Tool Kit |
5EB-28100-00-00 |
US $100.44 |
||
|
28
|
28
5EB-14733-00-00
Mat 1
|
5EB-14733-00-00 |
— | ||
|
29
|
29
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $13.02 |
||
|
30
|
30
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $0.90 |
||
|
31
|
31
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $13.02 |
||
|
32
|
32
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $0.90 |
||
|
33
|
33
4XV-21688-00-00 Bracket, Rear Stay |
4XV-21688-00-00 |
from US $9.40 |
||
|
34
|
34
90149-04278-00 Screw |
90149-04278-00 |
from US $1.26 |
||
|
35
|
35
90201-04018-00 Washer (4Fm) |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
35
|
35
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $0.94 |
||
|
36
|
36
95607-04100-00 Nut, U |
95607-04100-00 |
from US $3.59 |
||
| replacement | |||||
|
36
|
36
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $3.24 |
||
