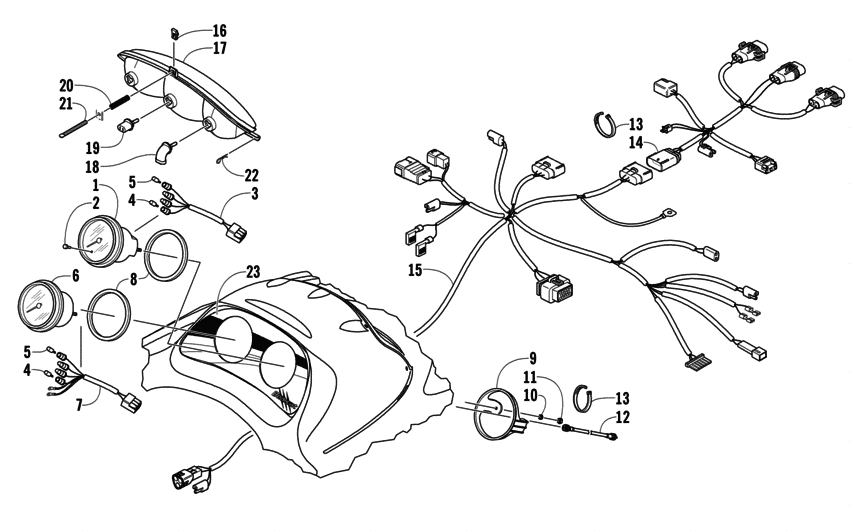

Headlight, Instruments, And Wiring Assemblies Diagram Arctic Cat BEARCAT Bearcat 660 Wide Track
- Model code
- S2006BCFWTOSL
- Engine Capacity
- 658
- Year
- 2006
- Commercial Name
- Bearcat 660 Wide Track
- Sales region
- General
- Colour
- Blue
- Power
- 53 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- Bearcat 660 Wide Track
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
0620-271 Speedometerinc. 2-3, three No. 4, and one No. 5 ; |
0620-271 |
US $208.87 |
||
2
|
2
0620-073 KnobTripmeter |
0620-073 |
US $14.81 |
||
3
|
3
0620-266 HarnessSpeedometer; bulb inc. three No. 4 and one No. 5 ; |
0620-266 |
US $123.46 |
||
4
|
4
0620-149 BulbSpeedometer |
0620-149 |
US $4.29 |
||
5
|
5
0230-020 Bulb |
0230-020 |
US $2.85 |
||
6
|
6
0620-259 Tachometerinc. two No. 4, one No. 5, and 7 ; |
0620-259 |
US $570.79 |
||
7
|
7
0620-262 HarnessTachometer inc. two No. 4 and one No. 5 ; |
0620-262 |
US $123.46 |
||
8
|
8
0620-135 RingRubber cushion |
0620-135 |
US $3.51 |
||
9
|
9
0620-134 BackclampSpeedometer/tachometer |
0620-134 |
US $15.45 |
||
10
|
10
8050-212 Washer |
8050-212 |
US $6.60 |
||
11
|
11
0623-038 Nut w/washer |
0623-038 |
US $2 |
||
12
|
12
0620-269 CableSpeedometer |
0620-269 |
US $60.82 |
||
13
|
13
0123-788 TieCable |
0123-788 |
US $3.20 |
||
14
|
14
1686-210 HarnessHood |
1686-210 |
US $124.67 |
||
15
|
15
1686-249 HarnessMain |
1686-249 |
US $293.77 |
||
16
|
16
0623-757 NutSpeed |
0623-757 |
US $8.70 |
||
17
|
17
0609-250 Lens/reflectorHeadlight |
0609-250 |
US $162.30 |
||
18
|
18
0609-251 BulbHigh beam; headlight |
0609-251 |
US $51.57 |
||
19
|
19
0609-252 BulbLow beam; headlight |
0609-252 |
US $27.39 |
||
20
|
20
0623-466 SpringHeadlight; adjuster |
0623-466 |
US $11.36 |
||
21
|
21
0623-467 ScrewThumb |
0623-467 |
US $14.81 |
||
22
|
22
0623-847 ClipHairpin |
0623-847 |
US $4.20 |
||
23
|
23
6611-543 DecalHood; instrument Included in Hood w/Decals; |
6611-543 |
US $33.36 |
