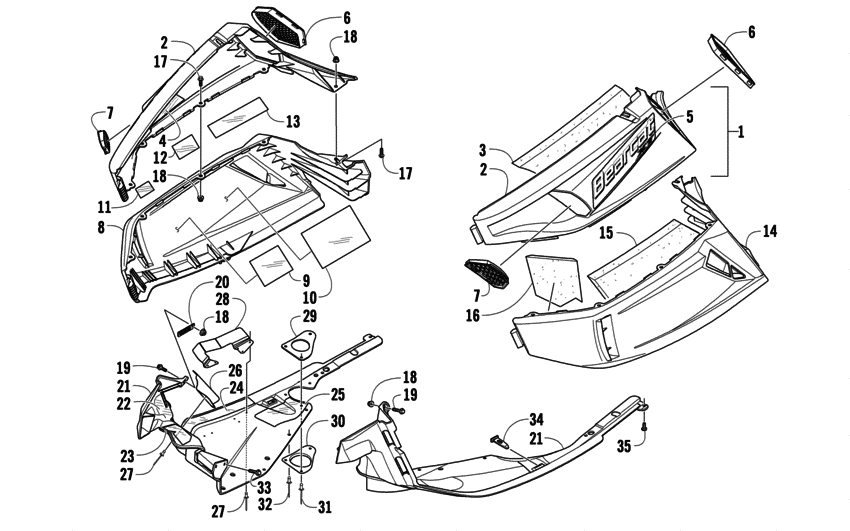

Skid Plate And Side Panel Assembly Diagram Arctic Cat BEARCAT Bearcat Z1 XT
- Model code
- S2010BCNWTUSG
- Engine Capacity
- 1056
- Year
- 2010
- Commercial Name
- Bearcat Z1 XT
- Sales region
- General
- Colour
- Green
- Power
- 123 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- Bearcat Z1 XT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2718-896 PanelUpper - right w/decals; side inc. 2 and 4-5 ; |
2718-896 |
US $247.06 |
||
|
1
|
1
2718-897 PanelUpper - left w/decals; side inc. 2-3 and 5 ; |
2718-897 |
US $247.06 |
||
|
2
|
2
2718-810 PanelUpper - right w/o decals; side inc. 4 ; |
2718-810 |
US $256.04 |
||
|
2
|
2
2718-811 PanelUpper - left w/o decals; side inc. 3 ; |
2718-811 |
US $256.04 |
||
|
3
|
3
0617-563 FoamLeft; upper side panel |
0617-563 |
US $16.16 |
||
|
4
|
4
4606-799 FoilProtective |
4606-799 |
US $2.08 |
||
| replacement | |||||
|
4
|
4
0637-318 FoilProtective |
0637-318 |
US $2.08 |
||
|
5
|
5
8611-774 DecalRight; upper side panel |
8611-774 |
US $90.57 |
||
|
5
|
5
8611-775 DecalLeft; upper side panel |
8611-775 |
US $29.69 |
||
|
6
|
6
4606-650 VentRear - right; upper side panel |
4606-650 |
US $37.93 |
||
|
6
|
6
4606-651 VentRear - left; upper side panel |
4606-651 |
US $46.46 |
||
|
7
|
7
4606-662 VentRight; upper side panel |
4606-662 |
from US $28.04 |
||
|
7
|
7
4606-663
Vent
|
4606-663 |
— | ||
|
8
|
8
2718-930 PanelLower - right w/o decals; side inc. 9-10 ; |
2718-930 |
US $284.91 |
||
|
9
|
9
6606-212 FoilProtective |
6606-212 |
US $2.69 |
||
|
10
|
10
6606-214 FoilProtective |
6606-214 |
US $5 |
||
|
11
|
11
6606-219 FoilProtective |
6606-219 |
US $4.04 |
||
|
12
|
12
6606-218 FoilProtective |
6606-218 |
US $3.06 |
||
|
13
|
13
6606-220 FoilProtective |
6606-220 |
US $5.64 |
||
|
14
|
14
2718-349 PanelLower - left; side inc. 15-16 ; |
2718-349 |
US $270.03 |
||
|
15
|
15
0617-567 FoamRear - left; lower side panel |
0617-567 |
US $90.57 |
||
|
16
|
16
0617-566 FoamFront - left; lower side panel |
0617-566 |
US $16.16 |
||
|
17
|
17
8408-620 ScrewCap |
8408-620 |
US $4.84 |
||
| replacement | |||||
|
17
|
17
8476-620 ScrewCap |
8476-620 |
US $1.80 |
||
|
18
|
18
8427-602 Nut |
8427-602 |
US $0.32 |
||
|
19
|
19
8408-635 ScrewMachine |
8408-635 |
US $2.85 |
||
|
20
|
20
3002-964 ClampWire |
3002-964 |
US $11.04 |
||
| replacement | |||||
|
20
|
20
1623-984 Clamp,wire - 76.14mm lg w/6.25 hole |
1623-984 |
US $11.04 |
||
|
21
|
21
4706-772 PlateRight; skid |
4706-772 |
US $53.79 |
||
|
21
|
21
4706-073 PlateLeft; skid |
4706-073 |
US $48.63 |
||
|
22
|
22
4606-982 FoilRight; skid plate hinge |
4606-982 |
US $14.81 |
||
|
23
|
23
4606-796 FoilProtective |
4606-796 |
US $1.62 |
||
|
24
|
24
4606-798 FoilProtective |
4606-798 |
US $2.42 |
||
|
25
|
25
4606-797 FoilProtective |
4606-797 |
US $4.17 |
||
|
26
|
26
6606-226 ShieldHeat |
6606-226 |
US $11.94 |
||
|
27
|
27
8061-506 Rivet |
8061-506 |
US $8.40 |
||
|
28
|
28
6606-227 ShieldHeat |
6606-227 |
US $25.63 |
||
|
29
|
29
2612-469 SealOutlet; exhaust |
2612-469 |
US $14.81 |
||
|
30
|
30
1712-594 ShieldExhaust outlet; heat |
1712-594 |
US $29.69 |
||
|
31
|
31
0623-778 Rivet |
0623-778 |
US $0.98 |
||
|
32
|
32
8061-708 Rivet |
8061-708 |
US $10.70 |
||
|
33
|
33
0623-966 ScrewSelf-tapping |
0623-966 |
US $0.98 |
||
|
34
|
34
4606-926 StrapHold-down |
4606-926 |
US $6.62 |
||
|
35
|
35
0423-538 ScrewSelf-tapping |
0423-538 |
US $5.70 |
||
