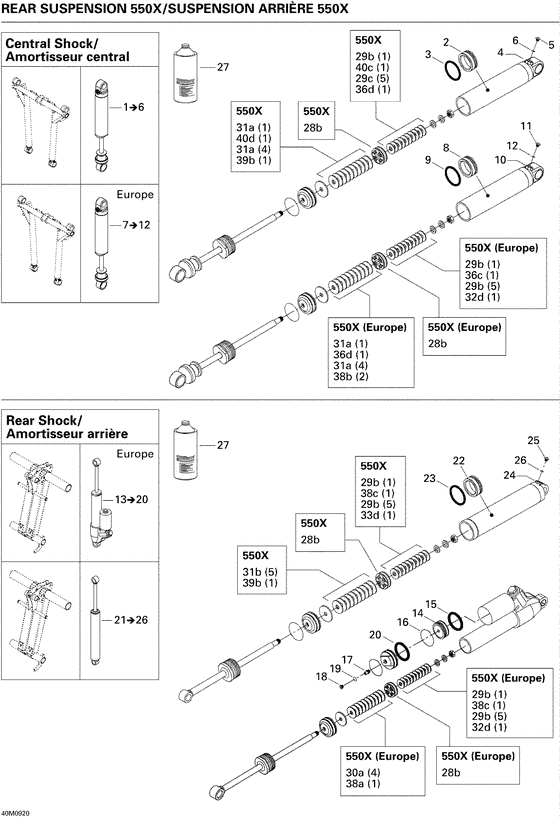

08- take apart shock, rear Diagram Bombardier MX Z
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503190992
Amort. central *shock-center
|
503190992 |
— | ||
|
2
|
2
505070401 Rondelle *washer |
505070401 |
US $38.90 |
||
|
3
|
3
415070100 Ressort peint *spring-paint |
415070100 |
US $61.15 |
||
|
4
|
4
503191126
Protecteur *protector
|
503191126 |
— | ||
| replacement | |||||
|
4
|
4
503193663 PROTECTOR |
503193663 |
US $30.57 |
||
|
5
|
5
503187500 Guide ressort *guide-spring |
503187500 |
US $9.57 |
||
|
6
|
6
706200881 Butee ressort *spring stopper |
706200881 |
from US $12.67 |
||
|
7
|
7
503189117 Coussinet ureth*cushion-ureth. |
503189117 |
US $7.33 |
||
|
8
|
8
503189282 Douille *bushing |
503189282 |
US $4.03 |
||
|
9
|
9
503189271 Coussinet ureth*cushion-ureth. |
503189271 |
US $13.24 |
||
|
26
|
26
503190991 Amort. arr. *shock-rear |
503190991 |
US $110.13 |
||
|
28a
|
28a
414888304
Piston (c36)
|
414888304 |
— | ||
|
28c
|
28c
414888305
Piston comp. *piston-comp.
|
414888305 |
— | ||
|
28e
|
28e
414888306
Piston (2 x 0.3-4) (c36)
|
414888306 |
— | ||
|
28g
|
28g
414888307
Piston (2 x 0.3-6) (c36)
|
414888307 |
— | ||
|
29c
|
29c
414888319
Lame soupape *leaf-valve
|
414888319 |
— | ||
|
29a
|
29a
415039100
Lame soupape *leaf-valve
|
415039100 |
— | ||
|
29b
|
29b
414888318
Lame soupape *leaf-valve
|
414888318 |
— | ||
|
30b
|
30b
414888320
New Genuine Part
|
414888320 |
— | ||
|
30c
|
30c
414888321 New Genuine Part |
414888321 |
US $1.96 |
||
|
31a
|
31a
415039000
Lame soupape *leaf-valve
|
415039000 |
— | ||
|
31b
|
31b
414888322
New Genuine Part
|
414888322 |
— | ||
|
31c
|
31c
414888323
Lame soupape *leaf-valve
|
414888323 |
— | ||
|
33b
|
33b
414888324 Lame soupape *leaf-valve |
414888324 |
US $1.96 |
||
|
33c
|
33c
414888325
New Genuine Part
|
414888325 |
— | ||
|
34d
|
34d
414888340
New Genuine Part
|
414888340 |
— | ||
|
35b
|
35b
414888326
Lame soupape *leaf-valve
|
414888326 |
— | ||
|
35c
|
35c
414888327
Lame soupape *leaf-valve
|
414888327 |
— | ||
|
35d
|
35d
414888328
New Genuine Part
|
414888328 |
— | ||
|
37b
|
37b
414888329 Lame soupape *leaf-valve |
414888329 |
US $5.83 |
||
|
37c
|
37c
414888330
Lame soupape *leaf-valve
|
414888330 |
— | ||
|
39a
|
39a
414888331
Lame soupape *leaf-valve
|
414888331 |
— | ||
|
39b
|
39b
414888332
New Genuine Part
|
414888332 |
— | ||
|
39c
|
39c
414888333 New Genuine Part |
414888333 |
US $1.96 |
||
|
39d
|
39d
415038900
Lame soupape *leaf-valve
|
415038900 |
— | ||
|
40a
|
40a
414888334
New Genuine Part
|
414888334 |
— | ||
|
40b
|
40b
414888335
Lame soupape *leaf-valve
|
414888335 |
— | ||
|
40c
|
40c
414888336
New Genuine Part
|
414888336 |
— | ||
|
40d
|
40d
414888337
Lame soupape *leaf-valve
|
414888337 |
— | ||
|
43a
|
43a
503189538
Lame soupape *leaf-valve 12xt0.254
|
503189538 |
— | ||
|
43b
|
43b
414888338
Lame soupape *leaf-valve
|
414888338 |
— | ||
|
43c
|
43c
414888339
New Genuine Part
|
414888339 |
— | ||
|
43d
|
43d
415038800
Lame soupape *leaf-valve
|
415038800 |
— | ||
