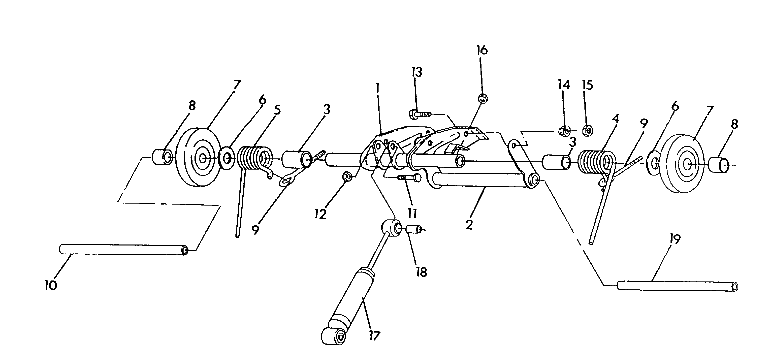

Rear torque arm (Lite GT; Indy) Diagram Polaris FIN Lite GT
- Model code
- F923133
- Year
- 1992
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1540712-067
Arm,r,torque,blk,
|
1540712-067 |
— | ||
|
2
|
2
1540562-067 Arm, pivot |
1540562-067 |
US $45.69 |
||
|
3
|
3
5521089
Tube-spring
|
5521089 |
— | ||
|
4
|
4
7041119
Spring lh
|
7041119 |
— | ||
| replacement | |||||
|
4
|
4
7041119-067
Spring,lh,blk,
|
7041119-067 |
— | ||
|
5
|
5
7041120
Spring rh
|
7041120 |
— | ||
| replacement | |||||
|
5
|
5
7041120-067
Spring,rh,blk,
|
7041120-067 |
— | ||
|
6
|
6
7555726 Washer10; |
7555726 |
US $6.56 |
||
|
7
|
7
1543017 Wheel-track carrier |
1543017 |
US $39.60 |
||
|
8
|
8
5332730 Spacer-carr,wheel |
5332730 |
US $11.01 |
||
|
9
|
9
7080221 Bolt-eye, spring adj,10; |
7080221 |
US $8.66 |
||
|
10
|
10
5020611
Shaft
|
5020611 |
— | ||
| replacement | |||||
|
10
|
10
5131996 Shaft,mtg,rear |
5131996 |
US $54.18 |
||
|
11
|
11
7512306
Screw
10; |
7512306 |
— | ||
|
12
|
12
7542302 Nut lock10; |
7542302 |
US $3.26 |
||
|
13
|
13
7515317 Bolt10; |
7515317 |
US $3.26 |
||
|
14
|
14
7542326 Nut, shoulder10; |
7542326 |
US $16.24 |
||
|
16
|
16
7542402 Nut,flexloc10; |
7542402 |
US $5.22 |
||
|
17
|
17
7041154
Shock
|
7041154 |
— | ||
| replacement | |||||
|
17
|
17
7041737
Shock,rear track
|
7041737 |
— | ||
|
18
|
18
5332631 Spacer |
5332631 |
US $9.19 |
||
|
19
|
19
5020392
Shaft-pivot arm
|
5020392 |
— | ||
| replacement | |||||
|
19
|
19
5020723 Shaft,pivot arm |
5020723 |
US $17.73 |
||
