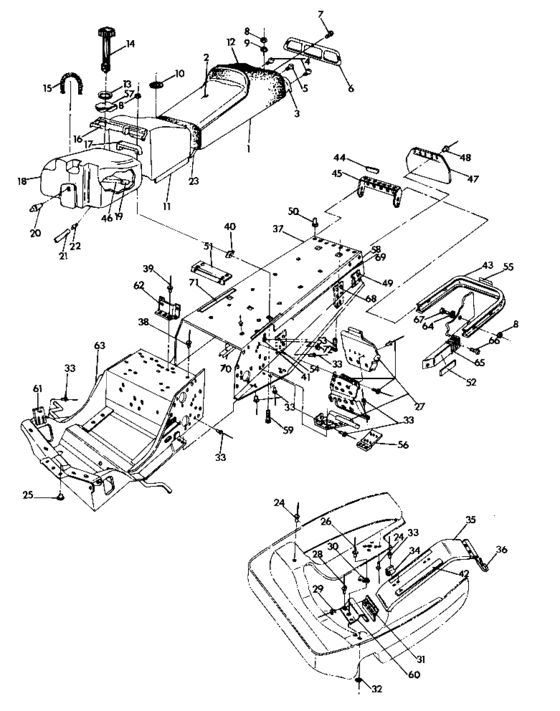

Chassis & seat (400 XC) Diagram Polaris XC 400
- Model code
- 0911759
- Year
- 1991
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2681329
Cushion,seat,`88
650;Incl. 2-7, 12, 23; |
2681329 |
— | ||
|
2
|
2
2681330
Cover,seat
|
2681330 |
— | ||
| replacement | |||||
|
2
|
2
2200738
New Genuine Part
|
2200738 |
— | ||
|
3
|
3
5430425
Housing,taillight
|
5430425 |
— | ||
|
4
|
4
4030015 Bulb taillight/tach/speedo (10)10; |
4030015 |
US $46.40 |
||
|
5
|
5
4030019
Bulb, brakelight
|
4030019 |
— | ||
|
6
|
6
5430423
Lens,taillight ***
|
5430423 |
— | ||
|
7
|
7
7511840 Screw(10)10; |
7511840 |
US $0.79 |
||
|
8
|
8
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
9
|
9
7558221 Washer(10)10; |
7558221 |
US $0.79 |
||
|
10
|
10
5430575
Grommet-gas tank
|
5430575 |
— | ||
|
11
|
11
2681427
Cover,tank
400/650; |
2681427 |
— | ||
| replacement | |||||
|
11
|
11
2200738
New Genuine Part
400/650; |
2200738 |
— | ||
|
12
|
12
2681290
Buckle&strap
|
2681290 |
— | ||
|
13
|
13
5810142
Gasket-gas cap
|
5810142 |
— | ||
| replacement | |||||
|
13
|
13
5810513 Gasket, gas cap |
5810513 |
US $11.03 |
||
|
14
|
14
2511149
Gauge,gas
|
2511149 |
— | ||
| replacement | |||||
|
14
|
14
2511246 Cap,gas,w/gauge |
2511246 |
US $43.72 |
||
|
15
|
15
7042020 Spring,tank,(10)10; |
7042020 |
US $11.25 |
||
|
16
|
16
5221722
Strap,gas tank
|
5221722 |
— | ||
| replacement | |||||
|
16
|
16
5222330-067
Strap,gastank,blk,
|
5222330-067 |
— | ||
|
17
|
17
5420126
Cushion,tank h,d,
|
5420126 |
— | ||
|
18
|
18
2511150
Tank,gas
|
2511150 |
— | ||
|
19
|
19
7052037
Fuelpickup,w/strainer
|
7052037 |
— | ||
|
20
|
20
7052023 Fitting - outlet(10)10; |
7052023 |
US $16.24 |
||
|
21
|
21
2200190
Kit-tank vent
|
2200190 |
— | ||
|
22
|
22
5430669
Vent fitting,tank
|
5430669 |
— | ||
| replacement | |||||
|
22
|
22
5430579 Vent-tank |
5430579 |
US $46.90 |
||
|
23
|
23
2460226
Harness-taillight
|
2460226 |
— | ||
| replacement | |||||
|
23
|
23
2460399 Harness, taillight |
2460399 |
US $33.50 |
||
|
24
|
24
7621457 Rivet(50)50; |
7621457 |
US $1.89 |
||
|
25
|
25
7080398 Plug, hole10; |
7080398 |
US $2.66 |
||
|
26
|
26
7621402 Rivet,pop(50)50; |
7621402 |
US $1.49 |
||
|
27
|
27
2200254
Footrest asm,rh
|
2200254 |
— | ||
|
27
|
27
2200250
Footrest asm,lh
|
2200250 |
— | ||
|
28
|
28
7621452 Rivet(50)50; |
7621452 |
US $1.89 |
||
|
29
|
29
7621330 Rivet, pop(50)50; |
7621330 |
US $0.79 |
||
|
30
|
30
4020035
Clip, wiring,
10; |
4020035 |
— | ||
| replacement | |||||
|
30
|
30
7080665
Clip,wiring
10; |
7080665 |
— | ||
|
31
|
31
5210728
Hinge
|
5210728 |
— | ||
|
32
|
32
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
33
|
33
7621620
Rivet
|
7621620 |
— | ||
| replacement | |||||
|
33
|
33
7621429 Rivet(50) |
7621429 |
US $1.89 |
||
|
34
|
34
5220817
Clip, belt
|
5220817 |
— | ||
| replacement | |||||
|
34
|
34
5222769 Clip,belt retainer |
5222769 |
US $7.68 |
||
|
35
|
35
5230118
Guard,clutch
|
5230118 |
— | ||
| replacement | |||||
|
35
|
35
5240965
Guard, clutch
|
5240965 |
— | ||
|
36
|
36
7080216
Pin, retaining
10; |
7080216 |
— | ||
|
37
|
37
1011808
Tunnel,
LIQ.PLAIN; |
1011808 |
— | ||
|
38
|
38
7661620
Rivet
MONOBOLT; |
7661620 |
— | ||
| replacement | |||||
|
38
|
38
7661637 Rivet,interlock,z(50) *MONOBOLT; |
7661637 |
US $0.79 |
||
|
40
|
40
7670021 Nut, speed10; |
7670021 |
US $2.45 |
||
|
41
|
41
7080227 Snap-male10; |
7080227 |
US $3.26 |
||
|
42
|
42
7072871
Decal,eng/clutch
No Longer Available; |
7072871 |
— | ||
|
43
|
43
5224334
Bumper, rear
|
5224334 |
— | ||
| replacement | |||||
|
43
|
43
5224334-067
Bumper,rear,blk,
|
5224334-067 |
— | ||
|
44
|
44
7072872
Decal, track
No Longer Available; |
7072872 |
— | ||
|
45
|
45
5220478
Panel,tunnel,back
|
5220478 |
— | ||
| replacement | |||||
|
45
|
45
5220478-067
Panel,tunnel-back
|
5220478-067 |
— | ||
|
46
|
46
8450003
Line, fuel
Cannot Purchase as Assembly; FT.; |
8450003 |
— | ||
|
47
|
47
5410577
Flap,snow
RED&BLACK; |
5410577 |
— | ||
| replacement | |||||
|
47
|
47
5410394-1117
Flap-snow,molded,red/blk
RED&BLACK; |
5410394-1117 |
— | ||
|
48
|
48
7621418 Rivet,pop(50)*50; |
7621418 |
US $1.89 |
||
|
49
|
49
5222061
Wearplate,tunnel
|
5222061 |
— | ||
|
50
|
50
7661812
Rivet,semi-tube,(50) *
50; |
7661812 |
— | ||
|
51
|
51
5220973
Brkt, tool box
|
5220973 |
— | ||
|
52
|
52
2670070 Reflector red |
2670070 |
US $12.22 |
||
|
53
|
53
7512103 Bolt10; |
7512103 |
US $2.28 |
||
|
54
|
54
5220542
Brkt
|
5220542 |
— | ||
| replacement | |||||
|
54
|
54
5220542-067
Brkt,fr.susp,blk.
|
5220542-067 |
— | ||
|
55
|
55
7072582
Decal,36``,r.bump
No Longer Available; |
7072582 |
— | ||
|
56
|
56
5220634
Plate,tunnel,lh
|
5220634 |
— | ||
|
56
|
56
5220635
Plate,tunnel,rh
|
5220635 |
— | ||
|
57
|
57
5810201
Foam, filler
|
5810201 |
— | ||
|
58
|
58
7072078
Decaltunnel
No Longer Available; 47.5``; |
7072078 |
— | ||
|
59
|
59
7512193 Bolt,carriage10; |
7512193 |
US $5.25 |
||
|
60
|
60
5220406
Bracket, hinge
|
5220406 |
— | ||
| replacement | |||||
|
60
|
60
5241437
Bracket,hinge
|
5241437 |
— | ||
|
61
|
61
1011831
Support,muffler
|
1011831 |
— | ||
| replacement | |||||
|
61
|
61
5242798-067 Support,muffler,frt |
5242798-067 |
US $21.49 |
||
|
62
|
62
1011733
Brkt,gastank,weld.
|
1011733 |
— | ||
| replacement | |||||
|
62
|
62
1011733-067
Brkt,gastank,weld,
|
1011733-067 |
— | ||
|
63
|
63
1011743
Bulkhead
500; |
1011743 |
— | ||
| replacement | |||||
|
63
|
63
1011743-067
Bulkhead,,blk.
500; |
1011743-067 |
— | ||
|
64
|
64
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
65
|
65
5430930
Cap, bumper
|
5430930 |
— | ||
| replacement | |||||
|
65
|
65
5430930-070 Cap, bumper, blk, |
5430930-070 |
US $13.20 |
||
|
66
|
66
7511863 Screw10; |
7511863 |
US $2.45 |
||
|
67
|
67
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
68
|
68
1011749
Pad,lh,r.susp.mtg.
|
1011749 |
— | ||
| replacement | |||||
|
68
|
68
1011749-067
Brkt,lh.r.susp,blk.
|
1011749-067 |
— | ||
|
68
|
68
1011750
Pad,rh,r.susp.mtg.
|
1011750 |
— | ||
| replacement | |||||
|
68
|
68
1011750-067
Brkt,rh.r.susp,blk.
|
1011750-067 |
— | ||
|
69
|
69
7072965
Decal,rh,tunnel
No Longer Available; 91-400; |
7072965 |
— | ||
|
69
|
69
7072964
Decal,lh,tunnel
No Longer Available; 91-400; |
7072964 |
— | ||
|
70
|
70
5510130 Strip-wear |
5510130 |
US $32.52 |
||
|
71
|
71
5810063 Pad-gas tank |
5810063 |
US $6.11 |
||
