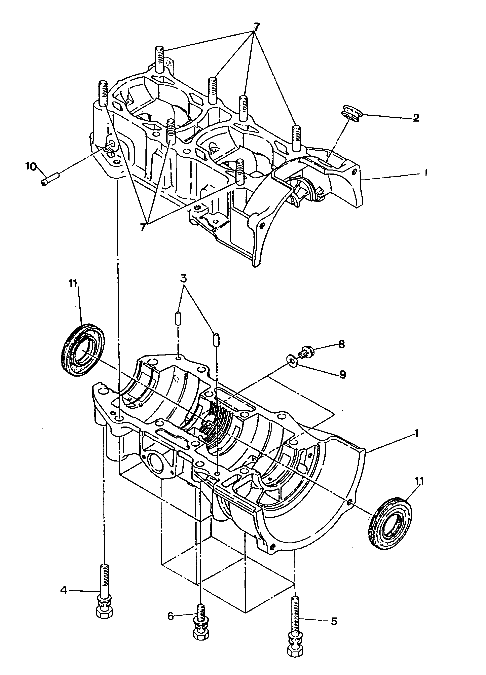

Crankcase assembly (400 XC) Diagram Polaris XC 400
- Model code
- 0911759
- Year
- 1991
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083793
Crankcase asm.
Incl. 3-7; |
3083793 |
— | ||
| replacement | |||||
|
1
|
1
3084609 CrankcaseIncl. 3-7; |
3084609 |
US $945.39 |
||
|
2
|
2
3082862
Grommet
|
3082862 |
— | ||
| replacement | |||||
|
2
|
2
3082875 Grommet |
3082875 |
US $7.18 |
||
|
3
|
3
3083054
Pin,dowel
10; |
3083054 |
— | ||
| replacement | |||||
|
3
|
3
3086838 Pin,dowel10; |
3086838 |
US $4.73 |
||
|
4
|
4
3084220 Bolt&washer asm, |
3084220 |
US $7.68 |
||
|
5
|
5
3080739 Asm,, bolt and washer |
3080739 |
US $5.22 |
||
|
6
|
6
3083078 Asm,,bolt and washer |
3083078 |
US $3.26 |
||
|
7
|
7
3080745
Stud
|
3080745 |
— | ||
| replacement | |||||
|
7
|
7
3084119 Stud |
3084119 |
US $7.68 |
||
|
8
|
8
3083568
Bolt, flange
10; |
3083568 |
— | ||
| replacement | |||||
|
8
|
8
3087035
Bolt, flange
10; |
3087035 |
— | ||
|
9
|
9
3082758
Gasket, alum
10; |
3082758 |
— | ||
| replacement | |||||
|
9
|
9
7555998 Washer,flat(10) *10; |
7555998 |
US $0.79 |
||
|
10
|
10
3083567
Pipe, pulse
PULSE; |
3083567 |
— | ||
| replacement | |||||
|
10
|
10
3083798 Pipe, pulsePULSE; |
3083798 |
US $7.09 |
||
|
11
|
11
3082709
Oil seal
|
3082709 |
— | ||
| replacement | |||||
|
11
|
11
3083045 Seal, oil(10) |
3083045 |
US $42.11 |
||
