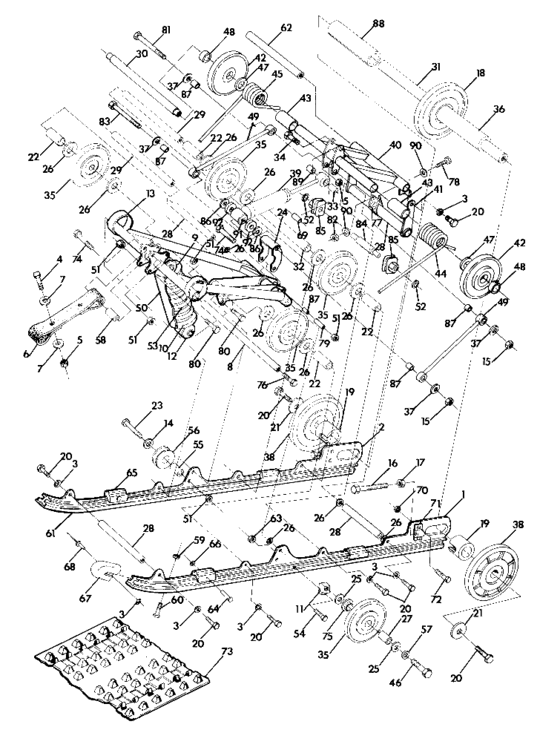

Suspension (400 XC) Diagram Polaris XC 400
- Model code
- 0911759
- Year
- 1991
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1540553
Rail asm, lh,silver
Incl. 64-66, 70-72; |
1540553 |
— | ||
|
2
|
2
1540554
Rail asm,rh, silver
Incl. 64-66, 70-72; |
1540554 |
— | ||
|
3
|
3
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
4
|
4
7515307 Bolt10; |
7515307 |
US $3.26 |
||
|
5
|
5
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
6
|
6
5410397
Strap, limiter
|
5410397 |
— | ||
|
7
|
7
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
8
|
8
5010149 Shaft,mounting |
5010149 |
US $42.35 |
||
|
9
|
9
5220225 Retainer-top |
5220225 |
US $10.83 |
||
|
10
|
10
5210953 Spring retainer10; |
5210953 |
US $4.73 |
||
|
11
|
11
5130570 Bracket,bogie wheel |
5130570 |
US $43.68 |
||
|
12
|
12
7041254
Shock,gas,middle
|
7041254 |
— | ||
|
13
|
13
1540689
Arm,front torque
|
1540689 |
— | ||
| replacement | |||||
|
13
|
13
1540689-067
Arm,front torque
|
1540689-067 |
— | ||
|
14
|
14
7555743 Washer10; |
7555743 |
US $1.89 |
||
|
15
|
15
7542402 Nut,flexloc10; |
7542402 |
US $5.22 |
||
|
16
|
16
7515455 Bolt, adjuster(10)10; |
7515455 |
US $15.75 |
||
|
17
|
17
7542440 Nut10; |
7542440 |
US $1.89 |
||
|
18
|
18
1594021
Wheel, idler
|
1594021 |
— | ||
| replacement | |||||
|
18
|
18
1594079-070 Wheel asm,blk, |
1594079-070 |
US $39.60 |
||
|
19
|
19
5332641
Spacer-idler-outer
|
5332641 |
— | ||
|
20
|
20
7515458
Bolt
10; |
7515458 |
— | ||
| replacements | |||||
|
20
|
20
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
20
|
20
7512492-SWED
New Genuine Part
10; |
7512492-SWED |
— | ||
|
21
|
21
7555732 Washer flat10; |
7555732 |
US $3.75 |
||
|
22
|
22
5332784
Spacer, outer
|
5332784 |
— | ||
|
23
|
23
7515433 Screw(10) |
7515433 |
US $26.30 |
||
| replacement | |||||
|
23
|
23
7517583 Scr-3/8-24x2 hx/cp gr5-y-sp |
7517583 |
US $3.57 |
||
|
24
|
24
1540664
Arm, shock pivot
|
1540664 |
— | ||
| replacement | |||||
|
24
|
24
1540664-067
Arm, shock pivot
|
1540664-067 |
— | ||
|
25
|
25
7555804 Washer10; |
7555804 |
US $3.26 |
||
|
26
|
26
7556301 Bushing(10)10; |
7556301 |
US $2.77 |
||
|
27
|
27
5332786 Spacer |
5332786 |
US $8.17 |
||
|
28
|
28
5020392
Shaft-pivot arm
|
5020392 |
— | ||
| replacement | |||||
|
28
|
28
5020723 Shaft,pivot arm |
5020723 |
US $17.73 |
||
|
29
|
29
5020415
Shaft-pivot arm
|
5020415 |
— | ||
| replacement | |||||
|
29
|
29
5020724 Shaft,pivot arm |
5020724 |
US $19.18 |
||
|
30
|
30
5020570
Shaft, mtg, rear
|
5020570 |
— | ||
|
31
|
31
5020395
Shaft,rear idler
|
5020395 |
— | ||
| replacement | |||||
|
31
|
31
5020722
Shaft,idler
|
5020722 |
— | ||
|
32
|
32
5332783
Tube, suspension
|
5332783 |
— | ||
|
33
|
33
5333030
Bushing,r,shock
|
5333030 |
— | ||
|
34
|
34
7515329
Bolt
No Longer Available; |
7515329 |
— | ||
|
35
|
35
1543018 Wheel, idler |
1543018 |
US $54.76 |
||
|
36
|
36
5010169
Spacer inner idler
|
5010169 |
— | ||
|
37
|
37
7555720
Washer
10; |
7555720 |
— | ||
| replacement | |||||
|
37
|
37
7555806 Washer,flat(10)10; |
7555806 |
US $3.94 |
||
|
38
|
38
1594039
Wheel,idler,outer,red
|
1594039 |
— | ||
|
39
|
39
7041256
Shock,gas,rear
No Longer Available; |
7041256 |
— | ||
|
40
|
40
1540678
Arm,rear torque
|
1540678 |
— | ||
| replacement | |||||
|
40
|
40
1540678-067
Arm,rear torque
|
1540678-067 |
— | ||
|
41
|
41
1540677
Arm, rear pivot
|
1540677 |
— | ||
| replacement | |||||
|
41
|
41
1540677-067
Arm, rear pivot
|
1540677-067 |
— | ||
|
42
|
42
1543022 Wheel,carrier,asm |
1543022 |
US $45.92 |
||
|
43
|
43
5521234
Tube, spring
|
5521234 |
— | ||
|
44
|
44
7041248
Spring,lh r.susp.
|
7041248 |
— | ||
| replacement | |||||
|
44
|
44
7041248-067
Spring,lh,r.susp,blk. opt.
|
7041248-067 |
— | ||
|
45
|
45
7041249
Spring,rh r.susp.
|
7041249 |
— | ||
| replacement | |||||
|
45
|
45
7041249-067
Spring,rh,r,susp,blk,
|
7041249-067 |
— | ||
|
46
|
46
7512659 Bolt10; |
7512659 |
US $7.68 |
||
|
47
|
47
7571605 Washer-wave10; |
7571605 |
US $5.22 |
||
|
48
|
48
7512257 Screw-socketset10; |
7512257 |
US $2.45 |
||
|
48
|
48
5010155
Collar-brg, lock
|
5010155 |
— | ||
|
49
|
49
1540662
Rod, suspension
|
1540662 |
— | ||
| replacement | |||||
|
49
|
49
1540662-067
Rod, suspension
|
1540662-067 |
— | ||
|
50
|
50
5430671 Shield-spring |
5430671 |
US $18.32 |
||
|
51
|
51
7542439 Nut,nylok(10)10; |
7542439 |
US $3.94 |
||
|
52
|
52
7080394 Clip,push on(10)10; |
7080394 |
US $0.79 |
||
|
53
|
53
7041253
Desc not_available
|
7041253 |
— | ||
|
54
|
54
7512404 Bolt10; |
7512404 |
US $3.26 |
||
|
55
|
55
5332787
Spacer
|
5332787 |
— | ||
|
56
|
56
5430540
Roller-spring*
|
5430540 |
— | ||
|
57
|
57
7553201 Washer,split lock10; |
7553201 |
US $2.45 |
||
|
58
|
58
5010212
Bushing,suspension
|
5010212 |
— | ||
|
59
|
59
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
60
|
60
7512227
Screw
10; |
7512227 |
— | ||
|
61
|
61
5521104
Slide,red,
HIFAX; |
5521104 |
— | ||
| replacement | |||||
|
61
|
61
5521321
New Genuine Part
HIFAX; |
5521321 |
— | ||
|
62
|
62
5020395
Shaft,rear idler
|
5020395 |
— | ||
| replacement | |||||
|
62
|
62
5020722
Shaft,idler
|
5020722 |
— | ||
|
63
|
63
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
64
|
64
7661609
Rivet,(50)
50; |
7661609 |
— | ||
|
65
|
65
5410315
Bumper-suspension
|
5410315 |
— | ||
| replacement | |||||
|
65
|
65
5810554 Bumper, rail |
5810554 |
US $6.11 |
||
|
66
|
66
7670009 Palnut(10)10; |
7670009 |
US $0.79 |
||
|
67
|
67
5430627 Cover-rail tip |
5430627 |
US $30.54 |
||
|
68
|
68
7621435 Rivet(50)50; |
7621435 |
US $0.79 |
||
|
69
|
69
5333026 Spacer,r,pivot arm |
5333026 |
US $3.75 |
||
|
71
|
71
5130530 Block-idler bolt adj, |
5130530 |
US $24.43 |
||
|
72
|
72
7621501 Rivet(50)50; |
7621501 |
US $3.75 |
||
|
73
|
73
5410616
Track
400XC; |
5410616 |
— | ||
|
74
|
74
7515438 Bolt10; |
7515438 |
US $3.94 |
||
|
75
|
75
5430789
Insert-wheel
|
5430789 |
— | ||
| replacement | |||||
|
75
|
75
5431531 Insert, wheel,(10) |
5431531 |
US $7.09 |
||
|
76
|
76
7515415 Screw(10)10; |
7515415 |
US $1.49 |
||
|
77
|
77
5410587
Strap, limiter
|
5410587 |
— | ||
|
78
|
78
7512247 Bolt(10) *10; |
7512247 |
US $0.79 |
||
|
79
|
79
5333028 Spacer |
5333028 |
US $1.98 |
||
|
81
|
81
7515459 Screw10; |
7515459 |
US $4.43 |
||
|
82
|
82
7542103 Nut,flexloc10; |
7542103 |
US $9.19 |
||
|
83
|
83
7515496 Bolt10; |
7515496 |
US $8.66 |
||
|
84
|
84
5130762
Rod
|
5130762 |
— | ||
|
85
|
85
5431168 Roller, spring adj, |
5431168 |
from US $9.15 |
||
|
86
|
86
5211224 Spacer, r,shock10; |
5211224 |
US $2.77 |
||
|
87
|
87
5020561 Bushing,pivot tube |
5020561 |
US $1.98 |
||
|
89
|
89
5430537 Bushing* |
5430537 |
US $5.90 |
||
|
90
|
90
7558221 Washer(10)10; |
7558221 |
US $0.79 |
||
|
91
|
91
5222616
Bushing
|
5222616 |
— | ||
|
92
|
92
5222109
Clip,metal,
YOKOHAMA;10; |
5222109 |
— | ||
|
92
|
92
5410617
Bushing
|
5410617 |
— | ||
