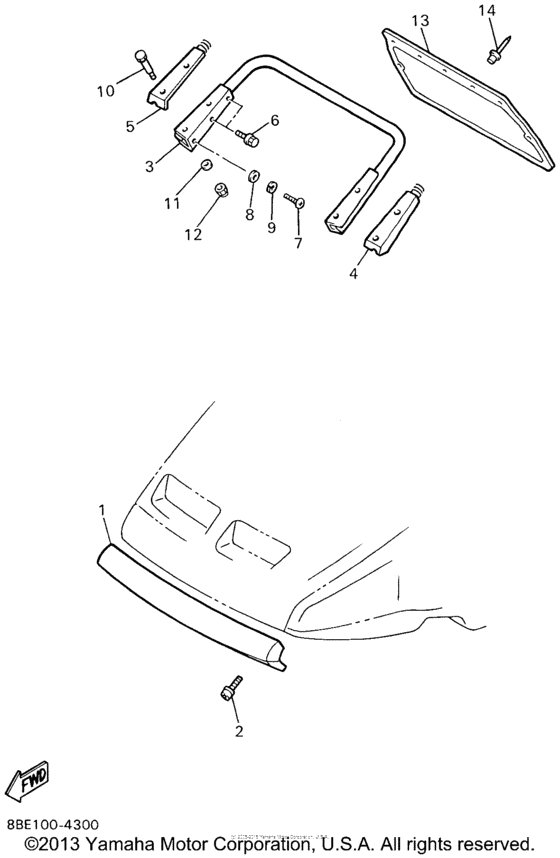

Bumper Diagram Yamaha CS340 Ovation
- Model code
- CS340
- Engine Capacity
- 337
- Year
- 2000
- Sales region
- USA
- Model
- Ovation
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88E-77511-00-00
Bumper, Front 1
|
88E-77511-00-00 |
— | ||
|
2
|
2
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
2
|
2
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.80 |
||
|
2
|
2
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
3
|
3
85L-77541-00-00
Bumper, Rear 1
|
85L-77541-00-00 |
— | ||
|
4
|
4
8W6-77542-00-00
Bumper, Rear 2
|
8W6-77542-00-00 |
— | ||
|
5
|
5
8W6-77543-00-00 Bumper, Rear 3 |
8W6-77543-00-00 |
from US $20.71 |
||
|
6
|
6
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $0.90 |
||
| replacement | |||||
|
6
|
6
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $0.90 |
||
|
7
|
7
98907-08020-00 Screw, Bind |
98907-08020-00 |
from US $2.69 |
||
|
8
|
8
92907-08200-00 Washer |
92907-08200-00 |
from US $1.50 |
||
|
9
|
9
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.83 |
||
|
10
|
10
8W6-77519-00-00
Bolt
|
8W6-77519-00-00 |
— | ||
|
11
|
11
92907-05200-00 Washer |
92907-05200-00 |
from US $1.50 |
||
|
12
|
12
95307-05800-00 Nut |
95307-05800-00 |
from US $1.50 |
||
|
13
|
13
8V9-77595-00-00
Flap
|
8V9-77595-00-00 |
— | ||
|
14
|
14
90267-48086-00 Rivet, Blind (4.8X19 Black)4.8X19 BLACK |
90267-48086-00 |
from US $1.65 |
||
