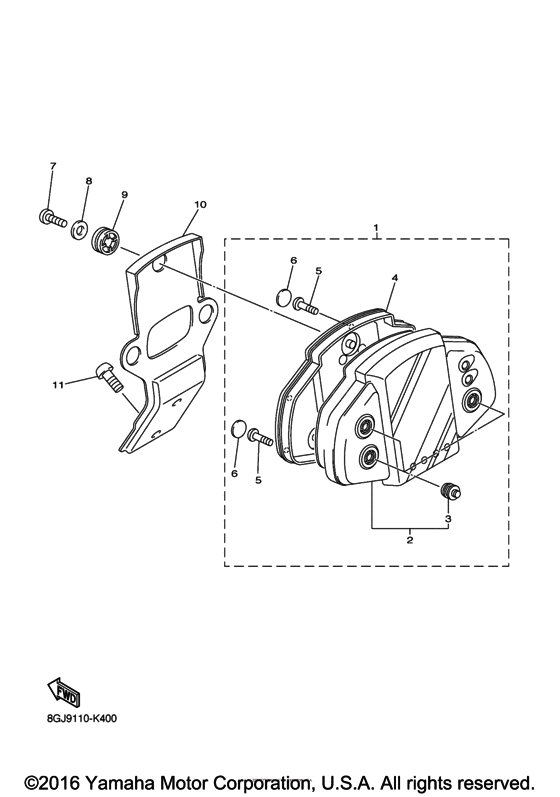

Meter Diagram Yamaha PZ50/ RPZ50 Venture Multi Purpose
- Model code
- 8GRM
- Engine Capacity
- 499
- Year
- 2017
- Sales region
- USA
- Model
- Venture Multi Purpose
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GN-83500-10-00 Speedometer CompleteＫＭ／Ｈ |
8GN-83500-10-00 |
from US $400.59 |
||
|
2
|
2
8GK-W835E-00-00 Case, Meter Upper |
8GK-W835E-00-00 |
from US $79.32 |
||
|
3
|
3
8GL-8357U-00-00 Rubber, Switch |
8GL-8357U-00-00 |
from US $2.39 |
||
|
4
|
4
8GC-W8357-00-00 Case, Speedometer Lower |
8GC-W8357-00-00 |
from US $47.48 |
||
|
5
|
5
5PW-8352S-00-00 Screw, Panel Ftting |
5PW-8352S-00-00 |
from US $1.80 |
||
|
6
|
6
8GC-21732-00-00 Seal 1 |
8GC-21732-00-00 |
from US $1.35 |
||
|
7
|
7
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
7
|
7
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.65 |
||
|
8
|
8
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.65 |
||
|
9
|
9
8GC-83513-00-00 Damper |
8GC-83513-00-00 |
from US $1.50 |
||
|
10
|
10
8GC-83519-00-00 Bracket, Meter |
8GC-83519-00-00 |
from US $14.51 |
||
|
11
|
11
92012-08016-00 Bolt, Button Head |
92012-08016-00 |
from US $1.50 |
||
