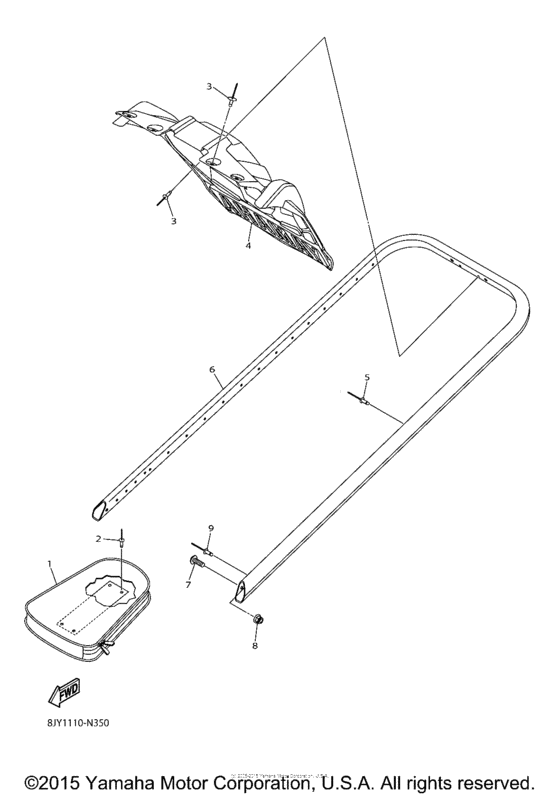

Bumper Diagram Yamaha SR10/ SRV10 SR Viper X-TX SE
- Model code
- 8JR3
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper X-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JW-F8441-00-00 Saddle Bag 1 |
8JW-F8441-00-00 |
US $48.82 |
||
|
2
|
2
8JP-RA518-00-00 Rivet, 9 |
8JP-RA518-00-00 |
US $6.30 |
||
|
3
|
3
8JP-RA524-00-00 Rivet, 1515 |
8JP-RA524-00-00 |
US $2.12 |
||
|
4
|
4
8JP-K7595-00-00 Flap |
8JP-K7595-00-00 |
US $66.06 |
||
| replacement | |||||
|
4
|
4
SMA-8JP77-59-BK Flp Snow Flap Bk |
SMA-8JP77-59-BK |
US $51.05 |
||
|
5
|
5
8JP-RA518-00-00 Rivet, 9UN |
8JP-RA518-00-00 |
US $6.30 |
||
|
6
|
6
8JY-K7541-00-00 Bumper, Rear 1UR FOR DPBSE |
8JY-K7541-00-00 |
US $101.84 |
||
|
6
|
6
8JX-K7541-20-00 Bumper, Rear 1UR FOR VRC1 |
8JX-K7541-20-00 |
US $109.01 |
||
| replacement | |||||
|
6
|
6
8LJ-K7541-00-00 BUMPER, REAR 1UR FOR VRC1 |
8LJ-K7541-00-00 |
US $109.01 |
||
|
7
|
7
8JP-RA260-00-00 Screw, M6X1.0X20M6X1.0X20 |
8JP-RA260-00-00 |
US $0.49 |
||
|
8
|
8
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $1.50 |
||
|
9
|
9
8JP-RA527-00-00 Rivet, 3/163/16 UN |
8JP-RA527-00-00 |
US $2.91 |
||
