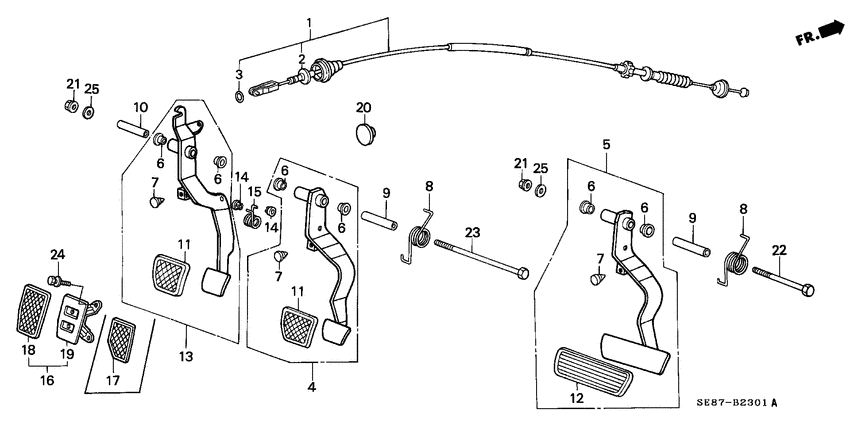

Clutch pedal/brake pedal Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-SE0-A02
Wire comp
|
22910-SE0-A02 |
— | ||
|
2
|
2
22916-SA0-000
Cap c
|
22916-SA0-000 |
— | ||
|
3
|
3
22917-634-000
Seal
|
22917-634-000 |
— | ||
|
4
|
4
46500-SE0-A01
Pedal assy
|
46500-SE0-A01 |
— | ||
|
6
|
6
46504-679-300 BushPEDAL |
46504-679-300 |
from US $5.37 |
||
|
7
|
7
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.59 |
||
|
8
|
8
46533-SE0-000
Spring
|
46533-SE0-000 |
— | ||
|
9
|
9
46535-SE0-000
Collar
|
46535-SE0-000 |
— | ||
|
10
|
10
46535-692-000 CollarPEDAL |
46535-692-000 |
US $6.86 |
||
|
11
|
11
46545-SA5-000 Cover, Pedal |
46545-SA5-000 |
from US $5.03 |
||
|
13
|
13
46900-SE0-A30
Pedal assy
|
46900-SE0-A30 |
— | ||
|
14
|
14
46902-SE0-930
Bush a
|
46902-SE0-930 |
— | ||
|
15
|
15
46907-SE0-930
Spring
|
46907-SE0-930 |
— | ||
|
20
|
20
75891-611-000 CoverDOOR SWITCH |
75891-611-000 |
from US $2.52 |
||
|
21
|
21
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
23
|
23
92201-10175-0J BoltHEX., 10X175 |
92201-10175-0J |
US $2.07 |
||
|
25
|
25
94101-10800 WasherPLAIN, 10MM |
94101-10800 |
from US $0.52 |
