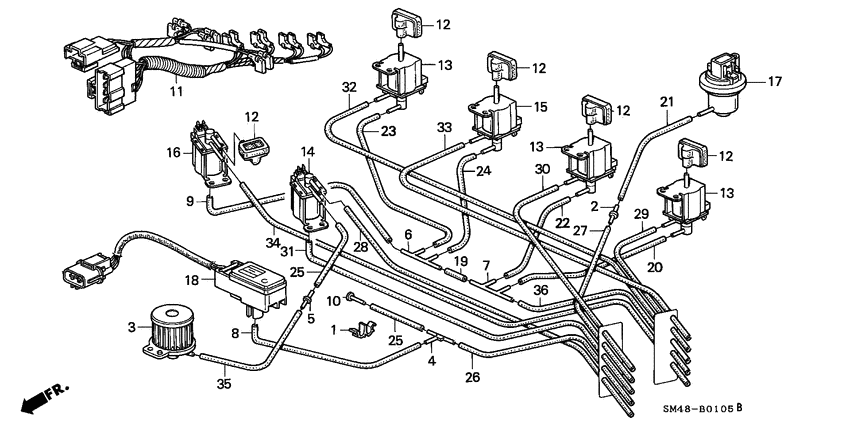

Control box tubing (CARB.) Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
17414-PC6-660 JointTWO WAY (3.5) |
17414-PC6-660 |
from US $2.45 |
||
|
3
|
3
18850-PH4-661
Filter assy
|
18850-PH4-661 |
— | ||
|
4
|
4
36010-PM3-004
Joint
|
36010-PM3-004 |
— | ||
|
5
|
5
36010-PT0-J11 JointTWO WAY (3.5-4.5) |
36010-PT0-J11 |
US $4.06 |
||
|
6
|
6
36011-PA6-004 JointFOUR WAY |
36011-PA6-004 |
US $6.16 |
||
|
7
|
7
36011-PT0-004
Joint
|
36011-PT0-004 |
— | ||
|
8
|
8
36013-PG7-661 HolderSOLENOID, 3.5MM |
36013-PG7-661 |
US $6.16 |
||
|
9
|
9
36016-PE1-671
Holder
|
36016-PE1-671 |
— | ||
|
10
|
10
36034-PM6-901 PlugSEALING |
36034-PM6-901 |
from US $1.93 |
||
|
11
|
11
36041-PT1-Q01
Cord assy
|
36041-PT1-Q01 |
— | ||
|
12
|
12
36138-PE0-004
Filter assy
|
36138-PE0-004 |
— | ||
|
13
|
13
36161-PH2-004
Valve assy.
|
36161-PH2-004 |
— | ||
|
14
|
14
36161-PT1-X01
Valve assy.
|
36161-PT1-X01 |
— | ||
|
15
|
15
36162-PE1-661
Valve assy.
|
36162-PE1-661 |
— | ||
|
16
|
16
36163-PJ7-003
Valve assy.
|
36163-PJ7-003 |
— | ||
|
17
|
17
36182-PT0-004
Switch assy
|
36182-PT0-004 |
— | ||
|
18
|
18
37830-PT0-003
Sensor assy
|
37830-PT0-003 |
— | ||
|
19
|
19
95005-350-351-0 Tube3.5X35(95005-35001-10M) |
95005-350-351-0 |
US $0.89 |
||
|
20
|
20
95005-350-501-0 Tube3.5X50(95005-35001-10M) |
95005-350-501-0 |
US $0.89 |
||
|
21
|
21
95005-350-501-7
Tube
|
95005-350-501-7 |
— | ||
|
22
|
22
95005-350-601-0 Tube3.5X60(95005-35001-10M) |
95005-350-601-0 |
US $1.18 |
||
|
23
|
23
95005-350-701-0 Tube3.5X70 (95005-35001-10M) |
95005-350-701-0 |
US $1.18 |
||
|
24
|
24
95005-350-751-0 Tube3.5X75 (95005-35001-10M) |
95005-350-751-0 |
US $1.18 |
||
|
25
|
25
95005-351-001-0 Tube3.5X100 (95005-35001-10M) |
95005-351-001-0 |
US $1.18 |
||
| replacement | |||||
|
25
|
25
95005-351-0010S Tube 35x100 |
95005-351-0010S |
US $1.18 |
||
|
26
|
26
95005-351-501-M Tube3.5X150 (95005-35001-10M) |
95005-351-501-M |
US $1.55 |
||
|
27
|
27
95005-351-601-7 Tube3.5X160 (95005-35001-10M) |
95005-351-601-7 |
US $2.37 |
||
|
28
|
28
95005-352-101-3 Tube3.5X210 (95005-35001-10M) |
95005-352-101-3 |
US $2.81 |
||
|
29
|
29
95005-352-401-L Tube3.5X240 (95005-35001-10M) |
95005-352-401-L |
US $2.81 |
||
|
30
|
30
95005-352-401-5 Tube3.5X240 (95005-35001-10M) |
95005-352-401-5 |
US $2.81 |
||
|
31
|
31
95005-352-601-2 Tube3.5X260 (95005-35001-10M) |
95005-352-601-2 |
US $3.26 |
||
|
32
|
32
95005-352-701-N Tube3.5X270 (95005-35001-10M) |
95005-352-701-N |
US $3.26 |
||
|
33
|
33
95005-352-901-E Tube3.5X290 (95005-35001-10M) |
95005-352-901-E |
US $3.26 |
||
|
34
|
34
95005-354-001-K Tube3.5X400 (95005-35001-10M) |
95005-354-001-K |
US $4.14 |
||
|
35
|
35
95005-450-401-0 Tube4.5X40 (95005-45001-10M) |
95005-450-401-0 |
US $0.89 |
||
|
36
|
36
95005-451-701-C Tube4.5X170 (95005-45001-10M) |
95005-451-701-C |
US $3.26 |
||
