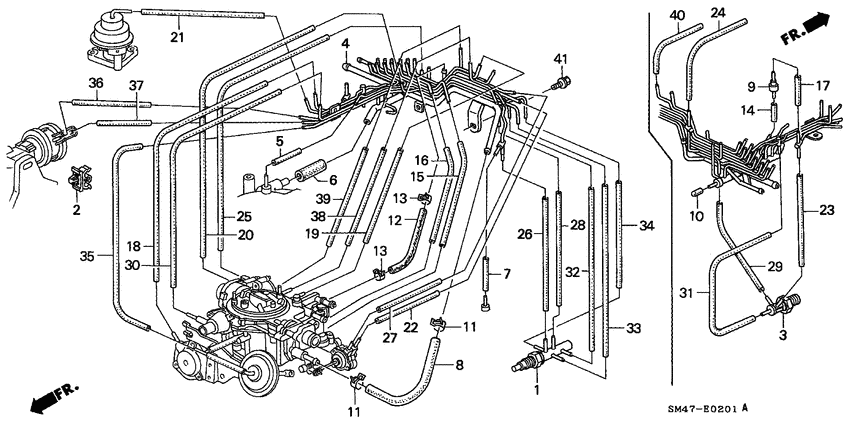

Install pipe/tubing (2) Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0
- area code
- KS
- left-hand drive
- +
- catalyst
- +
- made in japan
- +
- sunroof (glass)
- +
- heated seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17350-PT0-003
Valve assy.
|
17350-PT0-003 |
— | ||
|
2
|
2
17363-PE2-013
Clamp
|
17363-PE2-013 |
— | ||
|
3
|
3
17370-PT1-X01
Thermovalve
|
17370-PT1-X01 |
— | ||
|
4
|
4
17400-PT1-X00 PipeINSTALL |
17400-PT1-X00 |
US $86.40 |
||
|
5
|
5
17416-PM3-010
Tube
|
17416-PM3-010 |
— | ||
|
6
|
6
17417-PT0-000
Tube
|
17417-PT0-000 |
— | ||
|
7
|
7
17418-PT0-000
Tube
|
17418-PT0-000 |
— | ||
|
8
|
8
17736-PT0-000 HoseCANISTER VENT |
17736-PT0-000 |
US $24.06 |
||
|
9
|
9
36146-PH4-901
Valve
|
36146-PH4-901 |
— | ||
|
10
|
10
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $1.86 |
||
|
11
|
11
90682-SA0-671 ClampCANISTER HOSE |
90682-SA0-671 |
from US $2.96 |
||
|
12
|
12
95001-551-603-0
Tube
1501739 - |
95001-551-603-0 |
— | ||
|
12
|
12
95001-551-503-0
Tube
00000000 - 1501738 |
95001-551-503-0 |
— | ||
| replacement | |||||
|
12
|
12
95001-550-0160M Bulk tube,f 55x1m00000000 - 1501738 |
95001-550-0160M |
from US $9.32 |
||
|
13
|
13
95002-410-000-4 ClampTUBE (D10) |
95002-410-000-4 |
from US $0.74 |
||
|
14
|
14
95005-350-351-5 Tube3.5X35 (95005-35001-10M) |
95005-350-351-5 |
US $0.89 |
||
|
15
|
15
95005-350-751-F Tube3.5X75 (95005-35001-10M) 1501739 - |
95005-350-751-F |
US $1.18 |
||
|
15
|
15
95005-350-651-F Tube3.5X65 (95005-35001-10M) 00000000 - 1501738 |
95005-350-651-F |
US $1.18 |
||
|
16
|
16
95005-350-701-7 Tube3.5X70 (95005-35001-10M) |
95005-350-701-7 |
US $1.18 |
||
|
17
|
17
95005-350-801-5 Tube3.5X80 (95005-35001-10M) 00000000 - 1501738 |
95005-350-801-5 |
US $1.18 |
||
|
17
|
17
17326-PT1-X00
Tube
1501739 - |
17326-PT1-X00 |
— | ||
|
18
|
18
95005-350-801-6 Tube3.5X80 (95005-35001-10M) |
95005-350-801-6 |
US $1.18 |
||
|
19
|
19
95005-350-851-E Tube3.5X85 (95005-35001-10M) |
95005-350-851-E |
US $1.18 |
||
|
20
|
20
95005-350-851-R Tube3.5X85 (95005-35001-10M) |
95005-350-851-R |
US $1.18 |
||
|
21
|
21
95005-350-901-G Tube3.5X90 (95005-35001-10M) |
95005-350-901-G |
US $1.18 |
||
|
22
|
22
95005-350-851-N Tube3.5X85 (95005-35001-10M) 1501739 - |
95005-350-851-N |
US $1.18 |
||
|
22
|
22
95005-350-951-N Tube3.5X95 (95005-35001-10M) 00000000 - 1501738 |
95005-350-951-N |
US $1.18 |
||
|
23
|
23
95005-350-901-5 Tube3.5X90 (95005-35001-10M) |
95005-350-901-5 |
US $1.18 |
||
|
24
|
24
95005-350-951-H Tube3.5X95 (95005-35001-10M) |
95005-350-951-H |
US $1.18 |
||
|
25
|
25
95005-350-951-S Tube3.5X95 (95005-35001-10M) |
95005-350-951-S |
US $1.18 |
||
|
26
|
26
95005-350-951-6 Tube3.5X95 (95005-35001-10M) |
95005-350-951-6 |
US $1.18 |
||
|
27
|
27
95005-351-051-L Tube3.5X105 (95005-35001-10M) |
95005-351-051-L |
US $1.55 |
||
|
28
|
28
95005-351-051-S Tube3.5X105 (95005-35001-10M) |
95005-351-051-S |
US $1.55 |
||
|
29
|
29
95005-351-101-H Tube3.5X110 (95005-35001-10M) |
95005-351-101-H |
US $1.55 |
||
|
30
|
30
95005-351-101-Q Tube3.5X110 (95005-35001-10M) |
95005-351-101-Q |
US $1.55 |
||
|
31
|
31
95005-351-151-G Tube3.5X115 (95005-35001-10M) |
95005-351-151-G |
US $1.55 |
||
|
32
|
32
95005-351-451-H Tube3.5X145 (95005-35001-10M) |
95005-351-451-H |
US $1.55 |
||
|
33
|
33
95005-351-451-R Tube3.5X145 (95005-35001-10M) |
95005-351-451-R |
US $1.55 |
||
|
34
|
34
95005-351-651-Q Tube3.5X165 (95005-35001-10M) |
95005-351-651-Q |
US $2.37 |
||
|
35
|
35
95005-351-801-3 Tube3.5X180 (95005-35001-10M) |
95005-351-801-3 |
US $2.37 |
||
|
36
|
36
95005-352-601-2 Tube3.5X260 (95005-35001-10M) |
95005-352-601-2 |
US $3.26 |
||
|
37
|
37
95005-352-601-5 Tube3.5X260 (95005-35001-10M) |
95005-352-601-5 |
US $3.26 |
||
|
38
|
38
95005-450-751-0 Tube4.5X75 (95005-45001-10M) |
95005-450-751-0 |
US $1.55 |
||
|
39
|
39
95005-450-751-2
Tube
1501739 - |
95005-450-751-2 |
— | ||
|
39
|
39
95005-450-801-2 Tube4.5X80 (95005-45001-10M) 00000000 - 1501738 |
95005-450-801-2 |
US $1.55 |
||
|
40
|
40
95005-451-401-B Tube4.5X140 (95005-45001-10M) |
95005-451-401-B |
US $2.66 |
||
|
41
|
41
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
