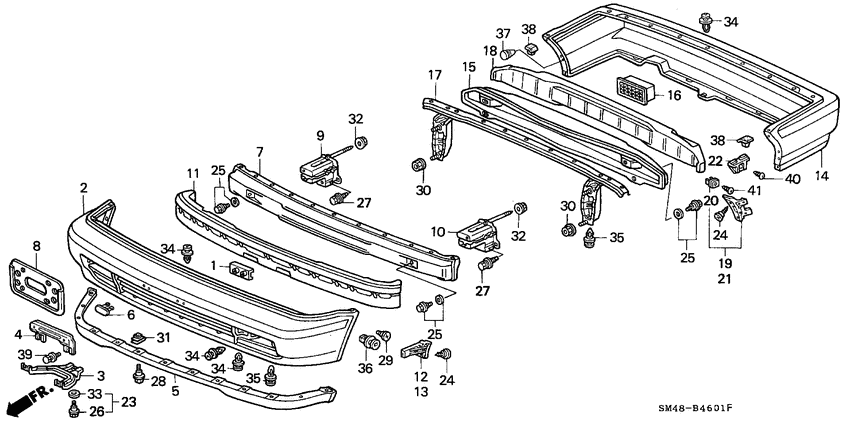

Bumpers (2) Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62521-SB2-000
Nut
|
62521-SB2-000 |
— | ||
|
2
|
2
71101-SM4-000
Face
|
71101-SM4-000 |
— | ||
|
3
|
3
71106-SM4-A00
Bracket
|
71106-SM4-A00 |
— | ||
|
4
|
4
71107-SM4-A00
Bracket
|
71107-SM4-A00 |
— | ||
|
5
|
5
71110-SM4-010
Spoiler
|
71110-SM4-010 |
— | ||
|
6
|
6
90672-SB3-661
Cap
|
90672-SB3-661 |
— | ||
|
7
|
7
71130-SM4-A00
Beam
|
71130-SM4-A00 |
— | ||
|
8
|
8
71145-SD4-670 FrameFR. LICENSE PLATE |
71145-SD4-670 |
US $16.26 |
||
|
9
|
9
71150-SM4-A01 ExtensionR. FR. BUMPER |
71150-SM4-A01 |
US $38.40 |
||
|
10
|
10
71160-SM4-A01 ExtensionL. FR. BUMPER |
71160-SM4-A01 |
US $38.40 |
||
|
11
|
11
71170-SM4-305
Absorber
|
71170-SM4-305 |
— | ||
|
12
|
12
71190-SM4-000
Slide
|
71190-SM4-000 |
— | ||
|
13
|
13
71195-SM4-000
Slide
|
71195-SM4-000 |
— | ||
|
14
|
14
71501-SM4-000
Face
|
71501-SM4-000 |
— | ||
|
15
|
15
71530-SM4-A00
Beam
|
71530-SM4-A00 |
— | ||
|
16
|
16
71531-SM4-A00
Gusset
|
71531-SM4-A00 |
— | ||
|
17
|
17
71540-SM4-A00
Beam comp
|
71540-SM4-A00 |
— | ||
|
18
|
18
71570-SM4-305
Absorber
|
71570-SM4-305 |
— | ||
|
19
|
19
71590-SM4-000
Slide
|
71590-SM4-000 |
— | ||
|
20
|
20
71593-SM4-003
Clip
|
71593-SM4-003 |
— | ||
|
21
|
21
71595-SM4-000
Slide
|
71595-SM4-000 |
— | ||
|
22
|
22
71598-SM4-003
Spacer
00000000 - 0C023778 |
71598-SM4-003 |
— | ||
|
22
|
22
71598-SL4-003
Spacer
0C023779 - |
71598-SL4-003 |
— | ||
|
23
|
23
90101-SE0-010 Bolt assy. bBUMPER 0C015743 - |
90101-SE0-010 |
US $3.91 |
||
|
23
|
23
90101-SE0-000 Bolt assy. bBUMPER 00000000 - 0C015742 |
90101-SE0-000 |
US $3.36 |
||
|
24
|
24
90103-SD4-000 ScrewTAPPING, 5X16 |
90103-SD4-000 |
US $1.85 |
||
|
25
|
25
90106-SM4-A00 BoltBUMPER BEAM |
90106-SM4-A00 |
US $3.57 |
||
|
26
|
26
90109-SE0-003 Bolt bBUMPER 0C015743 - |
90109-SE0-003 |
US $2.37 |
||
|
27
|
27
90110-SE7-000 Bolt-washer8X21 |
90110-SE7-000 |
US $1.40 |
||
|
28
|
28
90111-SM4-003 BoltBUMPER |
90111-SM4-003 |
from US $1.55 |
||
|
29
|
29
90112-SM4-003 BoltBUMPER |
90112-SM4-003 |
US $2.03 |
||
|
30
|
30
90302-SD2-003 Nut-washer8MM |
90302-SD2-003 |
US $1.82 |
||
|
31
|
31
90305-SM4-000 NutAIR SPOILER CLIP |
90305-SM4-000 |
from US $1.28 |
||
|
32
|
32
90312-SM4-000 Nut-washer8MM |
90312-SM4-000 |
US $2.38 |
||
|
33
|
33
90540-SA7-000 WasherBUMPER 0C015743 - |
90540-SA7-000 |
from US $1.47 |
||
|
34
|
34
91502-SM4-000 ClipBUMPER FACE (PO) |
91502-SM4-000 |
US $3.03 |
||
|
35
|
35
91504-SM4-000 ClipBUMPER FACE (SP) |
91504-SM4-000 |
US $1.82 |
||
|
36
|
36
91509-SM4-000
Clip
|
91509-SM4-000 |
— | ||
|
37
|
37
91602-SM4-000
Spacer
|
91602-SM4-000 |
— | ||
|
38
|
38
91603-SM4-000
Spacer
|
91603-SM4-000 |
— | ||
|
39
|
39
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
40
|
40
93901-15380 ScrewTAPPING, 5X16 00000000 - 0C023778 |
93901-15380 |
from US $0.37 |
||
| replacement | |||||
|
40
|
40
93901-15180 ScrewTAPPING, 5X10 00000000 - 0C023778 |
93901-15180 |
from US $0.37 |
||
|
41
|
41
93905-15480 ScrewTAPPING, 5X20 |
93905-15480 |
US $0.37 |
||
