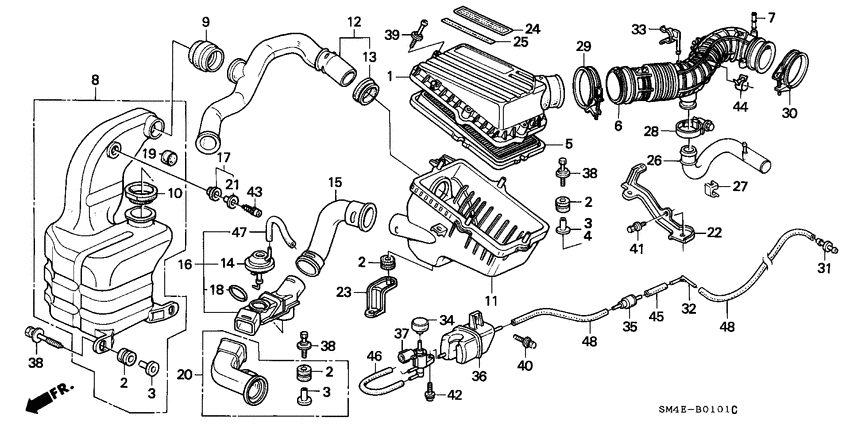

Air cleaner (PGM-FI) Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- catalyst
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-PT2-010
Cover comp.
|
17211-PT2-010 |
— | ||
|
2
|
2
17213-PT2-000 RubberAIR CLEANER CASE MOUNTING |
17213-PT2-000 |
US $2.17 |
||
|
3
|
3
17214-PT2-000 CollarAIR CLEANER MOUNTING |
17214-PT2-000 |
US $2.31 |
||
|
5
|
5
17220-PT2-000 Element assy.AIR CLEANER (TOYO) |
17220-PT2-000 |
US $35.84 |
||
|
6
|
6
17228-PT5-J00
Tube
|
17228-PT5-J00 |
— | ||
|
8
|
8
17230-PT2-010
Chamber assy
|
17230-PT2-010 |
— | ||
|
9
|
9
17232-PT2-000
Tube a
|
17232-PT2-000 |
— | ||
|
10
|
10
17233-PT2-000
Seal
|
17233-PT2-000 |
— | ||
|
11
|
11
17241-PT2-000
Case comp.
|
17241-PT2-000 |
— | ||
|
12
|
12
17242-PT2-010
Tube a
|
17242-PT2-010 |
— | ||
|
13
|
13
17243-PT2-000
Seal
|
17243-PT2-000 |
— | ||
|
14
|
14
17245-PT2-003
Diaphragm
|
17245-PT2-003 |
— | ||
|
15
|
15
17252-PT2-010
Tube a
|
17252-PT2-010 |
— | ||
|
16
|
16
17253-PT2-010
Valve comp.
|
17253-PT2-010 |
— | ||
|
17
|
17
17256-PT0-000
Rubber
|
17256-PT0-000 |
— | ||
|
18
|
18
17256-PT2-000 RingSEAL |
17256-PT2-000 |
US $3.71 |
||
|
19
|
19
17257-PT0-000 GrommetINTAKE |
17257-PT0-000 |
US $1.47 |
||
|
20
|
20
17258-PT2-010
Tube c
|
17258-PT2-010 |
— | ||
|
21
|
21
17259-PE0-661 CollarMOUNTING |
17259-PE0-661 |
US $2.03 |
||
|
22
|
22
17261-PT2-J00
Stay a
|
17261-PT2-J00 |
— | ||
|
23
|
23
17262-PT2-000
Stay b
|
17262-PT2-000 |
— | ||
|
24
|
24
17273-PT0-B00
Plate
|
17273-PT0-B00 |
— | ||
|
25
|
25
17274-PT4-G00
Label
|
17274-PT4-G00 |
— | ||
|
26
|
26
17281-PT4-G01
Tube
|
17281-PT4-G01 |
— | ||
|
27
|
27
17282-PT2-000
Clamp
|
17282-PT2-000 |
— | ||
|
28
|
28
17284-PT2-003 ClampTUBE, 44MM |
17284-PT2-003 |
US $6.86 |
||
|
29
|
29
17312-PH3-003
Clamp
|
17312-PH3-003 |
— | ||
|
30
|
30
17316-PH3-003 ClampAIR FLOW TUBE (70) |
17316-PH3-003 |
US $4.06 |
||
|
31
|
31
17414-PC6-660 JointTWO WAY (3.5) |
17414-PC6-660 |
from US $2.45 |
||
|
32
|
32
18736-PA6-004
Joint
|
18736-PA6-004 |
— | ||
|
34
|
34
36138-PM1-G01
Filter assy
|
36138-PM1-G01 |
— | ||
|
35
|
35
36145-PA6-661
Valve
|
36145-PA6-661 |
— | ||
| replacement | |||||
|
35
|
35
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
36
|
36
36351-PT2-003
Tank comp.
|
36351-PT2-003 |
— | ||
|
37
|
37
36352-PT2-003
Valve assy.
|
36352-PT2-003 |
— | ||
|
38
|
38
90010-PT2-000
Bolt-washer
|
90010-PT2-000 |
— | ||
|
39
|
39
90091-PE2-000 Bolt-washer5X25 |
90091-PE2-000 |
from US $4 |
||
|
39
|
39
90091-P36-000 Bolt-washer5X28 |
90091-P36-000 |
from US $2.44 |
||
|
40
|
40
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
41
|
41
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
42
|
42
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
43
|
43
93903-45480 ScrewTAPPING, 5X20 |
93903-45480 |
from US $0.37 |
||
|
44
|
44
95002-413-000-4 ClampTUBE(D13) |
95002-413-000-4 |
from US $1.04 |
||
|
45
|
45
95005-350-351-8 Tube3.5X35 (95005-35001-10M) |
95005-350-351-8 |
US $0.89 |
||
|
46
|
46
95005-351-001-8 Tube3.5X100 (95005-35001-10M) |
95005-351-001-8 |
US $1.18 |
||
|
47
|
47
95005-351-251-8 Tube3.5X125 (95005-35001-10M) |
95005-351-251-8 |
US $1.55 |
||
|
48
|
48
95005-352-651-8 Tube3.5X265 (95005-35001-10M) |
95005-352-651-8 |
US $3.26 |
||
