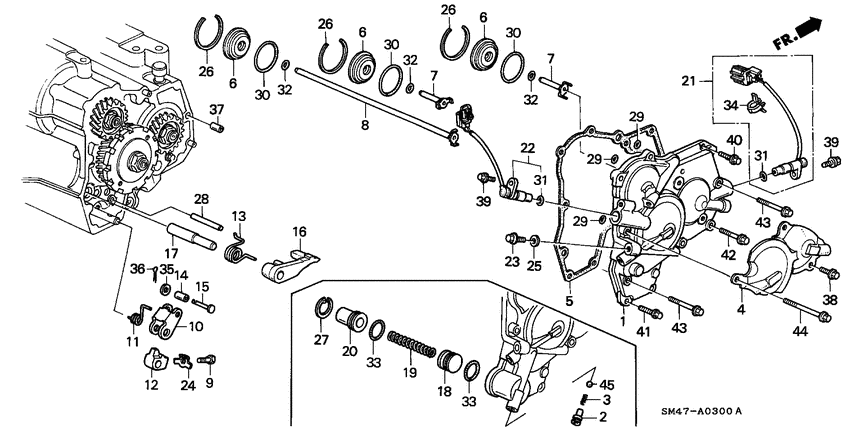

Right side cover Diagram Honda ACCORD
- Year
- 1991
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0
- area code
- KS
- left-hand drive
- +
- catalyst
- +
- made in japan
- +
- heated seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21240-PX3-030 Cover comp.R. SIDE |
21240-PX3-030 |
US $145.92 |
||
|
2
|
2
21243-PX4-003
Screw
|
21243-PX4-003 |
— | ||
|
3
|
3
21244-PF4-010
Spring
|
21244-PF4-010 |
— | ||
|
4
|
4
21271-PX4-000
Protector
|
21271-PX4-000 |
— | ||
|
5
|
5
21812-PX4-941 PackingR. SIDE COVER |
21812-PX4-941 |
US $14.36 |
||
|
6
|
6
22713-PX4-000 Guide aFEED PIPE |
22713-PX4-000 |
US $2.52 |
||
|
7
|
7
22715-PX4-000 Pipe comp. bFEED |
22715-PX4-000 |
US $5.88 |
||
|
8
|
8
22720-PX4-000
Pipe comp. c
|
22720-PX4-000 |
— | ||
|
9
|
9
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
10
|
10
24532-PX4-000 LeverPARKING BRAKE |
24532-PX4-000 |
US $8.82 |
||
|
11
|
11
24535-PX4-000
Spring
|
24535-PX4-000 |
— | ||
|
12
|
12
24538-PA9-003 StopperPARKING BRAKE (2) |
24538-PA9-003 |
US $29.77 |
||
|
12
|
12
24537-PA9-003
Stopper
|
24537-PA9-003 |
— | ||
|
12
|
12
24539-PA9-003
Stopper
|
24539-PA9-003 |
— | ||
|
13
|
13
24552-PX4-000
Spring
|
24552-PX4-000 |
— | ||
|
14
|
14
24553-PN6-000 RollerPARKING BRAKE |
24553-PN6-000 |
from US $2.59 |
||
|
15
|
15
24555-PN6-000 PinROLLER, 6MM |
24555-PN6-000 |
from US $3.36 |
||
|
16
|
16
24561-PX4-020 PawlPARKING BRAKE |
24561-PX4-020 |
US $25.86 |
||
|
17
|
17
24562-PX4-000
Shaft
|
24562-PX4-000 |
— | ||
|
18
|
18
27551-PX3-000 PistonLOW HOLD ACCUMULATOR |
27551-PX3-000 |
US $13.86 |
||
|
19
|
19
27552-PX3-003
Spring
|
27552-PX3-003 |
— | ||
|
20
|
20
27553-PX3-000
Cover
|
27553-PX3-000 |
— | ||
|
23
|
23
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
24
|
24
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
25
|
25
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.48 |
||
|
26
|
26
90602-PX4-000 Circlip bINTERNAL, 47MM |
90602-PX4-000 |
from US $1.40 |
||
|
27
|
27
90606-PX3-000
Circlip
|
90606-PX3-000 |
— | ||
|
28
|
28
90701-639-000 Dowel pin8X55 |
90701-639-000 |
US $2.59 |
||
|
29
|
29
91301-PC9-004 O-ring7.7X2.3 (NOK) |
91301-PC9-004 |
US $3.01 |
||
| replacement | |||||
|
29
|
29
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
29
|
29
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
30
|
30
91305-PX4-003 O-ring40X1.9 (NOK) |
91305-PX4-003 |
from US $3.09 |
||
|
32
|
32
91311-PA9-003 O-ring7.7X1.9 (ARAI) |
91311-PA9-003 |
US $3.32 |
||
| replacement | |||||
|
32
|
32
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
32
|
32
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
33
|
33
91317-PX3-003
O-ring
|
91317-PX3-003 |
— | ||
|
35
|
35
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
36
|
36
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
37
|
37
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
38
|
38
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
40
|
40
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
41
|
41
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
42
|
42
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
43
|
43
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
44
|
44
95701-060-500-8 BoltFLANGE, 6X50 |
95701-060-500-8 |
from US $0.74 |
||
|
45
|
45
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
||
