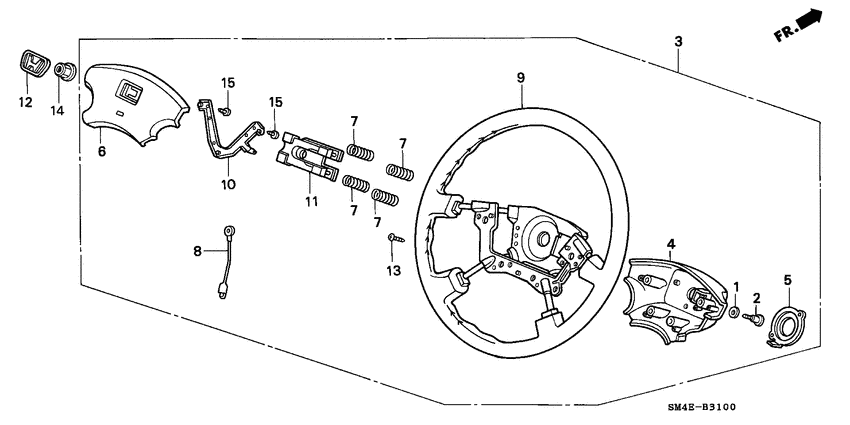

Steering wheel (LEATHER) Diagram Honda ACCORD
- Year
- 1993
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- catalyst
- +
- made in japan
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53153-SA0-004
Washer
|
53153-SA0-004 |
— | ||
|
2
|
2
53154-SB3-004
Screw
|
53154-SB3-004 |
— | ||
|
3
|
3
78500-SM4-N54ZE
Wheel assy.
|
78500-SM4-N54ZE |
— | ||
|
4
|
4
78504-SM4-014ZD
Cover
|
78504-SM4-014ZD |
— | ||
|
5
|
5
78505-SM4-004
Ring
|
78505-SM4-004 |
— | ||
|
6
|
6
78506-SM4-004ZD
Cover
|
78506-SM4-004ZD |
— | ||
|
7
|
7
78508-SM4-004
Spring
|
78508-SM4-004 |
— | ||
|
8
|
8
78509-SM4-004
Cord
|
78509-SM4-004 |
— | ||
|
9
|
9
78512-SM4-N02ZD
Wheel
|
78512-SM4-N02ZD |
— | ||
|
10
|
10
78515-SM4-004
Plate
|
78515-SM4-004 |
— | ||
|
11
|
11
78520-SM4-900
Damper
|
78520-SM4-900 |
— | ||
|
12
|
12
78531-SM4-G00
Emblem
|
78531-SM4-G00 |
— | ||
|
13
|
13
90171-SL4-003 Screw-washer4X10 |
90171-SL4-003 |
US $1.82 |
||
|
14
|
14
90380-SB2-003 NutSELF-LOCK (OHASHI) |
90380-SB2-003 |
from US $2.28 |
||
|
15
|
15
93911-24120 ScrewTAPPING, 4X10 (PO) |
93911-24120 |
from US $0.37 |
