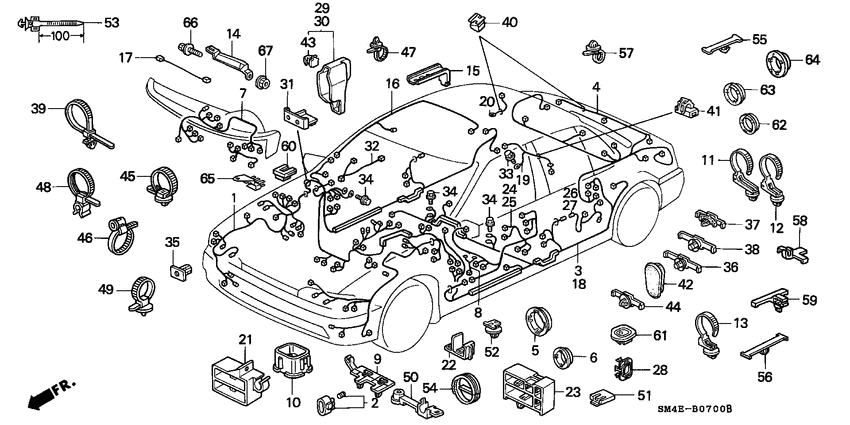

Wire harness Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0I
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- catalyst
- +
- made in japan
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-SM4-D13
Harness
|
32100-SM4-D13 |
— | ||
|
2
|
2
32102-SM4-970
Cap
|
32102-SM4-970 |
— | ||
|
3
|
3
32107-SM4-R62
Harness
|
32107-SM4-R62 |
— | ||
|
4
|
4
32108-SM4-G12
Harness
|
32108-SM4-G12 |
— | ||
|
5
|
5
32109-SM4-003
Ring
|
32109-SM4-003 |
— | ||
|
6
|
6
32109-SM4-901
Ring
|
32109-SM4-901 |
— | ||
|
7
|
7
32117-SM4-G92
Harness
|
32117-SM4-G92 |
— | ||
|
9
|
9
32128-SM4-A01
Holder
|
32128-SM4-A01 |
— | ||
|
11
|
11
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
12
|
12
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
13
|
13
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
14
|
14
32135-SM4-A00
Stay
|
32135-SM4-A00 |
— | ||
|
15
|
15
32143-SM4-000
Bracket
|
32143-SM4-000 |
— | ||
|
16
|
16
32156-SM4-A01
Cord
|
32156-SM4-A01 |
— | ||
|
18
|
18
32158-SM4-R60
Harness
|
32158-SM4-R60 |
— | ||
|
19
|
19
32170-SM4-010
Cord
|
32170-SM4-010 |
— | ||
|
20
|
20
32202-SH4-000
Cord
|
32202-SH4-000 |
— | ||
|
21
|
21
32311-SM4-A01
Holder
|
32311-SM4-A01 |
— | ||
|
22
|
22
32312-SM4-013 HolderCOUPLER |
32312-SM4-013 |
US $4.34 |
||
|
24
|
24
32751-SM4-G12
Harness
|
32751-SM4-G12 |
— | ||
|
25
|
25
32752-SM4-G13
Harness
|
32752-SM4-G13 |
— | ||
|
26
|
26
32753-SM4-A01
Harness
|
32753-SM4-A01 |
— | ||
|
27
|
27
32754-SM4-A01
Harness
|
32754-SM4-A01 |
— | ||
|
28
|
28
32758-SE7-300
Grommet
|
32758-SE7-300 |
— | ||
|
29
|
29
32760-SM4-010
Protector
|
32760-SM4-010 |
— | ||
|
30
|
30
32765-SM4-010
Protector
|
32765-SM4-010 |
— | ||
|
33
|
33
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
34
|
34
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
35
|
35
90602-SB2-003
Clip
|
90602-SB2-003 |
— | ||
|
36
|
36
90627-SA5-003 ClipWIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) |
90627-SA5-003 |
from US $1.82 |
||
|
37
|
37
90667-SB2-003 ClipWIRE HARNESS (GRAY) (HARNESS TAPING) (50MM) |
90667-SB2-003 |
US $1.54 |
||
|
38
|
38
90672-SA0-003 StrapCABLE, 118MM(BLACK) |
90672-SA0-003 |
from US $3.26 |
||
|
39
|
39
90676-SA8-003 BandWIRE HARNESS, 150MM (BLUE) |
90676-SA8-003 |
from US $2.24 |
||
|
40
|
40
90681-SD4-003 ClipWIRE HARNESS |
90681-SD4-003 |
US $1.96 |
||
|
41
|
41
90691-SA0-003
Clip
|
90691-SA0-003 |
— | ||
|
43
|
43
91504-SM4-003
Clip
|
91504-SM4-003 |
— | ||
|
44
|
44
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
45
|
45
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
46
|
46
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $2.52 |
||
|
47
|
47
91548-SF4-003 BandHARNESS (WITH SEAL) (WHITE) (93.5MM) |
91548-SF4-003 |
US $4.48 |
||
|
49
|
49
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
50
|
50
91552-SD2-003
Clip
|
91552-SD2-003 |
— | ||
|
51
|
51
91554-SM4-003 HolderBRACKET (RED) |
91554-SM4-003 |
from US $2.52 |
||
|
52
|
52
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
53
|
53
91556-SM4-003 ClipBAND (BLACK) (100MM) |
91556-SM4-003 |
US $2.31 |
||
|
54
|
54
91559-SE0-003 ClipWIRE HARNESS (23.2MM) |
91559-SE0-003 |
US $3.15 |
||
|
55
|
55
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
56
|
56
91566-SM4-003 ClipWIRE HARNESS SEAL (WITH SEAL) |
91566-SM4-003 |
US $3.36 |
||
|
57
|
57
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
62
|
62
91642-SM4-003 GrommetWIRE HARNESS (20MM) (WHITE) |
91642-SM4-003 |
US $1.68 |
||
|
63
|
63
91643-SM4-003 GrommetWIRE HARNESS (28MM) (WHITE) |
91643-SM4-003 |
US $1.47 |
||
|
65
|
65
91763-SH3-003 BarJOINT (6P) |
91763-SH3-003 |
US $11.56 |
||
|
66
|
66
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
67
|
67
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
